ZMID5202 Inductive Arc Application Module with PWM Output
ページセクションへ移動：
概要
説明

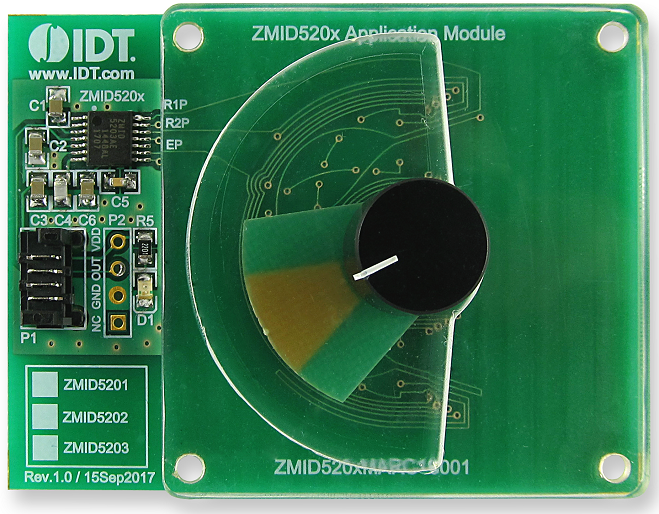

The ZMID5202MARC is an inductive arc position sensor module including sensor PCB, target and target holder.
NOTE: This module is pre-programmed and characterized. For changing programming options, such as motion range or diagnostic settings, the ZMID communication board (ZMID-COMBOARD) is required.
特長
- Contactless
- High-resolution arc position measurement
- Digital PWM output
- Strayfield-immune
