The ISL8024DEMO2Z is a low-noise power module to power the high-speed data converters on Xilinx RFSoCs. It is used as a power module that plugs into an application board.

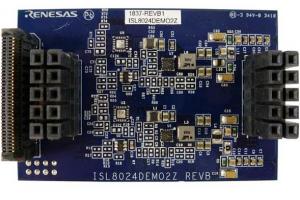

ISL8024DEMO2Z Demonstration Board
ISL8024DEMO2Z Demonstration Board
  • Three input voltage sources: 5.0V, 3.3V, and 1.8V
  • Five output voltages: ADC_AVCC, ADC_AVCCAUX, DAC_AVCC, DAC_AVTT, and DAC_AVCCAUX
  • PMBus interface that can digitally control the voltage set-point and margining of the DAC_AVTT rail
  • All rails have differential point-of-load voltage sensing
  • Additional low-pass filter to reduce output voltage ripple related to the switching regulator while maintaining high efficiency

アプリケーション

  • DC/DC POL modules
  • μC/µP, FPGA and DSP power
  • Plug-in DC/DC modules for routers and switchers
  • Portable instruments
  • Test and measurement systems
  • Li-ion battery powered devices
