概要
説明
The ISL70003ASEH is an improved version of the ISL70003SEH regulator with both tighter load regulation (<0.3% typical) and a higher output current rating of 9A. Operating over an input voltage range of 3.0V to 13.2V with integrated low rDS(ON) MOSFETs makes this monolithic solution highly efficient. Also, a tightly regulated output voltage is possible, which is externally adjustable from 0.6V to ~90% of the input voltage. Continuous output load current capability is 9A for TJ ≤ +125 °C and 6A for TJ ≤ +150 °C. The ISL70003ASEH uses voltage mode control architecture with feed-forward and switches at a selectable frequency of 500kHz or 300kHz. Loop compensation is externally adjustable to allow for an optimum balance between stability and output dynamic performance. The device features two logic-level disable inputs that can be used to inhibit pulses on the phase (LXx) pins to maximize efficiency based on the load current. The ISL70003ASEH also supports DDR applications and contains a buffer amplifier for generating the VREF voltage. High integration, best-in-class radiation performance and a feature-filled design make the ISL70003ASEH an ideal choice to power many of today’s small form-factor applications.

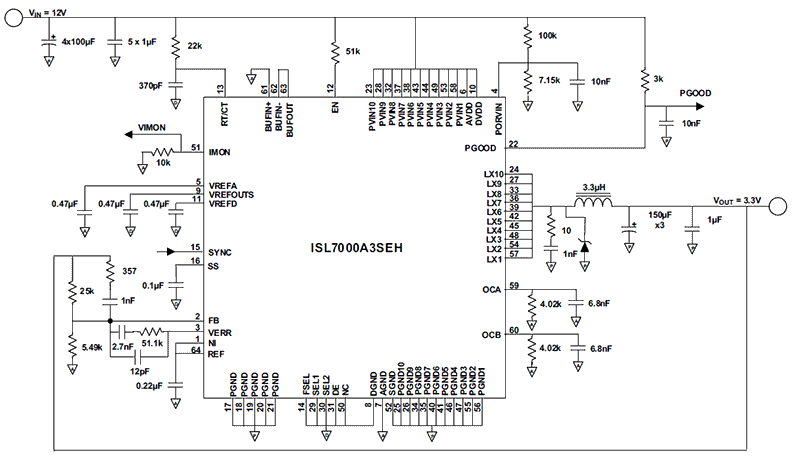

特長
- Acceptance tested to 50krad(Si) (LDR) wafer-by-wafer
- ±1% reference voltage over line, temperature, and radiation
- Integrated MOSFETs 31mΩ PFET/21mΩ NFET; 95% peak efficiency
- Externally adjustable loop compensation
- Supports DDR applications (VTT tracks VDDQ/2)
- Grounded lid eliminates charge build up
- IMON pin for output current monitoring
- Adjustable analog soft-start
- Diode emulation for increased efficiency at light loads
- 500kHz or 300kHz operating frequency
- Monotonic start-up into prebiased load
- Full military temperature range operation
- TA = -55 °C to +125 °C
- TJ = -55 °C to +150 °C
- Radiation Acceptance (See TID Report)
- High dose rate (50-300rad(Si)/s): 100krad(Si)
- Low dose rate (0.01rad(Si)/s): 50krad(Si)
- SEE hardness (See SEE report)
- SEB and SEL LETTH: 86.4MeV•cm2/mg
- SET at LET 86.4MeV•cm2/mg: < ±3% ΔVOUT
- SEFI LETTH: 60MeV•cm2/mg
- Electrically screened to DLA SMD 5962-14203
製品比較
アプリケーション
設計・開発
ソフトウェア／ツール
ソフトウェア／ツール
| Software title
|
Software type
|
会社名
|
|---|---|---|
| iSim:PEオフラインシミュレーションツール iSim Personal Edition（iSim：PE）は、プロジェクトの早い段階で設計サイクルを速め、プロジェクト初期のリスクを低減し、現在のみならず次世代の設計に耐えうる部品を選定します。
|
Simulator | ルネサス |
1件
|
||
ボード＆キット
Evaluation
ISL70003ASEHEV1Z
アクティブ
Rad Hard 9A Buck Regulator Evaluation Board
The ISL70003ASEHEV1Z evaluation board is designed to evaluate the performance of the ISL70003ASEH, a TID and SEE hardened 9A synchronous buck regulator IC with integrated MOSFETs intended for space applications.
The ISL70003ASEHEV1Z board accepts a nominal input voltage of 12V and provides a...
Recommended Documents:
Evaluation
ISL70003ASEHEV2Z
アクティブ
Rad Hard 9A Buck Regulator Small Form Factor Evaluation Board
The ISL70003ASEHEV2Z small form factor evaluation board is used to evaluate the performance of the ISL70003ASEH, a TID and SEE hardened 9A synchronous buck regulator IC with integrated MOSFETs intended for space applications. The board is designed to demonstrate the performance of the...
Recommended Documents:
リファレンス・デザイン
ISLRTG4DEMO1Z
アクティブ
Renesas Radiation Hardened Power Solution for RTG4 FPGA
Over the last decade, satellites and spacecraft have seen an exponential increase in the need for onboard data processing and storage demands. Additionally, major satellite manufacturers have recently announced their latest satellites to be modular, fully digital, and capable of in-orbit...
Demonstration
ISLVERSALDEMO2Z
アクティブ
Power Management Reference Design for AMD Versal XQRVC1902
The ISLVERSALDEMO2Z demo board provides the power management for the AMD Xilinx Space Grade Versal ACAP AI Core VC1902 using Renesas' Radiation Hardened Power Management devices. The Versal ACAP system requires various supply rails, including the core, digital, analog, and DDR memory. The...
Recommended Documents:
Evaluation
ISL73007SEHEV2Z
アクティブ
Evaluation Board for ISL73007SEH (12VIN to 3.3V-1.2V output)
The ISL73007SEHEV2Z evaluation board features the ISL73007SEH buck regulator. The IC is a small footprint radiation hardened POL designed for critical low power applications.
The ISL73007SEH is operational over 3V to 18V integrating both high-side and low-side power FETs and switches at a...
Recommended Documents:
Evaluation
ISL73007SEHEV3Z
アクティブ
Evaluation Board for ISL73007SEH (12VIN to 5V output)
The ISL73007SEHEV3Z evaluation board features the ISL73007SEH buck regulator. This IC is a small footprint radiation hardened POL designed for critical low power applications.
The ISL73007SEH is operational over 3V to 18V integrating both high-side and low-side power FETs and switches at a...
Recommended Documents:
Evaluation
ISL73007SEHEVAL1Z
アクティブ
Evaluation Board for ISL73007SEH (12VIN to 3.3V output)
The ISL73007SEHEVAL1Z evaluation board features the ISL73007SEH buck regulator. This IC is a small footprint radiation hardened POL designed for critical low power applications.
The ISL73007SEH is operational over 3V to 18V integrating both high-side and low-side power FETs and switches at a...
Recommended Documents:
モデル
ECADモデル
SamacSysの回路図シンボル、PCBフットプリント、および3D CADモデルは、製品オプションテーブルのCADモデルリンクをクリックすることで参照できます。シンボルまたはモデルが対応していない場合は、SamacSysに直接リクエスト可能です。
