概要
説明

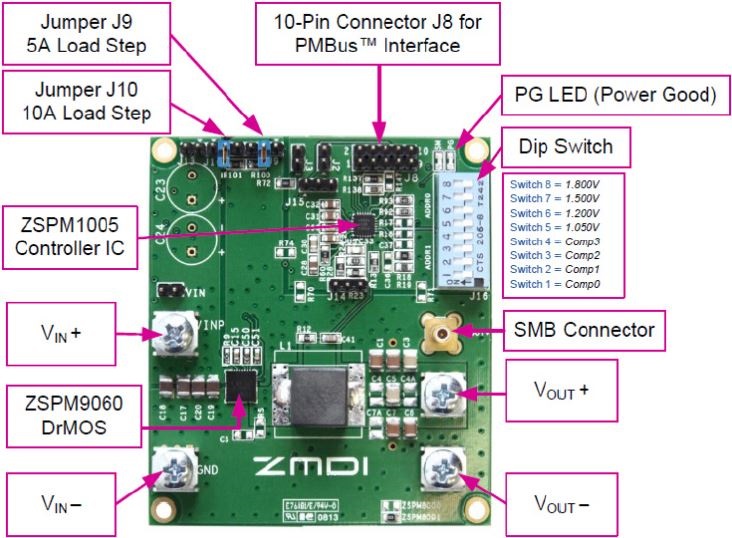

The ZSPM8001-KIT supports evaluation of DC/DC point-of-load (POL) applications. The kit incorporates the ZSPM1005 digital PWM controller IC and the ZSPM9060 DrMOS power output stage to form a "smart" buck converter (a.k.a. step-down DC-to-DC converter). The ZSPM8001-KIT Evaluation Kit hardware functions with the Pink Power Designer™ Graphical User Interface (GUI), which is used for communication and programming of the ZSPM1005. The GUI requires the MATLAB® runtime environment. The GUI software and runtime environment are available for download.
The kit includes the PMBus™ Communication Interface, which provides the interface between the ZSPM8001 Evaluation Kit and the user's computer.
特長
- ZSPM8001 Evaluation Board with one ZSPM1005 sample and one ZSPM9060 sample mounted
- PMBus™ Communication Interface
- USB Cable
アプリケーション
ドキュメント
ピックアップ
ログイン後、ご登録が可能となります。
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日時 |
| マニュアル－開発ツール | PDF 1.98 MB | |
| マニュアル－開発ツール | PDF 459 KB | |
| マニュアル－開発ツール | PDF 1.29 MB | |
3件
|
||
設計・開発
ソフトウェア／ツール
関連ボード＆キット
Evaluation
ZSPM8xxx-COMM
アクティブ
Communication Interface for ZSPM2000 and Select ZSPM8xxx Evaluation Kits
The PMBus™ Communication Interface (CI) provides the interface between the Evaluation Board and the user's computer for the ZSPM2000 Evaluation Kit and select ZSPM8xxx Evaluation Kits. It is included in the kits and can also be ordered separately.
