1µA Supply-Current, +3V to +5.5V, 250kbps, RS-232 Transmitters/Receivers
Jump to Page Section:
Overview
Description

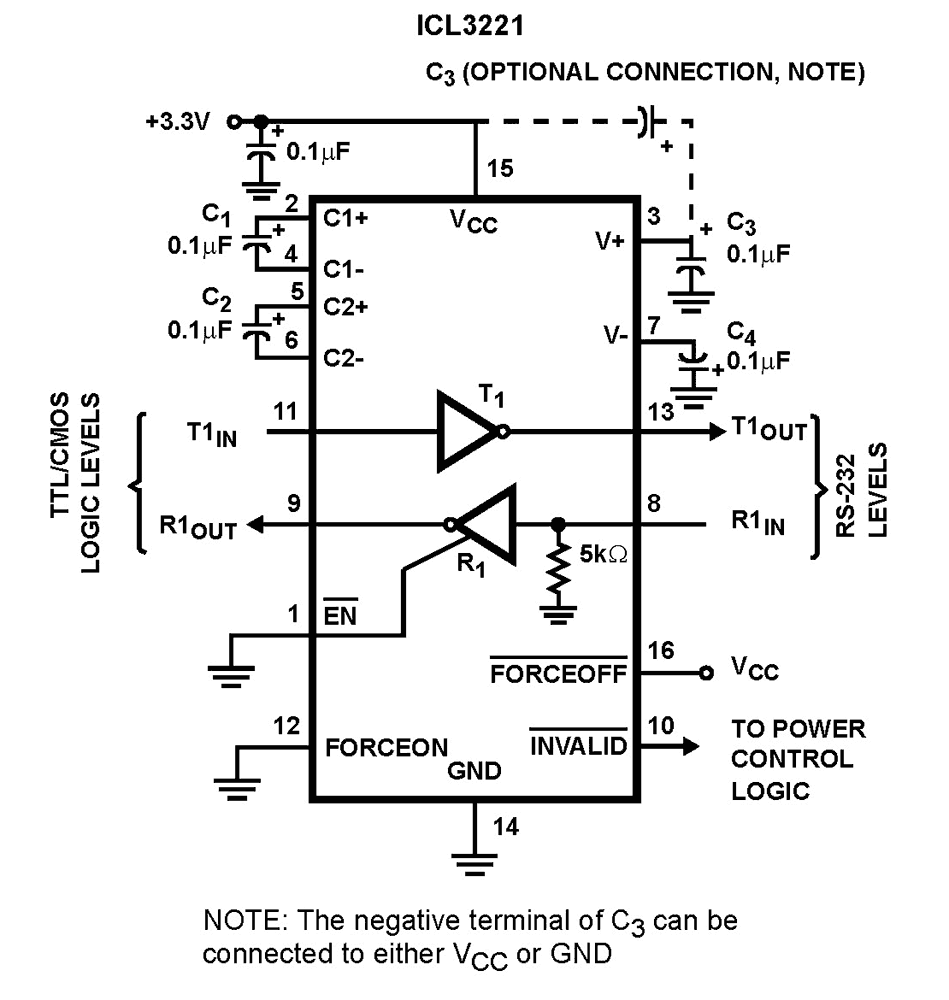

The ICL3221, ICL3222, ICL3223, ICL3232, ICL3241, ICL3243 (ISL32xx) devices are 3. 0V to 5. 5V powered RS-232 transmitters/receivers that meet ElA/TIA-232 and V. 28/V. 24 specifications, even at VCC = 3. 0V. Targeted applications are PDAs, notebook, and laptop computers where the low operational power consumption and even lower standby power consumption are critical. Efficient on-chip charge pumps, coupled with manual and automatic power-down functions (except for the ICL3232), reduce the standby supply current to a 1µA trickle. Small footprint packaging, and the use of small, low value capacitors ensure board space savings as well. Data rates greater than 250kbps are ensured at worst case load conditions. This family is fully compatible with 3. 3V only systems, mixed 3. 3V and 5. 0V systems, and 5. 0V only systems. The ICL324x are 3-driver, 5-receiver devices that provide a complete serial port suitable for laptop or notebook computers. Both devices also include noninverting always-active receivers for “wake-up” capability. The ICL3221, ICL3223 and ICL3243 feature an automatic powerdown function that powers down the on-chip power-supply and driver circuits. Power-down occurs when an attached peripheral device is shut off or the RS-232 cable is removed, conserving system power automatically without changes to the hardware or operating system. These devices power up again when a valid RS-232 voltage is applied to any receiver input.
Features
- RoHS Compliant
- 15kV ESD protected (Human Body Model)
- Drop-in replacements for MAX3221, MAX3222, MAX3223, MAX3232, MAX3241, MAX3243, SP3243
- ICL3221 is a low-power, pin compatible upgrade for 5V MAX221
- ICL3222 is a low-power, pin compatible upgrade for 5V MAX242, and SP312A
- ICL3232 is a low-power upgrade for HIN232/ICL232 and pin compatible competitor devices
- RS-232 compatible with VCC = 2.7V
- Meets EIA/TIA-232 and V.28/V.24 specifications at 3V
- Latch-up free
- On-chip voltage converters require only four external 0.1µF capacitors
- Manual and automatic powerdown features (except ICL3232)
- Assured mouse driveability (ICL324x only)
- Receiver hysteresis for improved noise immunity
- Assured minimum data rate : 250kbps
- Assured minimum slew rate : 6V/ms
- Wide power supply range : single +3V to +5.5V
- Low supply current in powerdown state :1µA
Applications
Applications
- Any System Requiring RS-232 Communication Ports Battery Powered, Hand-Held, and Portable Equipment Laptop Computers, Notebooks, Palmtops Modems, Printers and other Peripherals Digital Cameras Cellular/Mobile Phones
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF875 KB
|
Datasheet
|
||
PDF365 KB
|
Application Note
|
||
PDF207 KB
|
Application Note
|
||
PDF474 KB
|
Application Note
|
||
PDF178 KB
|
Application Note
|
||
PDF395 KB
|
Application Note
|
||
PDF513 KB
|
Application Note
|
||
PDF443 KB
|
Application Note
|
||
PDF582 KB
|
Application Note
|
||
PDF440 KB
|
Application Note
|
||
PDF338 KB
|
Application Note
|
||
PDF365 KB
|
Application Note
|
||
PDF375 KB
|
Application Note
|
||
PDF372 KB
|
Application Note
|
||
Brochure
|
|||
PDF2.95 MB
|
Brochure
|
||
PDF388 KB
|
End Of Life Notice
|
||
PDF208 KB
|
Price Increase Notice
|
||
PDF363 KB
|
Product Advisory
|
||
PDF132 KB
|
Product Change Notice
|
||
PDF142 KB
|
Product Change Notice
|
||
PDF78 KB
|
Product Change Notice
|
||
PDF223 KB
|
Product Change Notice
|
||
PDF98 KB
|
Product Change Notice
|
||
PDF152 KB
|
Product Change Notice
|
||
PDF86 KB
|
Product Change Notice
|
||
PDF49 KB
|
Product Change Notice
|
||
PDF188 KB
|
Technical Brief
|
||
White Paper
|
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
Pkg. Type |
Carrier Type |
MOQ |
Buy / Sample |
|---|---|---|---|---|
| SOICN | Tube | 1920 | Get Samples, | |
| SOICN | Reel | 2500 | ||
| PDIP | Tube | 2000 | Get Samples, | |
| TSSOP | Tube | 3840 | Get Samples, | |
ICL3232CVZ-T Active Samples Available |
TSSOP | Reel | 2500 | Get Samples, |
| SOICN | Tube | 3840 | Get Samples, | |
| SOICN | Reel | 2500 | ||
| TSSOP | Tube | 3840 | Get Samples, | |
| TSSOP | Reel | 2500 | ||
ICL3232IVZ-T7A Active Samples Available |
TSSOP | Reel | 250 | Get Samples, |
