SmartBond TINY™ DA14531 Bluetooth® Low Energy 5.1 System-on-Chip Module Development Kit Pro
Jump to Page Section:
Overview
Description

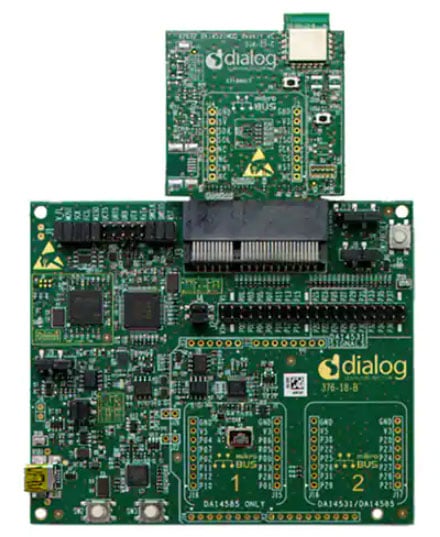

The DA14531MOD-00DEVKT-P Bluetooth Low Energy Development Kit Pro for the DA14531 SmartBond TINY™ module includes a motherboard, daughterboard and cables. This kit is primarily used for software application development and power measurements.
The DA14531 is a family of Bluetooth Low Energy (LE) devices that operate at very low power levels while providing world-class RF performance. This device is available in a small footprint while still offering large flexibility in configuration of the on-chip interfaces, making it suitable for a wide range of applications.
Features
- Motherboard
- A slot to connect a DA14531 PRO daughterboard which hosts either the DA14531-FCGQFN24 or the DA14531-WLCSP17 SoC
- Power wiring configurations to allow the DA14531 PRO motherboard to operate in either buck, boost, or bypass modes
- Dedicated hardware for current measurement
- Single USB port to provide power and data interfacing to a PC
- Onboard JTAG debugger
- Virtual 4-wire UART port
- DA14531 RESET line is controlled over JTAG by using an onboard push button
- Onboard 2-Mbit SPI data Flash (MX25R2035)
- Multiple voltage options (1.1V, 1.8V, 3.0V, and 3.3V) to supply the DA14531 SoC on the DA14531 PRO daughterboard
- Support for coin cell battery (battery holder not included)
- User LEDs and push buttons (to be used with a DA14531 FCGQFN24 PRO daughterboard)
- Voltage translation for the JTAG and UART signals that allows the current leakage during system operation to be eliminated
- Daughterboard (DA14531-00F1DB-P and DA14531-00OGDB-P)
- Embedded printed antenna
- RF port output (connector not included)
- DA14531 power mode configuration switch (only for backwards compatibility with DA1458x DK PRO motherboard)
- Current measurement port to connect external measurement equipment
- Onboard JTAG connector
- Support for coin cell battery (battery holder not included)
Applications
Applications
- Beacons
- Remote controls
- Proximity tags
- Low power sensors
- Commissioning/Provisioning
- RF pipe
- Toys
- Industrial applications
- Data acquisition
- Wellness
- Infotainment
- IoT
- Robotics
- Gaming
