BLDC Motor Control Evaluation System for RAJ3060xx Motor Control ICs
Jump to Page Section:
Overview
Description

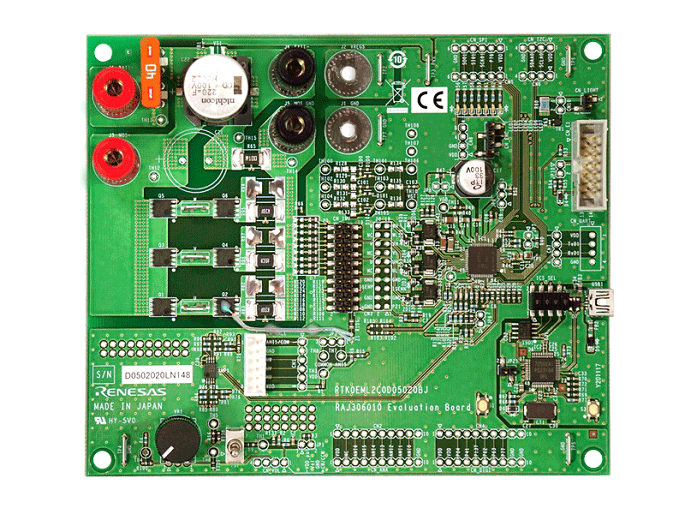

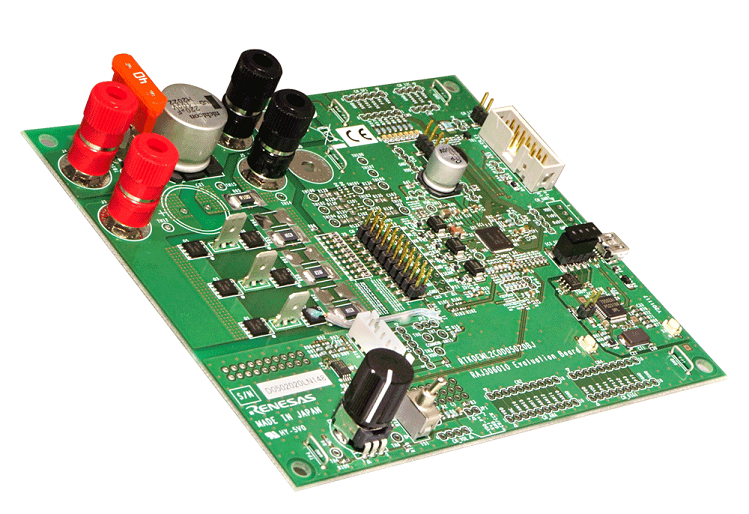

This is a kit for evaluating BLDC motor system using the RAJ306010 motor control IC. It consists of a board with RAJ306010 mounted, a small 24V motor, and a connecting cable.
RAJ306010 is initially equipped with sample code for 120 degree conduction control using a Hall IC, and a basic evaluation of motor control can be performed simply by connecting a 24V DC power supply and the attached motor. In addition, it is possible to connect and evaluate a motor and MOSFET prepared by the user.
BLDC motors have different control requirements than standard brush motors. Refer to our BLDC Motor Control Algorithms page for additional information and guidelines.
Equipment Required:
- Power Supply 24V/2A
- Emulator E2, E2 Lite, E20, E1
- USB mini-B type
Features
- Easy to start motor control evaluation with RAJ306010
- Reference firmware has already been written on the RAJ306010. By connecting the attached small motor to the board and supplying power, evaluation can be start immediately.
- High expandability and operability by small board (about B6 size: 148 × 125 mm)
- The board is small and easy to operate, but since switches, potentiometers, LEDs and thermistors are mounted, their functions can be used by using the user program
- Connectable to the external MOSFET board
- By setting the switching pin, it is possible to select mounted MOSFET and external MOSFET.
- Various sample code for basic motor drive
- Sample code of basic control required for BLDC motor control can be downloaded from the website
- 120 degrees conducting control with hall IC
- 120 degrees conducting speed control with hall IC
- 120 degrees conducting control by sensor-less drive
- 120 degrees conducting control with hall IC
- Sample code of basic control required for BLDC motor control can be downloaded from the website
- Desk Top Lab ICS tool support (ICS: PC tool for waveform display)
- ICS is a tool for monitoring and changing global variables in operation from a PC
- Refer to Desk Top Lab website for detailed features and operation methods
Applications
Design & Development
Software & Tools
Software & Tools
| E2 emulator Lite [RTE0T0002LKCE00000R]On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX] | Emulator | Renesas |
| E2 emulator [RTE0T00020KCE00000R]On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX] | Emulator | Renesas |
| E20 emulator [R0E000200KCT00]On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C] | Emulator | Renesas |
Product Options
Processing table
| BLDC Motor Control | 24 | 420 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
