Overview

The RX671 group microcontrollers deliver superior real-time performance with the RXv3 core running at 120MHz. The HMI functions enable contactless operation by proximity switches and voice recognition, making it possible to realize hygienic HMI suitable for the new normal. A wide variety of packages, including the 4.5mm x 4.5mm 64-pin TFBGA, is all equipped with 2MB flash memory and 384KB SRAM to meet a wide range of needs with a single chip.

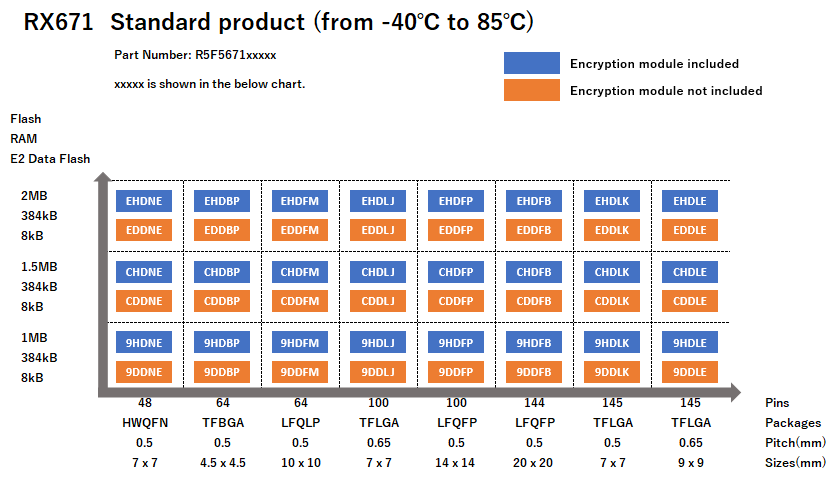

Pin-Memory Diagram of RX671 stanndard products

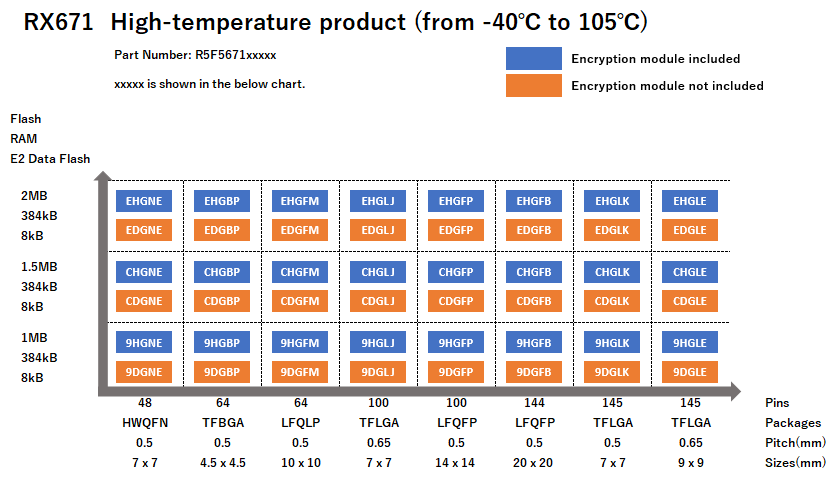

Pin-Memory Diagram of RX671 High-temperature products

120MHz RXv3 core (707 CoreMark, 48.8 CoreMark/mA), double-precision FPU, and register bank save function that speeds up interrupt response
2MB flash memory (60MHz read access, dual bank function), 384KB SRAM
48-pin to 176-pin package lineup including ultra-small 64-pin TFBGA (4.5mm x 4.5mm)
Capacitive touch sensing unit and serial sound interface
SD host interface, USB 2.0 full speed, CAN 2ch, and QSPI supporting XIP mode
Encryption engine (AES, RSA, ECC, SHA, etc.), key management, access management circuit, flash memory protection
2.7V to 3.6V single supply operation
Operating temperature: -40°C to 85°C or -40°C to 105°C

Documentation

Document title Title		Document type Type	Date Date
	RX671 Group Datasheet Rev.1.10 PDF 2.60 MB 日本語	Datasheet	Apr 14, 2022
	RX671 Group User's Manual: Hardware Rev.1.10 PDF 51.28 MB 日本語 Related Files: RX Family Hardware Manual Guidance	Manual - Hardware	Apr 14, 2022
	RX Family RXv3 Instruction Set Architecture User's Manual: Software Rev.1.00 PDF 3.61 MB 日本語	Manual - Software	Nov 20, 2018
	HS300x Sample application - Sample Code PDF 3.64 MB 日本語 Related Files: Sample Code	Application Note	Sep 7, 2023
	RX Family How to implement OTA by using Microsoft Azure Services Rev.1.00 PDF 2.86 MB 日本語	Application Note	Jul 31, 2023
	Azure RTOS sample projects using e2 studio or IAR EW Rev.1.03 PDF 3.67 MB	Application Note	Jul 28, 2023
	RX Family GUI Sample Program using Serial LCD and emWin Library PDF 1.90 MB 日本語 Related Files: Sample Code	Application Note	Jun 29, 2023
	RX Family Digital Power Conversion (Totem Pole Interleaved PFC) Rev.1.10 PDF 2.45 MB 日本語 Related Files: Sample Code	Application Note	Jun 1, 2023
	RX Family Digital Power Conversion (Uninterruptible Power System (UPS)) Rev.1.10 PDF 3.04 MB 日本語 Related Files: Sample Code	Application Note	Jun 1, 2023
	Capacitive Sensor MCU Capacitive Touch Noise Immunity Guide PDF 1.58 MB 日本語	Application Note	May 30, 2023
	RX Family Specification Differences Between the RSPI and SCI (Simple SPI Mode) and Selection Guide Rev.1.01 PDF 96 KB 日本語	Application Note	May 30, 2023
	A/D conversion start request delayed function using MTU3/GPTW Rev.1.00 PDF 3.41 MB 日本語 Related Files: Sample Code	Application Note	Apr 24, 2023
	RX Family Pulse Period Measurement Using MTU2/MTU3 Rev.1.00 PDF 1.17 MB 日本語 Related Files: Sample Code	Application Note	Apr 24, 2023
	RX Family Pulse Width Measurement Using MTU2/MTU3 Rev.1.00 PDF 1.16 MB 日本語 Related Files: Sample Code	Application Note	Apr 24, 2023
	RX671 OTA-supported HMI sample program with touch keys and LCD Rev.1.00 PDF 3.44 MB 日本語 Related Files: Sample Code	Application Note	Apr 23, 2023
	RX671 OTA-supported flat panel HMI PoC with touch keys and LCD Rev.1.00 PDF 3.41 MB 日本語 Related Files: Sample Code	Application Note	Apr 23, 2023
	Capacitive Sensor Microcontrollers CTSU Capacitive Touch Introduction Guide PDF 2.33 MB 日本語	Application Note	Apr 3, 2023
	RA Family, RL78 Family, RX Family, Renesas Synergy™ Platform CTSU Self Test Software PDF 2.61 MB	Application Note	Mar 31, 2023
	RX Family How to Start Transmission Immediately After Writing Transmit Data in SCI Asynchronous Mode PDF 1.72 MB 日本語 Related Files: Sample Code	Application Note	Mar 19, 2023
	RX Family Example of Using the External Bus Rev.1.00 PDF 242 KB 日本語 Related Files: Sample Code	Application Note	Jan 10, 2023
	RX Family Audio Input/Output Program Using SSIE PDF 853 KB 日本語 Related Files: Sample Code	Application Note	Jan 9, 2023
	RX Family PWM Output Methods Using MTU3/GPTW Rev.1.10 PDF 48.35 MB 日本語 Related Files: Sample Code	Application Note	Jan 5, 2023
	RX Family Example of Operation Near PWM 0% and 100% Duty Cycles Using MTU3 or GPTW Rev.1.00 PDF 4.71 MB 日本語 Related Files: Sample Code	Application Note	Dec 15, 2022
	RX671 Capacitive Touch Evaluation System Sample Code Rev.1.00 PDF 682 KB 日本語 Related Files: Sample Code	Application Note	Dec 15, 2022
	Capacitive Sensor Microcontrollers CTSU Capacitive Touch Electrode Design Guide Rev.2.00 PDF 8.01 MB 日本語 , 简体中文	Application Note	Sep 29, 2022
	RX Family HOCO Calibration Using the CAC Rev.1.10 PDF 913 KB 日本語 Related Files: Sample Code	Application Note	Jun 29, 2022
	RX671 Group Example of Program Execution from Serial ROM Using QSPIX XIP Mode PDF 1018 KB 日本語 Related Files: Sample Code	Application Note	Jun 29, 2022
	RX Family Synchronous Operation Using MTU3/GPTW Rev.1.00 PDF 6.31 MB 日本語 Related Files: Sample Code	Application Note	Jun 28, 2022
	RX Family Usage Examples for Phase Counting Modes Using MTU3/GPTW Rev.1.00 PDF 3.33 MB 日本語 Related Files: Sample Code	Application Note	Jun 28, 2022
	RX Family Examples of Transitioning to Low Power Consumption Modes Rev.1.20 PDF 974 KB 日本語 Related Files: Sample Code	Application Note	Jun 5, 2022
	RX671 Group, RX130 Group External Serial LCD Display Demonstration using RX Family and Segger emWin Library PDF 927 KB Related Files: Sample Code	Application Note	May 30, 2022
	RX Family OB1203 Sensor Firmware Integration Technology Rev.1.01 PDF 192 KB Related Files: Sample Code	Application Note	May 20, 2022
	Differences Between the RX671 Group and the RX62N Group Rev.1.10 PDF 1.38 MB 日本語	Application Note	May 19, 2022
	Differences Between the RX671 Group and the RX63N Group Rev.1.10 PDF 2.31 MB 日本語	Application Note	May 19, 2022
	Differences Between the RX671 Group and the RX65N Group Rev.1.10 PDF 1.75 MB 日本語	Application Note	May 19, 2022
	Differences Between the RX671 Group and the RX66N Group Rev.1.10 PDF 1.94 MB 日本語	Application Note	May 19, 2022
	RX Family Security Guide for MCUs with Encryption Functions Rev.1.01 PDF 185 KB 日本語	Application Note	May 10, 2022
	RX Family How to Prevent the On-Chip Flash Memory from Being Accessed by Third Parties or Being Accidentally Programmed by Developers Rev.7.00 PDF 871 KB 日本語	Application Note	Nov 10, 2021
	RX Family Hardware Design Guide Application Note Rev.1.10 PDF 1.05 MB 日本語	Application Note	Oct 25, 2021
	RX671 Group Target Board for RX671 LED Blink Control Program Rev.1.00 PDF 2.75 MB 日本語 Related Files: Sample Code	Application Note	Sep 16, 2021
	RX671 Group Voice Recognition Demonstration (AmiVoice Micro) Rev.1.00 PDF 874 KB 日本語 Related Files: Sample Code	Application Note	Sep 1, 2021
	RX671 Group Voice recognition / Touch and Cloud solution using Renesas Starter Kit+ for RX671 Rev.1.00 PDF 1.33 MB 日本語 Related Files: Sample Code	Application Note	Aug 31, 2021
	RX671 Group Using FLL to Boost HOCO Frequency Accuracy Rev.1.00 PDF 538 KB 日本語 Related Files: Sample Code	Application Note	Aug 25, 2021
	RX671 Group Initial Settings Example Rev.1.00 PDF 682 KB 日本語 Related Files: Sample Code	Application Note	Jun 30, 2021
	Precautions Regarding High-Temperature Operation of RX671 Group Rev.1.00 PDF 281 KB 日本語	Application Note	Mar 23, 2021
	Building Automation Brochure PDF 19.79 MB 日本語	Brochure	Dec 20, 2022
	Capacitive Touch Sensor Solution Brochure PDF 5.28 MB 日本語 , 简体中文	Brochure	Jul 6, 2022
	RX Family Brochure PDF 9.07 MB 日本語 , 简体中文	Brochure	Jan 27, 2022
	RX Cloud Connectivity Solution Leaflet PDF 931 KB 日本語	Flyer	Oct 24, 2022
	[Flyer] Renesas C Compilers PDF 313 KB 日本語	Flyer	Apr 6, 2022
	[Flyer] E2Emulator[RTE0T00020KCE00000R] PDF 303 KB 日本語 , 简体中文	Flyer	Mar 24, 2022
	Renesas Software and Tools Flash Memory Programmer PG-FP6 PDF 417 KB 日本語 , 简体中文	Flyer	Mar 16, 2020
	Semiconductor Reliability Handbook PDF 14.70 MB 日本語	General Reliability Literature	Jan 30, 2017
	RX Family Product Part Number Guide PDF 468 KB	Guide	Dec 21, 2022
	RX671 Capacitive Touch Evaluation System User's Manual PDF 989 KB 日本語	Manual - Development Tools	Sep 29, 2022
	Semiconductor Package Mount Manual PDF 10.28 MB 日本語 , 简体中文	Other	Dec 27, 2018
	R5F5671XXX Reliability Report PDF 450 KB	Product Reliability Report	Jul 18, 2022
	Getting started with the Renesas Starter Kit+ for RX671 PDF 1.23 MB	Quick Start Guide	Mar 25, 2022
	RTK0EG0044S01001BJ - Design Package ZIP 2.74 MB	Schematic	Feb 13, 2023
	Addition of the Sub-section on Rewriting Flash Memory When Using Dual Mode PDF 171 KB 日本語	Technical Update	Jun 28, 2023
	RIICHS add item of electrical characteristics. PDF 190 KB 日本語	Technical Update	Apr 18, 2023
	Addition of Specifications Regarding the Capacitive Touch Sensing Unit (CTSU) PDF 181 KB 日本語	Technical Update	Dec 8, 2022
Add 121 hidden items 62 items

Design & Development

Software & Tools

Software title	Software type	Company

RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.	ITRON OS	Renesas
RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.	ITRON OS	Renesas
RX Driver Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.	Software Package	Renesas
C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]	Compiler/Assembler	Renesas
e² studio Partner OS Aware Debugging Standard debugger in e2 studio for supporting task level debugging of real-time OS applications.	Plug-in, OS Aware Debugging, Etc.	Renesas
QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™] Downloads Capacitive Sensor Microcontrollers CTSU Capacitive Touch Electrode Design Guide Rev.2.00 Capacitive Sensor MCU Capacitive Touch Noise Immunity Guide	Solution Toolkit	Renesas
E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX]	Emulator	Renesas
E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX]	Emulator	Renesas
E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]	Emulator	Renesas
CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0] (Note: CS+ is not generally promoted to U.S. and European customers.) (Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)	IDE and Coding Tool	Renesas
CS+ Partner OS Aware Debugging Plug-in Features for task level debugging of real-time OS applications [Plugin for Renesas IDE CS+] [Support MCU/MPU: RX, RL78]	Plug-in, OS Aware Debugging, Etc.	Renesas
PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]	Programmer (Unit/SW)	Renesas
External Flash Definition Editor Utility for downloading data to external flash memory (for emulators)	Other Emulators and Options	Renesas
Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0]	Programmer (Unit/SW)	Renesas
Trusted Secure IP Driver Trusted Secure IP driver software: this software supports AES with 128- and 256-bit keys), AES-GCM, AES-CMAC, and random number generation. Safely executes AES key management, secure updating of firmware, and secure booting at high speeds.	Security / Crypto	Renesas
TCP/IP protocol stack [M3S-T4-Tiny] for RX Family Ultracompact TCP/IP protocol stack (high-speed version) for RX	Protocol Stack	Renesas
SD Card Driver for RX Family SD Card Driver for RX Family (SDHI)	SD Card	Renesas
SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory	Serial Memory	Renesas
SPI Serial EEPROM Driver Device Drivers for SPI Bus Serial EEPROM R1EX25xxx Series and HN58X25xxx Series	Serial Memory	Renesas
Crypto Library Robust encode library to ensure security for all types of system developments	Security / Crypto	Renesas
FAT File System [M3S-TFAT-Tiny] for the RX Family FAT file system for RX Family	File System	Renesas
Sound Playback/Compression System [M3S-S2-Tiny] for RX Family Sound playback system for RX Family	Sound / Voice	Renesas
USB Drivers Device drivers for USB communication using USB interface with built-in microcomputer and USB ASSP	USB	Renesas
Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products. Downloads HS300x Sample application - Sample Code RX Family OB1203 Sensor Firmware Integration Technology Rev.1.01 RX Family OB1203 Sensor Firmware Integration Technology Rev.1.01 - Sample Code	Sensor	Renesas
DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU	DSP / FFT	Renesas
RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins. Downloads RX671 Target Board Board Description File	Solution Toolkit	Renesas
Security Key Management Tool Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.	Solution Toolkit	Renesas
QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU:RZ, RX, RA]	Solution Toolkit	Renesas
e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).	IDE and Coding Tool	Renesas
QE for OTA: Development Assistance for Cloud [Technical Preview Edition] QE for OTA is a development assistance tool that enables easy trial of over-the-air (OTA) firmware updates using cloudservices. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU:RX] [Support cloudservice:Amazon Web Services (AWS), Microsoft Azure] Downloads RX Cloud Connectivity Solution Leaflet	Solution Toolkit	Renesas
Add 3 hidden items 30 items

Software Downloads

Software title Title	Software type Type	Date Date
RX671 Target Board Board Description File ZIP	Board Description File	Oct 20, 2022
Add 2 hidden items 1 item

Sample Code

Filters
Title Title	Type	Date Date Date
	RX Family GUI Sample Program using Serial LCD and emWin Library [Software=RX Driver Package\|V1.39],[Toolchains=CC-RX\|V3.05.00] ZIP 105.20 MB 日本語 Compiler: CC-RX Function: Application Example, Communication Interface IDE: e2 studio Related Files: Application Note	Sample Code	Jun 29, 2023
	RX Family Digital Power Conversion (Totem Pole Interleaved PFC) Rev.1.10 [Toolchains=CC-RX\|v3.05.00] ZIP 5.82 MB Application: Consumer Electronics, Industrial, Key Technology, Medical and Healthcare Solutions, Power and Energy Compiler: CC-RX Function: Application Example IDE: CS+, e2 studio Related Files: Application Note	Sample Code	Jun 1, 2023
	RX Family Digital Power Conversion (Uninterruptible Power System (UPS)) Rev.1.10 [Toolchains=CC-RX\|v3.04.00] ZIP 7.69 MB Application: Consumer Electronics, Industrial, Key Technology, Medical and Healthcare Solutions, Power and Energy Compiler: CC-RX Function: Application Example IDE: CS+, e2 studio Related Files: Application Note RX66TGroup Digital Power Conversion (UPS) Schematic Rev.1.00 RX66TGroup Digital Power Conversion (UPS) BOM List Rev.1.00	Sample Code	Jun 1, 2023
	A/D conversion start request delayed function using MTU3/GPTW Rev.1.00 [Toolchains=CC-RX\|v3.04.00] ZIP 24.16 MB 日本語 Application: Consumer Electronics, Industrial, IoT Applications, Key Technology, Power and Energy Compiler: CC-RX Function: Timer IDE: e2 studio Related Files: Application Note	Sample Code	Apr 24, 2023
	RX Family Pulse Period Measurement Using MTU2/MTU3 Rev.1.00 [Toolchains=CC-RX\|v3.04.00] ZIP 6.83 MB 日本語 Application: Consumer Electronics, Industrial, IoT Applications, Key Technology, Power and Energy Compiler: CC-RX Function: Timer IDE: e2 studio Related Files: Application Note	Sample Code	Apr 24, 2023
	RX Family Pulse Width Measurement Using MTU2/MTU3 Rev.1.00 [Toolchains=CC-RX\|v3.04.00] ZIP 10.63 MB 日本語 Application: Consumer Electronics, Industrial, IoT Applications, Key Technology, Power and Energy Compiler: CC-RX Function: Timer IDE: e2 studio Related Files: Application Note	Sample Code	Apr 24, 2023
	RX671 OTA-supported HMI sample program with touch keys and LCD Rev.1.00 [Software=RX Driver Package\|V1.38],[Toolchains=CC-RX\|V3.05.00] ZIP 211.00 MB 日本語 Application: Consumer Electronics, Industrial, IoT Applications, Key Technology, Medical and Healthcare Solutions Compiler: CC-RX Function: HMI IDE: e2 studio Related Files: Application Note	Sample Code	Apr 23, 2023
	RX671 OTA-supported flat panel HMI PoC with touch keys and LCD Rev.1.00 [Software=RX Driver Package\|V1.38],[Toolchains=CC-RX\|V3.05.00] ZIP 228.95 MB 日本語 Application: Consumer Electronics, Industrial, IoT Applications, Key Technology, Medical and Healthcare Solutions Compiler: CC-RX Function: HMI IDE: e2 studio Related Files: Application Note	Sample Code	Apr 23, 2023
	RX Family How to Start Transmission Immediately After Writing Transmit Data in SCI Asynchronous Mode - Sample Code ZIP 28.08 MB 日本語 Related Files: Application Note	Sample Code	Mar 19, 2023
	RX Family Example of Using the External Bus Rev.1.00 [Toolchains=CC-RX\|V3.04.00] ZIP 5.95 MB 日本語 Application: Consumer Electronics, Industrial Compiler: CC-RX Function: Application Example, Memory IDE: CS+ for CC, e2 studio Related Files: Application Note	Sample Code	Jan 10, 2023
	RX Family Audio Input/Output Program Using SSIE - Sample Code [Software=RX Driver Package\|v1.36],[Toolchains=CC-RX\|v3.04.00] ZIP 14.00 MB 日本語 Compiler: CC-RX IDE: e2 studio Related Files: Application Note	Sample Code	Jan 9, 2023
	RX Family PWM Output Methods Using MTU3/GPTW Rev.1.10 [Toolchains=CC-RX\|v3.04.00] ZIP 193.52 MB 日本語 Application: Consumer Electronics, Industrial, IoT Applications, Key Technology, Power and Energy Compiler: CC-RX Function: Timer IDE: e2 studio Related Files: Application Note	Sample Code	Jan 5, 2023
	RX Family Example of Operation Near PWM 0% and 100% Duty Cycles Using MTU3 or GPTW Rev.1.00 [Toolchains=CC-RX\|v3.04.00] ZIP 16.13 MB 日本語 Application: Consumer Electronics, Industrial, IoT Applications, Key Technology, Power and Energy Compiler: CC-RX Function: Timer IDE: e2 studio Related Files: Application Note	Sample Code	Dec 15, 2022
	RX671 Capacitive Touch Evaluation System Sample Code Rev.1.00 [Software=RX Driver Package\|V1.36],[Toolchains=CC-RX\|V3.04.00] ZIP 12.90 MB 日本語 Application: Consumer Electronics, Key Technology Compiler: CC-RX Function: Evaluation Kit, HMI IDE: e2 studio Related Files: Application Note	Sample Code	Dec 15, 2022
	RX Family HOCO Calibration Using the CAC Rev.1.10 ZIP 29.94 MB Related Files: Application Note	Sample Code	Jun 29, 2022
	RX671 Group Example of Program Execution from Serial ROM Using QSPIX XIP Mode [Software=RX Driver Package\|v1.34],[Toolchains=CC-RX\|v3.04.00] ZIP 32.05 MB Compiler: CC-RX Function: Driver or Library, Memory IDE: e2 studio Related Files: Application Note	Sample Code	Jun 29, 2022
	RX Family Synchronous Operation Using MTU3/GPTW Rev.1.00 [Toolchains=CC-RX\|v3.04.00] ZIP 78.58 MB Application: Consumer Electronics, Industrial, IoT Applications, Key Technology, Power and Energy Compiler: CC-RX Function: Timer IDE: e2 studio Related Files: Application Note	Sample Code	Jun 28, 2022
	RX Family Usage Examples for Phase Counting Modes Using MTU3/GPTW Rev.1.00 [Toolchains=CC-RX\|v3.04.00] ZIP 24.04 MB 日本語 Application: Consumer Electronics, Industrial, IoT Applications, Key Technology, Power and Energy Compiler: CC-RX Function: Timer IDE: e2 studio Related Files: Application Note	Sample Code	Jun 28, 2022
	RX Family Examples of Transitioning to Low Power Consumption Modes Rev.1.20 ZIP 118.43 MB 日本語 Compiler: CC-RX Function: BSP, Electrical Characteristic, Interrupt/Exception Handling, Power Save, Power-On Reset, RTC IDE: e2 studio Related Files: Application Note	Sample Code	Jun 5, 2022
	RX671 Group, RX130 Group External Serial LCD Display Demonstration using RX Family and Segger emWin Library ZIP 23.99 MB Compiler: CC-RX Function: LCD, Serial Interface (Clock Sync./Clock Async.), Software IDE: e2 studio Related Files: Application Note	Sample Code	May 30, 2022
	RX Family OB1203 Sensor Firmware Integration Technology Rev.1.01 - Sample Code ZIP 2.93 MB Application: Consumer Electronics, Industrial Compiler: CC-RX, GNURX, ICCRX Function: Analog, Communication Interface, Driver or Library, OS IDE: CS+, e2 studio, IAR EWRX Related Files: Application Note	Sample Code	May 20, 2022
	RX671 Group Target Board for RX671 LED Blink Control Program Rev.1.00 - Sample Code ZIP 9.70 MB Compiler: CC-RX Function: Timer IDE: e2 studio Related Files: Application Note	Sample Code	Sep 16, 2021
	RX671 Group Voice Recognition Demonstration (AmiVoice Micro) Rev.1.00 - Sample Code ZIP 2.09 MB 日本語 Application: Key Technology Compiler: CC-RX Function: Communication Interface IDE: e2 studio Related Files: Application Note	Sample Code	Sep 1, 2021
	RX671 Group Voice recognition / Touch and Cloud solution using Renesas Starter Kit+ for RX671 Rev.1.00 - Sample Code ZIP 3.30 MB Application: Consumer Electronics, Industrial, IoT Applications, Key Technology Compiler: CC-RX Function: Communication Interface, HMI IDE: e2 studio Related Files: Application Note	Sample Code	Aug 31, 2021
	RX671 Group Using FLL to Boost HOCO Frequency Accuracy Rev.1.00 - Sample Code ZIP 6.85 MB Compiler: CC-RX Function: BSP, Clock IDE: e2 studio Related Files: Application Note	Sample Code	Aug 25, 2021
	RX671 Group Initial Settings Example Rev.1.00 - Sample Code ZIP 3.26 MB Compiler: CC-RX Function: Clock, I/O or Pin IDE: e2 studio Related Files: Application Note	Sample Code	Jun 30, 2021
Add 75 hidden items 26 items

Boards & Kits

RTK5RX6710C00000BJ

Evaluation

Order Now

Target Board for RX671

The Target Board for RX671 provides an entry point to evaluation, prototyping and developing for the RX671 MCU. Moreover, since this board incorporates an emulator...

Featured Documents:

RX671-Starter-Kit-Plus

Starter

Order Now

Renesas Starter Kit+ for RX671

The Renesas Starter Kit+ for RX671 is the perfect starter kit for developers who are new to the RX671 (Code Flash 2MB, Pin Count 144-pin). The kit includes an LCD...

RTK0EG0044S01001BJ

Evaluation

Order Now

Capacitive Touch Evaluation System for RX671

The RX671 capacitive touch evaluation system makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box...

Featured Documents:

EK-RX671

Evaluation

Order Now

Evaluation Kit for RX671 MCU Group

The EK-RX671 is the evaluation kit for the RX671 MCU, providing an efficient tool to evaluate the RX671 MCU. This kit comes with all the hardware and software needed to...

Featured Documents:

SERIAL-LCD-TOUCH-REF

Reference

Order Now

Serial LCD + Touch Reference Design

The Serial LCD + Touch Reference Design can display a microwave-style operation screen on a QVGA LCD module connected via SPI to an RX Family MCU. The capacitive-touch...

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Models

Title Title	Type Type	Date Date
RX671 PTBG0064KB BSDL Rev.1.00 BSDL 18 KB	Model - BSDL	Sep 1, 2021
RX671 PTLG0145JB BSDL Rev.1.00 BSDL 24 KB	Model - BSDL	Sep 1, 2021
RX671 PTLG0145KA BSDL Rev.1.00 BSDL 24 KB	Model - BSDL	Sep 1, 2021
RX671 IBIS Rev.1.00 ZIP 9.92 MB	Model - IBIS	Sep 1, 2021
4 items

Product Options

Processing table

	Carrier Type	PLP	Bit Size	CPU	Program Memory (KB)	Data Flash (KB)	RAM (KB)	Lead Count (#)	Pkg. Type	Supply Voltage (V)	Operating Freq (Max) (MHz)	I/O Ports	Ethernet	USB	UART (#)	SPI (#)	I2C (#)	CAN (ch)	DMA	Timer	ADC	DAC	Human Machine Interface	Security & Encryption	RTC	Watchdog Timer (#)	LVD	Pkg. Dimensions (mm)	Buy / Sample
(131) Active (0) Obsolete / NRND / LTB	Tray Tray (Full Carton)			RXv3					HWQFN LFQFP TFBGA TFLGA				No	No USB Endpoints x 10 USB Endpoints x 20 USB Host USB Isochronous Transfer Support USB Peripheral USB Ports (ch) x 1 USB Ports (ch) x 2					Yes	16-bit x 19-ch 32-bit x 3-ch 8-bit x 4-ch	12-bit x 10-ch 12-bit x 16-ch 12-bit x 20-ch 12-bit x 8-ch	No	Capacitive Sensing Unit 18ch Capacitive Sensing Unit 8ch Capacitive Sensing Unit 9ch Capacitive touch sensing unit Remote control signal receiver Serial sound interface	TSIP:3DES TSIP:AES(128/256) TSIP:CMAC TSIP:ECC TSIP:GMAC TSIP:HMAC TSIP:Key management TSIP:MD5 TSIP:RSA TSIP:SHA-1 TSIP:SHA-256 TSIP:TRNG	No		No	10 x 10 x 1.7 14 x 14 x 1.7 20 x 20 x 1.7 4.5 x 4.5 x 1.2 7 x 7 x 0.8 7 x 7 x 1.01 9 x 9 x 1.01	Buy / Quote Get Samples
Part Number	Logical Operator	Logical Operator		Logical Operator					Logical Operator				Logical Operator	Logical Operator					Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator	Logical Operator
R5F5671EHDFB#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model Samples Available	Tray	2037 Dec	32	RXv3	2048	8	384	144	LFQFP	2.7 - 3.6	120	114	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	15	19	19	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 20-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	20 x 20 x 1.7	Get Samples, Buy / Quote
R5F5671EDDFB#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	2048	8	384	144	LFQFP	2.7 - 3.6	120	114	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	15	19	19	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 20-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	20 x 20 x 1.7	Buy / Quote
R5F5671CHDFB#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1536	8	384	144	LFQFP	2.7 - 3.6	120	114	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	15	19	19	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 20-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	20 x 20 x 1.7	Buy / Quote
R5F5671CDDFB#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1536	8	384	144	LFQFP	2.7 - 3.6	120	114	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	15	19	19	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 20-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	20 x 20 x 1.7	Buy / Quote
R5F56719HDFB#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1024	8	384	144	LFQFP	2.7 - 3.6	120	114	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	15	19	19	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 20-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	20 x 20 x 1.7	Buy / Quote
R5F56719DDFB#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1024	8	384	144	LFQFP	2.7 - 3.6	120	114	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	15	19	19	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 20-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	20 x 20 x 1.7	Buy / Quote
R5F5671EDGFB#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	2048	8	384	144	LFQFP	2.7 - 3.6	120	114	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	15	19	19	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 20-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	20 x 20 x 1.7	Buy / Quote
R5F5671CHGFB#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1536	8	384	144	LFQFP	2.7 - 3.6	120	114	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	15	19	19	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 20-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	20 x 20 x 1.7	Buy / Quote
R5F5671CDGFB#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1536	8	384	144	LFQFP	2.7 - 3.6	120	114	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	15	19	19	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 20-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	20 x 20 x 1.7	Buy / Quote
R5F56719HGFB#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1024	8	384	144	LFQFP	2.7 - 3.6	120	114	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	15	19	19	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 20-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	20 x 20 x 1.7	Buy / Quote
R5F56719DGFB#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1024	8	384	144	LFQFP	2.7 - 3.6	120	114	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	15	19	19	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 20-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	20 x 20 x 1.7	Buy / Quote
R5F5671EHDFP#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	2048	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	14 x 14 x 1.7	Buy / Quote
R5F5671EDDFP#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	2048	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	14 x 14 x 1.7	Buy / Quote
R5F5671CHDFP#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1536	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	14 x 14 x 1.7	Buy / Quote
R5F5671CDDFP#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1536	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	14 x 14 x 1.7	Buy / Quote
R5F56719HDFP#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1024	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	14 x 14 x 1.7	Buy / Quote
R5F56719DDFP#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1024	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	14 x 14 x 1.7	Buy / Quote
R5F5671CHGFP#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1536	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	14 x 14 x 1.7	Buy / Quote
R5F5671CDGFP#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1536	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	14 x 14 x 1.7	Buy / Quote
R5F56719HGFP#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1024	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	14 x 14 x 1.7	Buy / Quote
R5F56719DGFP#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1024	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	14 x 14 x 1.7	Buy / Quote
R5F5671EHDFM#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	2048	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671EDDFM#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	2048	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface		No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671CHDFM#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1536	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671CDDFM#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1536	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface		No	1	No	10 x 10 x 1.7	Buy / Quote
R5F56719HDFM#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1024	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	10 x 10 x 1.7	Buy / Quote
R5F56719DDFM#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1024	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface		No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671EHGFM#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model Samples Available	Tray	2037 Dec	32	RXv3	2048	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	10 x 10 x 1.7	Get Samples, Buy / Quote
R5F5671EDGFM#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	2048	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface		No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671CHGFM#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1536	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671CDGFM#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1536	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface		No	1	No	10 x 10 x 1.7	Buy / Quote
R5F56719HGFM#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1024	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	10 x 10 x 1.7	Buy / Quote
R5F56719DGFM#30 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray	2037 Dec	32	RXv3	1024	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface		No	1	No	10 x 10 x 1.7	Buy / Quote
R5F56719DGFM#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	1024	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface		No	1	No	10 x 10 x 1.7	Buy / Quote
R5F56719HGFM#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	1024	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671CDGFM#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	1536	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface		No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671CHGFM#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	1536	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671EDGFM#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	2048	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface		No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671EHGFM#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	2048	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	10 x 10 x 1.7	Buy / Quote
R5F56719DDFM#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	1024	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface		No	1	No	10 x 10 x 1.7	Buy / Quote
R5F56719HDFM#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	1024	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671CDDFM#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	1536	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface		No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671CHDFM#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	1536	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671EDDFM#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	2048	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface		No	1	No	10 x 10 x 1.7	Buy / Quote
R5F5671EHDFM#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	2048	8	384	64	LFQFP	2.7 - 3.6	120	45	No	USB Endpoints x 10, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	11	14	14	0	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 10-ch	No	Capacitive Sensing Unit 9ch , Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	10 x 10 x 1.7	Buy / Quote
R5F56719DGFP#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	1024	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	14 x 14 x 1.7	Buy / Quote
R5F56719HGFP#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	1024	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	14 x 14 x 1.7	Buy / Quote
R5F5671CDGFP#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	1536	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	14 x 14 x 1.7	Buy / Quote
R5F5671CHGFP#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	1536	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface	TSIP:3DES, TSIP:AES(128/256), TSIP:CMAC, TSIP:ECC, TSIP:GMAC, TSIP:HMAC, TSIP:Key management, TSIP:MD5, TSIP:RSA, TSIP:SHA-1, TSIP:SHA-256, TSIP:TRNG	No	1	No	14 x 14 x 1.7	Buy / Quote
R5F5671EDGFP#10 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	Tray (Full Carton)	2037 Dec	32	RXv3	2048	8	384	100	LFQFP	2.7 - 3.6	120	81	No	USB Endpoints x 10, USB Host, USB Isochronous Transfer Support, USB Peripheral, USB Ports (ch) x 1	13	17	17	2	Yes	8-bit x 4-ch, 16-bit x 19-ch, 32-bit x 3-ch	12-bit x 16-ch	No	Capacitive Sensing Unit 18ch, Remote control signal receiver, Serial sound interface		No	1	No	14 x 14 x 1.7	Buy / Quote

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product

Support

RX Forum

RX Family FAQs

Contact Technical Support

Get Samples

RX Webinars

Product Longevity Program (PLP)

RX Video Library

MCU / MPU Selection Tool

Contact a Sales Representative

Orderable Part ID	Sample
R5F5671EHDFB#30	Availability Add to request
R5F5671EHGBP#20	Availability Add to request
R5F5671EHGFB#30	Availability Add to request
R5F5671EHGFM#30	Availability Add to request
R5F5671EHGFP#30	Availability Add to request
R5F5671EHGLE#20	Availability Add to request
R5F5671EHGLJ#20	Availability Add to request
R5F5671EHGLK#20	Availability Add to request
R5F5671EHGNE#30	Availability Add to request

Resources

Voice Recognition Solutions	Page
RX Cloud Connectivity Solution	Page
RX Security Solutions	Page

Videos & Training

RX671 HMI+Cloud Single Chip Solution

Introducing a solution that enables HMI and cloud connectivity functions on a single chip using the RX671. This solution provides a reference demo for a comprehensive experience of voice recognition, touch keys, and cloud connectivity. Demo software can be downloaded from the Renesas website. For details, refer to the application note "RX671 Group Voice recognition / Touch and Cloud solution using Renesas Starter Kit+ for RX671 Rev.1.00 - Sample Code (ZIP)".

Video List

RX671 HMI+Cloud Single Chip Solution

Events & Webinars

Break the Barriers of IoT Applications with the New RX671

Realizing Autonomous Secure IoT Devices with RX MCU Security Solution

News & Blog Posts

Evolve Your HMI Effortlessly with RX Microcontrollers and Serial LCD!	Blog Post	Jun 12, 2023
Develop The Touch Functions Of RX671 Quickly And Easily	Blog Post	Feb 24, 2023
Easy Expansion of MCU Code Area! Introducing Example of Program Execution from Serial ROM Using QSPI XIP Mode	Blog Post	Oct 26, 2022
Touch Key, Voice Recognition and Cloud Connectivity With a Single 32-Bit RX671 MCU	Blog Post	Mar 4, 2022
Would You Like to Address the Challenges of Network-Connected Equipment by Using 32-Bit RX66N MCUs?	Blog Post	Nov 30, 2021
The New RX671 Microcontroller Meets the Ever-Evolving Demands of IoT Devices	Blog Post	Sep 9, 2021

Resonator Information

Please search for your resonator on its manufacturer's site linked below. If you require optimal oscillation circuit constants for your particular system, please ask the manufacturer of the oscillator.
For main clock resonators / For subclock resonators:　
KYOCERA: Click here for the RX671 oscillation evaluation result.
Murata Manufacturing: For IC Manufacturer, select Renesas Electronics, and enter "R5F5671" or "RX671" into the IC Part Number search box.
NIHON DEMPA KOGYO: Please see IC Matching Information in the RX671 column.
Seiko Instruments: Please see the matching data in the RX671 column.

Language

Region

32-bit Microcontrollers for Fast Real-Time Control and Contactless HMI

featured_play_listOverview

Description

Features

Documentation
