The RA2L1 group is based on the Arm® Cortex®-M23 core, the most energy-efficient CPU among Arm Cortex-M today. The optimized processing and Renesas’ low power process technology makes it the industry's most energy-efficient ultra-low power microcontroller. The RA2L1 group supports a wide operating voltage range of 1.6V to 5.5V, and a maximum CPU clock frequency of 48MHz, lower active mode current and standby mode current. The RA2L1 group also features an enhanced Capacitive Touch Sensing Unit (CTSU2), a set of serial communication interfaces, highly accurate converters and timers. The products are available with pin counts ranging from 48-pin to 100-pin.

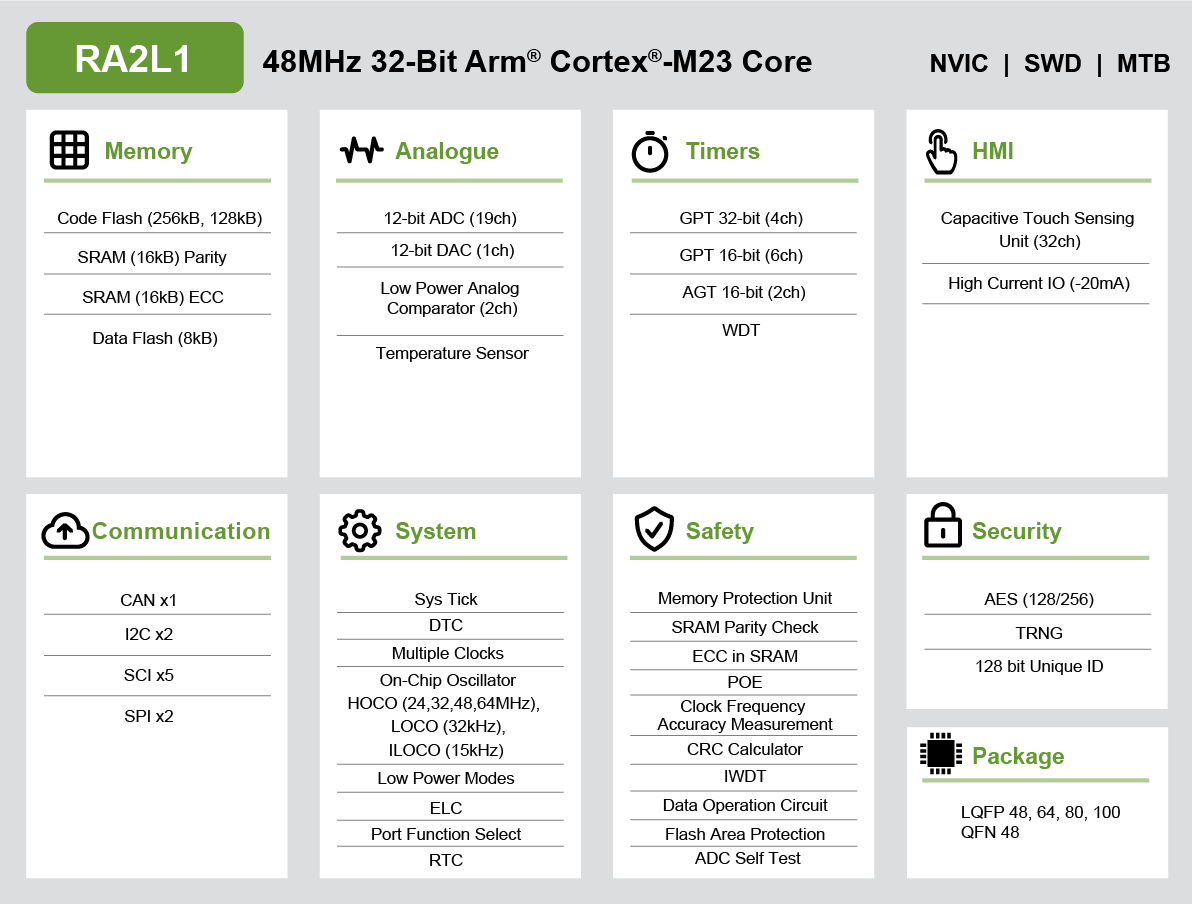

Features

  • 48MHz Arm® Cortex®-M23
  • 128kB/256kB Flash Memory and 32kB SRAM with ECC
  • 8kB Data Flash to store data as in EEPROM
  • Scalable from 48-pin to 100-pin packages
  • Internal voltage regulators
  • Enhanced Capacitive Touch Sensing Unit (CTSU2)
  • 12-bit ADC, 12-bit DAC, LPACMP
  • 32-bit general PWM timer, 16-bit general PWM timer, low power asynchronous general purpose timer
  • RTC
  • SCI (UART, Simple SPI, Simple I2C)
  • SPI/I2C multi-master interface
  • CAN
  • Safety
  • Security and encryption

Applications

  • Consumer applications
  • Home appliances
  • Industrial automation
  • Building automation
  • Medical and healthcare
  • General purpose

descriptionDocumentation

Title language Type Format File Size Date
star RA2L1 Group Datasheet 日本語 Datasheet PDF 1.49 MB
star RA2L1 Group User's Manual: Hardware 日本語 Manual - Hardware PDF 10.78 MB
E2 Emulator, E2 Emulator Lite Additional Document for User's Manual (Notes on Connection of RA Devices) Rev.3.00 日本語 Manual - Development Tools PDF 641 KB
Renesas e² studio 2021-04 or higher User's Manual: Quick Start Guide 日本語 Manual - Development Tools PDF 7.24 MB
EK-RA2L1 Errata 日本語 Manual - Development Tools PDF 458 KB
RA2L1 Group, RA2E1 Group, RA2E2 Group, numbers of IO ports 日本語 Technical Update PDF 272 KB
RA2L1 Group, RA2E1 Group, Disclosure of CTSU2 test registers for IEC 60730 Class-B functional safety diagnosis 日本語 Technical Update PDF 373 KB
RA2A1 Group, RA2L1 Group, RA2E1 Group, RA4M1 Group, RA4W1 Group, addition of SPI Data Control Register (SPDCR) bit 日本語 Technical Update PDF 460 KB
RA2A1 Group, RA2L1 Group, RA2E1 Group, RA4M1 Group, RA4W1 Group, RA6M1 Group, RA6M2 Group, RA6M3 Group, RA6T1 Group, Note on ALeRASE command 日本語 Technical Update PDF 152 KB
RA family, Addition of register definition for Flash 日本語 Technical Update PDF 139 KB
Errata for User's Manual: Hardware regarding the overview Technical Update PDF 86 KB
RA2L1 Group Touchless Button Electrode Board Sample Software Rev.1.00
Related Files: Sample Code
日本語 Application Note PDF 593 KB
RA Family, RL78 Family, RX Family, Renesas Synergy™ Platform CTSU Self Test Software Application Note PDF 2.37 MB
Injection current to prevent damage to MCU Application Note PDF 83 KB
Renesas RA Family Flash Memory Programming Application Note PDF 1.83 MB
Renesas RA Family System Specifications for Standard Boot Firmware Application Note PDF 747 KB
EK-RA2L1 Example Project Bundle
Related Files: Sample Code
Application Note PDF 79 KB
FS2012 Sample application
Related Files: Sample Code
日本語 Application Note PDF 2.87 MB
HS300x Sample application
Related Files: Sample Code
日本語 Application Note PDF 3.41 MB
RA2L1 Group Self-capacitance Waterproof Touch Button Demo Sample Software
Related Files: Sample Code
日本語 Application Note PDF 1.22 MB
ZMOD4xxx Sample application
Related Files: Sample Code
日本語 Application Note PDF 4.09 MB
Getting Started with Low Power Applications Package Application Project Application Note PDF 138 KB
- LPM Application Sample Code ZIP 9.12 MB
Getting Started with Low Power Applications for RA2L1/RA2E1 Group Application Project Application Note PDF 1.15 MB
- LPM Application Sample Code ZIP 9.12 MB
RA2 Quick Design Guide Application Note PDF 1.19 MB
Integrated Development Environment e² studio: How to use CUnit in e² studio Rev.1.01 日本語 Application Note PDF 1.00 MB
Integrated Development Environment e² studio: How to use EGit in e² studio Rev.1.01 日本語 Application Note PDF 1.79 MB
Secure Bootloader for RA2 MCU Series – Application Project
Related Files: Sample Code
Application Note PDF 1.08 MB
RA2L1 Group Touchless Button Demo Solution (Hardware) 日本語 Application Note PDF 280 KB
Renesas RA Security Design with Arm® TrustZone® - IP Protection
Related Files: Sample Code
简体中文 Application Note PDF 2.67 MB
RA2L1 Group Touchless Button Demo Solution Sample Software
Related Files: Sample Code
日本語 Application Note PDF 341 KB
Capacitive Sensor Microcontrollers CTSU Capacitive Touch Electrode Design Guide Rev.1.00 日本語, 简体中文 Application Note PDF 2.72 MB
Renesas RA Family QE for Capacitive Touch usage for IAR EWARM Application Note PDF 2.18 MB
Renesas RA Family QE for Capacitive Touch usage for Keil® MDK Application Note PDF 1.70 MB
RA2L1/RA2E1 Group Example of Low Power Application (Data Logger)
Related Files: Sample Code
Application Note PDF 2.45 MB
RA Family IEC 60730/60335 Self Test Library for RA MCU (CM4_CM23)
Related Files: Sample Code
日本語 Application Note PDF 1.73 MB
RA Azure IoT Cloud Connectivity Solution
Related Files: Sample Code
Application Note PDF 1.78 MB
Renesas RA Securing Data at Rest Using the Arm® TrustZone®
Related Files: Sample Code
Application Note PDF 870 KB
Migrating Projects to New FSP Version Application Note PDF 645 KB
RA Family Using QE and FSP to Develop Capacitive Touch Application 日本語 Application Note PDF 963 KB
Bring Fast, Accurate Multitouch User Interfaces to Your Designs 日本語, 简体中文 White Paper PDF 660 KB
[Notification] Development assistance tool for capacitive touch sensor, Renesas on-chip debugging emulators and flash programmers that support the RA2L1 group 日本語 Tool News - Notification PDF 304 KB
RA Family Brochure 日本語 Brochure PDF 4.77 MB
Building Automation Brochure 日本語 Brochure PDF 6.65 MB
Certification: Software for capacitive touch sensor RA Certificate PDF 143 KB
Renesas RA2L1 Group of 32-bit MCUs with Arm® Cortex®-M Core Flyer PDF 371 KB
[Flyer] E2Emulator[RTE0T00020KCE00000R] 日本語, 简体中文 Flyer PDF 381 KB
Renesas Software and Tools Flash Memory Programmer PG-FP6 日本語, 简体中文 Flyer PDF 417 KB
Renesas RA Family of 32-bit MCUs with Arm® Cortex®-M Core Flyer 日本語 Flyer PDF 391 KB
Semiconductor Reliability Handbook 日本語 General Reliability Literature PDF 14.70 MB
Semiconductor Package Mount Manual 日本語, 简体中文 Other PDF 10.28 MB
An Introduction to Renesas Advanced (RA) MCU Kits Presentation PPSX 35.87 MB
e² studio 2021-10 Release Note Release Note PDF 2.32 MB
QE for Capacitive Touch V2.0.0 Release Note Rev.2.00 日本語 Release Note PDF 161 KB
QE for Capacitive Touch[RA,RL78,Synergy] V1.4.1 Release Note 日本語 Release Note PDF 146 KB
e² studio 2021-07 Release Note Release Note PDF 3.00 MB
QE for Capacitive Touch[RA,RL78,Synergy] V1.4.0 Release Note 日本語 Release Note PDF 172 KB
QE for Capacitive Touch [RA, RL78] V1.3.0 Release Note 日本語 Release Note PDF 138 KB
QE for Capacitive Touch [RA] V1.2.0 Release Note 日本語 Release Note PDF 311 KB
EK-RA2L1 v1 - Design Package Schematic ZIP 19.09 MB

file_downloadDownloads

Title language Type Format File Size Date
Segger emWin v614d - Documentation, Tools and Samples Library ZIP 82.99 MB
Segger emWin v614a - Documentation, Tools and Samples Library ZIP 79.34 MB
e² studio 2021-04 Linux Host 日本語 Upgrade - IDE XZ 586.56 MB
e² studio 2021-01 installer for Windows 日本語 Upgrade - IDE EXE 1,637.73 MB
RA2L1 Group Touchless Button Electrode Board Sample Software Rev.1.00 - Sample Code 日本語 Sample Code ZIP 3.80 MB
- RA2L1 Group Touchless Button Electrode Board Sample Software Rev.1.00 日本語 Application Note PDF 593 KB
EK-RA2L1 Example Project Bundle - Sample Code
Related Files: Application Note
Sample Code ZIP 4.57 MB
LPM Application Sample Code ZIP 9.12 MB
- Getting Started with Low Power Applications for RA2L1/RA2E1 Group Application Project Application Note PDF 1.15 MB
- Getting Started with Low Power Applications Package for RA6M3 and RA4 Groups Application Project Application Note PDF 1.48 MB
- Getting Started with Low Power Applications Package Application Project Application Note PDF 138 KB
FS2012 Sample application - Sample Code 日本語 Sample Code ZIP 39.46 MB
- FS2012 Sample application 日本語 Application Note PDF 2.87 MB
HS300x Sample application - Sample Code 日本語 Sample Code ZIP 97.25 MB
- HS300x Sample application 日本語 Application Note PDF 3.41 MB
RA2L1 Group Self-capacitance Waterproof Touch Button Demo Sample Software - Sample Code
Related Files: Application Note
日本語 Sample Code ZIP 3.16 MB
ZMOD4xxx Sample application - Sample Code 日本語 Sample Code ZIP 152.64 MB
- ZMOD4xxx Sample application 日本語 Application Note PDF 4.09 MB
Secure Bootloader for RA2 MCU Series – Application Project - Sample Code Sample Code ZIP 1.13 MB
- Secure Bootloader for RA2 MCU Series – Application Project Application Note PDF 1.08 MB
Renesas RA Security Design with Arm® TrustZone® - IP Protection Rev.1.10 - Sample Code
Related Files: Application Note
Sample Code ZIP 2.61 MB
RA2L1 Group Touchless Button Demo Solution Sample Software Rev.1.01 - Sample Code 日本語 Sample Code ZIP 1.59 MB
- RA2L1 Group Touchless Button Demo Solution Sample Software 日本語 Application Note PDF 341 KB
RA2L1/RA2E1 Group Example of Low Power Application (Data Logger) Rev.1.00 - Sample Code Sample Code ZIP 2.44 MB
- RA2L1/RA2E1 Group Example of Low Power Application (Data Logger) Application Note PDF 2.45 MB
RA Family IEC 60730/60335 Self Test Library for RA MCU (CM4_CM23) Rev.1.00 - Sample Code 日本語 Sample Code ZIP 8.83 MB
- RA Family IEC 60730/60335 Self Test Library for RA MCU (CM4_CM23) 日本語 Application Note PDF 1.73 MB
RA2L1 Group Capacitive Touch Evaluation System Example Project Rev.1.00 - Sample Code Sample Code ZIP 2.97 MB
- RA2L1 Group Capacitive Touch Evaluation System Example Project Application Note PDF 156 KB

select_allSoftware & Tool Pages

Title Type Description Company
E2 emulator Lite [RTE0T0002LKCE00000R] Emulator On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX] Renesas
E2 emulator [RTE0T00020KCE00000R] Emulator On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX] Renesas
e² studio IDE and Coding Tool Eclipse-based Renesas integrated development environment (IDE).
[Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
(Note: You need to install compiler separately as an additional software)
(Note: No separate e² studio installation required for RA FSP, this will be installed as part of the FSP with e² studio installer (Platform Installer) on GitHub.)
Renesas
E2 Emulator (With Programming Function) Programmer (Unit/SW) On-chip debugging emulator available as a flash memory programmer [Available flash programming software: Renesas Flash Programmer] [Support MCU/MPU and devices: RE, RX, RL78, RH850, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver] Renesas
E2 Emulator Lite (With Programming Function) Programmer (Unit/SW) On-chip debugging emulator available as a flash memory programmer [Available flash programming software: Renesas Flash Programmer] [Support MCU/MPU and devices: RX, RL78, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver] Renesas
PG-FP6 Programmer (Unit/SW) Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C] Renesas
Renesas Flash Programmer (Programming GUI) Programmer (Unit/SW) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0] Renesas
Sensor Software Sensor Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
Renesas
Flexible Software Package (FSP) Software Package FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers.
Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain and Segger J-Link drivers required to use this software. No additional installations are required.
Renesas
QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors Solution Toolkit In developing embedded system using the capacitive touch sensor of RA family and RX family MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"]
Renesas
RA Smart Configurator Solution Toolkit The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain. Renesas

memoryBoards & Kits

Part Number Title Type Company
RTK0EG0022S01001BJ Capacitive Touch Evaluation System for RA2L1 Evaluation Renesas
EK-RA2L1 Evaluation Kit for RA2L1 MCU Group Evaluation Renesas

Pin Count/Memory Size Lineup:

256kB Flash
32kB RAM Size
128kB Flash
32kB RAM Size
Pin Count
Package
Size
Pitch
48-pin
QFN
7x7mm
0.5mm
48-pin
LQFP
7x7mm
0.5mm
64-pin
LQFP
10x10mm
0.5mm
80-pin
LQFP
12x12mm
0.5mm
100-pin
LQFP
14x14mm
0.5mm
