Capacitive Touch Evaluation System for RA2L1
Jump to Page Section:
Overview
Description

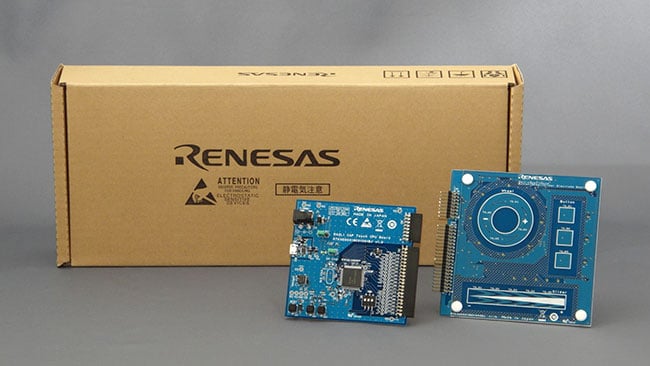

The RA2L1 capacitive touch evaluation system makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box using the board and software included in each kit.
Configuration
- RA2L1 CPU board
- Touch application board

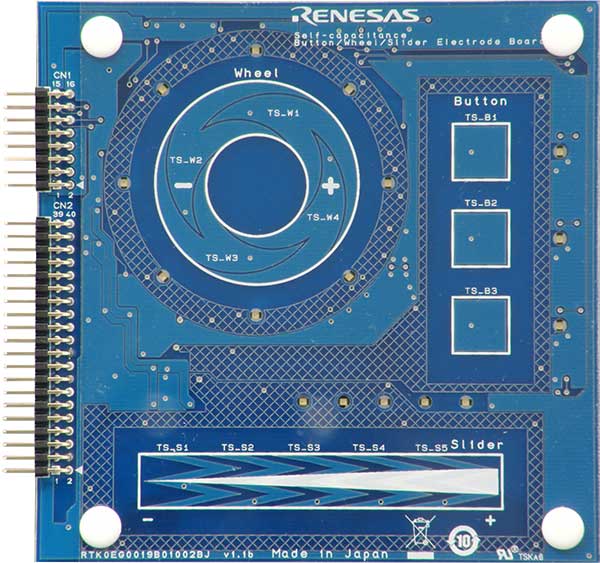

- Self-capacitance evaluation board built-in basics for capacitive touch: switches, slider and wheel
Support
The following items are available for download.
- e2 studio IDE
- QE for Capacitive Touch
- Quick start guide
- Instruction manual
- Circuit diagram, pattern diagram
Features
- Use to evaluate various touch functions (button, slider, wheel)
- Simple prototyping
- Use as a reference when designing boards or software
- Easily adjust the sensitivity by using QE for Capacitive Touch
- Easy operation with intuitive interface
- Easy to develop touch interfaces even for beginners with GUI
- Automatically output adjusted source code
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 1.22 MB 日本語 | Quick Start Guide | ||
| PDF 1.94 MB 日本語 | Application Note | ||
| PDF 2.22 MB 日本語 | Application Note | ||
| PDF 1.58 MB 日本語 | Application Note | ||
| PDF 2.33 MB 日本語 | Application Note | ||
| PDF 2.61 MB | Application Note | ||
| PDF 592 KB 日本語 | Application Note | ||
| PDF 8.01 MB 日本語 , 简体中文 | Application Note | ||
| PDF 1.92 MB 日本語 | Application Note | ||
| PDF 2.06 MB 日本語 | Application Note | ||
| PDF 2.06 MB 日本語 | Datasheet | ||
| PDF 446 KB 日本語 | Flyer | ||
| PDF 827 KB 日本語 | Manual - Hardware | ||
| ZIP 2.65 MB | Schematic | ||
| PDF 154 KB 日本語 | Tool News - Release | ||
| PDF 262 KB 日本語 | Tool News - Release | ||
| PDF 660 KB 日本語 , 简体中文 | White Paper | ||
17 items
|
|||
