16K x 9 SuperSync FIFO, 5.0V
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description

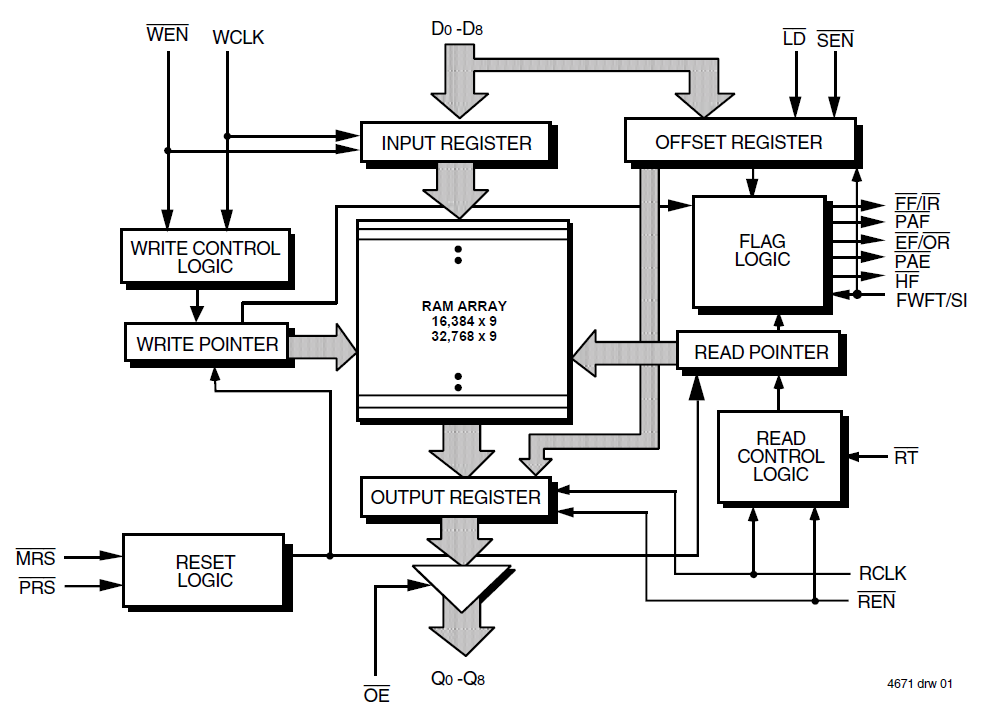

The 72261 is a 16K x 9 SuperSync FIFO memory with clocked read and write controls. The Frequency Select pin (FS) has been removed, thus it is no longer necessary to select which of the two clock inputs, RCLK or WCLK, is running at the higher frequency. The period required by the retransmit operation and the first word data latency period is now fixed and short. (The variable clock cycle counting delay associated with the latency period found on previous SuperSync devices has been eliminated on this SuperSync family.)
Features
- Pin-compatible with the 722x1 SuperSync FIFOs
- 10ns read/write cycle time (8ns access time)
- Fixed, low first word data latency time
- Auto power down minimizes standby power consumption
- Retransmit operation with fixed, low first word data latency time
- Empty, Full and Half-Full flags signal FIFO status
- Programmable Almost-Empty and Almost-Full flags
- Easily expandable in depth and width
- Independent Read and Write clocks (permit reading and writing simultaneously)
- Available in 64-pin TQFP and STQFP packages
- Industrial temperature range (–40C to +85C) is available
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF429 KB
|
Datasheet
|
||
PDF645 KB
|
End Of Life Notice
|
||
PDF123 KB
|
Guide
|
||
PDF611 KB
|
Product Change Notice
|
||
PDF611 KB
|
Product Change Notice
|
||
PDF95 KB
|
Product Change Notice
|
||
PDF50 KB
|
Product Change Notice
|
||
PDF24 KB
|
Product Change Notice
|
||
PDF164 KB
|
Product Change Notice
|
||
PDF94 KB
|
Product Change Notice
|
||
PDF290 KB
|
Product Change Notice
|
||
PDF80 KB
|
Product Change Notice
|
||
PDF26 KB
|
Product Change Notice
|
||
PDF150 KB
|
Product Change Notice
|
||
PDF65 KB
|
Product Change Notice
|
||
PDF150 KB
|
Product Change Notice
|
||
PDF49 KB
|
Product Change Notice
|
||
PDF48 KB
|
Product Change Notice
|
||
PDF47 KB
|
Product Change Notice
|
||
PDF274 KB
|
Product Change Notice
|
||
PDF44 KB
|
Product Change Notice
|
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
Buy / Sample |
|---|---|---|---|---|---|---|
| TQFP | 64 | I | Yes | Tray | Get Samples, | |
| TQFP | 64 | I | Yes | Reel | ||
| TQFP | 64 | C | Yes | Tray | Get Samples, | |
| TQFP | 64 | C | Yes | Reel | Get Samples, |
