Overview
Description

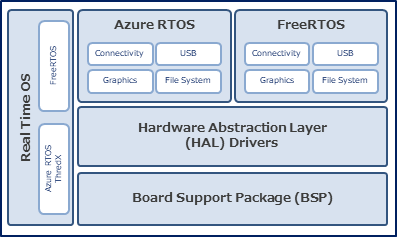

The Renesas RZ/A Flexible Software Package (FSP) is designed to provide easy-to-use, scalable, high-quality software for embedded system designs using RZ/A MPUs. The RZ/A FSP is based on an open software ecosystem of production-ready drivers, supporting FreeRTOS, Azure RTOS or bare-metal programming. It also includes a selection of other middleware stacks, providing great flexibility for migrating code from older systems or developing new applications from scratch. FSP and e² studio IDE can be used free of charge on any Renesas device.
download Download Latest FSP (v3.5.0):
FSP Platform Installer (Includes e² studio IDE, toolchain, and FSP packs):
FSP Standalone Installer (FSP packs for the users who only update the FSP and no e² studio update):
- Download from the Assets section of the GitHub
The installation instructions can be found here. All the FSP Releases and Patches can be found on GitHub.
Features
- By linking with the intuitive configurator of "e2 studio", which is a software-integrated development environment, and the code generation function, it is possible to proceed with real-time system development efficiently and quickly.
- Support both RTOS applications and bare metal applications.
Release Information
- RZ/A Flexible Software Package V3.5.0 released (May 19, 2025)
- RZ/A FSP Example Projects V3.5.0 released (May 19, 2025)
- RZ/A Flexible Software Package V3.4.0 released (Feb. 28, 2025)
- RZ/A Flexible Software Package V3.3.0 released (Dec. 20, 2024)
- RZ/A Flexible Software Package V3.2.0 released (Sep. 30, 2024)
- RZ/A Flexible Software Package V3.1.0 released (Jul. 31, 2024)
- RZ/A Flexible Software Package V3.0.0 released (Apr. 26, 2024)
- RZ/A Flexible Software Package V2.0.2 released (Feb. 29, 2024)
- RZ/A Flexible Software Package V2.0.1 released (Sep. 29, 2023)
- RZ/A Flexible Software Package V2.0.0 released (Jun. 30, 2023)
- RZ/A Flexible Software Package V1.2.1 released (Apr. 14, 2023)
- RZ/A Flexible Software Package V1.2.0 released (Dec. 28, 2022)
- RZ/A Flexible Software Package V1.1.0 released (Sep. 30, 2022)
- RZ/A Flexible Software Package V1.0.0 released (Jul. 28, 2022)
Target Devices
Downloads
Featured
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Software & Tools - Software | EXE 1,756.94 MB | |
| Software & Tools - Software | EXE 46.04 MB | |
2 items
|
||
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Application Note | PDF 8.39 MB | |
| Manual - Software | ||
| Application Note | PDF 246 KB | |
| Application Note | PDF 11.43 MB | |
| Release Note | PDF 205 KB | |
5 items
|
||
Design & Development
Sample Code
Related Boards & Kits
RZ/A3UL Evaluation Board Kit
This evaluation board kit is ideal for evaluating RZ/A3UL. The RZ/A3UL Evaluation Board Kit consists of a module board (SOM) and a carrier board. The module board...
Videos & Training
RZ/A FSP Azure RTOS Project - Getting Started
This video introduces how to create an Azure RTOS project using the RZ/A Flexible Software Package. And, as an example of Azure RTOS settings, it introduces how to change the project configuration and control LED with button operations.
00:00 Opening
00:20 Board and software information
00:50 Create Azure RTOS project
04:58 Modify the project configuration
Related software and tools:
Video List
Additional Details
Operating Environment
| Integrated development environment | e2 studio Integrated Development Environment, default toolchain is GCC Arm Embedded |
|---|---|
| Supported boards | RZ/A3UL Evaluation Board Kit, EK-RZ/A3M |
| Emulator | SEGGER (J-Link Series), KMC (PARTNER-Jet2) |
RZ/A Flexible Software Package v3.5.0 Supported Driver Software
| Category | Function | RZ/A3UL | RZ/A3M |
|---|---|---|---|
| OS | FreeRTOS(*1) | check | check |
| Azure RTOS | check | check | |
| Memory I/F | ROM | QSPI / OctaFlash™ (*2) | QSPI |
| Debugger | SEGGER (*3) / KMC (*4) | SEGGER (*3) / KMC (*4) | |
| Driver | RZ/A Initial Program Loader (IPL) | check | check |
| Board Support Package (BSP) for FSP | check | check | |
| General Timer (GTM) | check | check | |
| IRQ (External interrupt) | check | check | |
| DMAC | check | check | |
| Image Scaling Unit (ISU) | check | - | |
| LCDC | check | check | |
| MIPI-DSI | - | check | |
| D/ave2D (DRW) | - | check | |
| Camera Data Receiving Unit (CRU) | check | - | |
| SDHI | check | check | |
| USB 2.0 Host (HID) / (MSC) | check | check | |
| USB 2.0 Function (CDC) | check | check | |
| Ethernet | check | - | |
| I2C (master/slave) | check | check | |
| SCIFA (UART) | check | check | |
| Renesas Serial Peripheral Interface (RSPI) | check | check | |
| CAN FD Interface (RS-CANFD) | check | - | |
| General Purpose Input Output Port (GPIO) | check | check | |
| SSI (I2S) (master/slave) | check | check | |
| Watchdog Timer (WDT) | check | check | |
| A/D Converter | check | - | |
| MTU3a | check | check | |
| SCIg | check | check |
*1: FreeRTOS™ is a trademark of Amazon Web Services, Inc.
*2: OctaFlash™ is a trademark of Macronix International Co., Ltd.
*3: https://www.segger.com/ (J-LINK)
*4: https://www.kmckk.co.jp/ (PARTNER-Jet2)
