Package Information
| Lead Count (#) | 100 |
| Pkg. Code | QTD |
| Pitch (mm) | 0.4 |
| Pkg. Type | TQFP |
| Pkg. Dimensions (mm) | 11.99 x 11.99 x 0.00 |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) |
Product Attributes
| Lead Count (#) | 100 |
| Carrier Type | Tray |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| Pb Free Category | Pb-Free 100% Matte Tin Plate w/Anneal-e3 |
| Temp. Range | 0 to +70°C |
| Function | Video Decoder |
| Length (mm) | 12 |
| MOQ | 119 |
| Pitch (mm) | 0.4 |
| Pkg. Dimensions (mm) | 12.0 x 12.0 x 0.00 |
| Pkg. Type | TQFP |
| Qualification Level | Standard |
| Thickness (mm) | 0 |
| Width (mm) | 12 |
Description

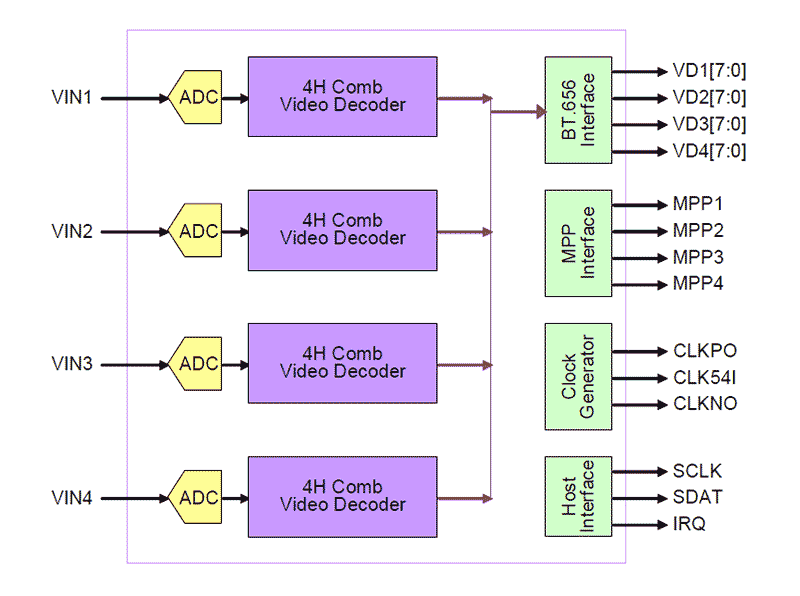

The TW2816 includes four high quality NTSC/PAL video decoders that convert analog composite video signals to digital component YCbCr data for security applications. The TW2816 contains four 10 bit ADCs and proprietary clamp and gain controllers and utilizes 4H comb filters for separating luminance & chrominance to reduce cross noise artifacts. The TW2816 adopts image enhancement techniques such as IF compensation filter, CTI and programmable peaking.
