Overview
Description

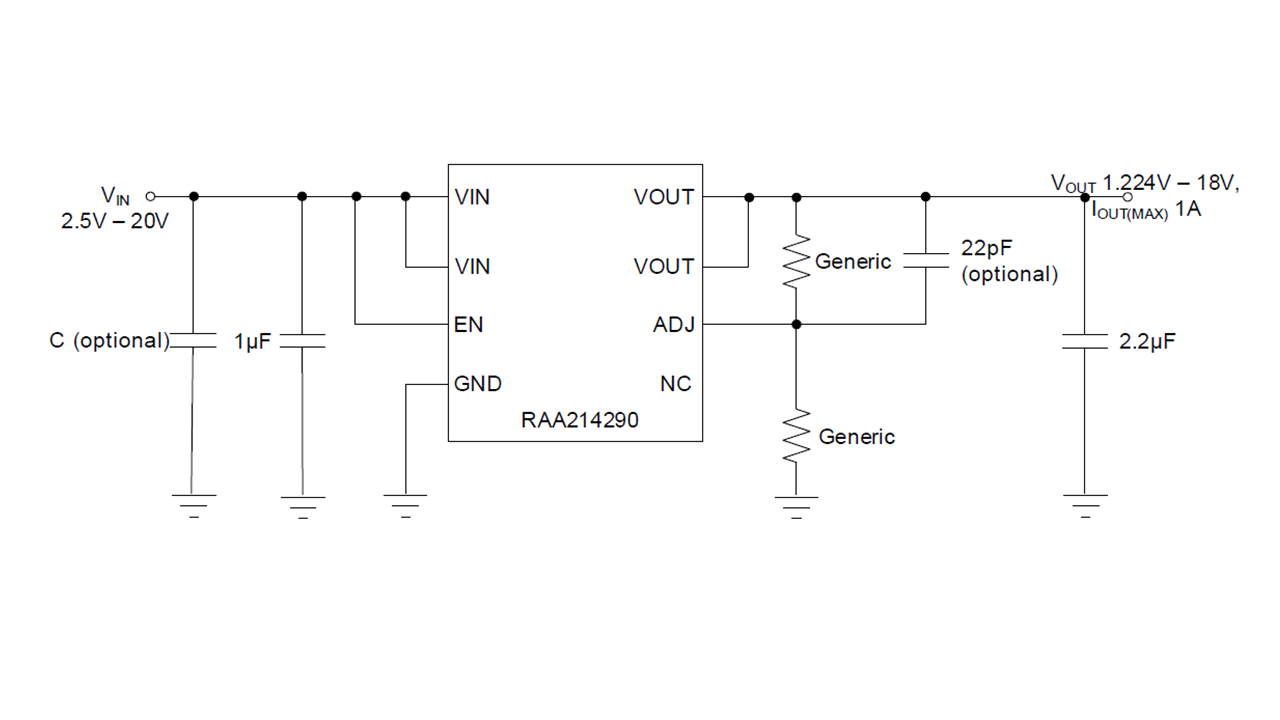

The RAA214290 is a low-dropout linear voltage regulator that operates from 2.5V to 20V and provides up to 1A of output current with a typical dropout of 269mV. The output voltage is adjustable with external feedback resistors anywhere from 1.224V to 18V.
Features
- Wide Input Voltage Range: 2.5V to 20V
- Max Output Current: 1A
- Dropout Voltage: 540mV typical at 1A
- Low Ground Current
- Output Voltage Adjustable: 1.224V to 18V
- Excellent Line and Load Regulation
- Stable with an output capacitor as low as 2.2μF
- Short-Circuit Current Limit with fold-back
- Over-Temperature Shutdown Protection

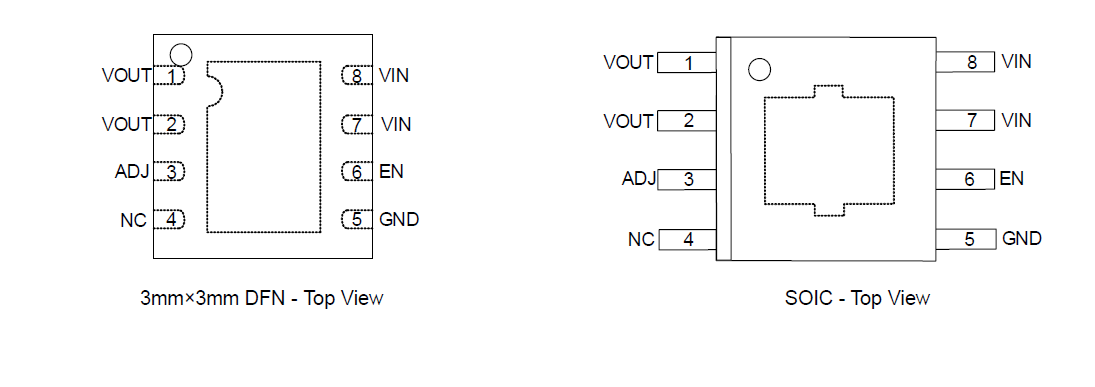

- 8-Ld DFN (3mm×3mm) and SOIC package
Comparison
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 2.26 MB | |
1 item
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| iSim:PE Offline Simulation Tool iSim Personal Edition (iSim:PE) speeds the design cycle and reduces risk early in any project, identifying parts that can be used in current as well as next-generation designs.
|
Simulator | Renesas |
1 item
|
||
Boards & Kits
Evaluation
RTKA214290DE0010BU
Active
LDO Linear Regulator Evaluation Board with 2.5V to 20V Vin Range, Adjustable Output 1A
The RTKA214290DE0010BU demonstration board provides a simple platform for demonstrating the RAA214290 linear regulator.
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.
