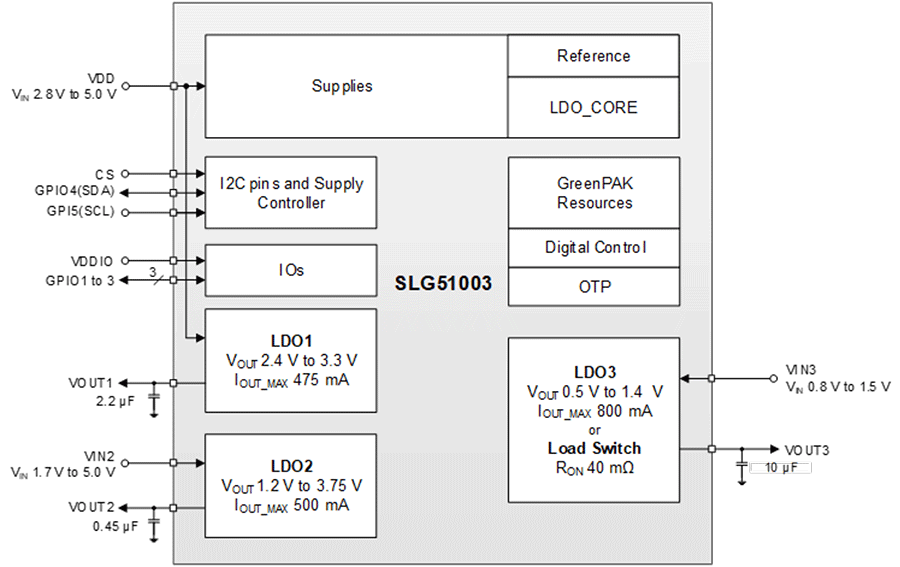

The SLG51003V 3-channel high PSRR LDO Power GreenPAK™ programmable mixed-signal matrix contains three compact and customizable low-dropout regulators and is designed for advanced sensor applications and other battery-powered equipment. The device is offered in a small plastic TQFN package for an affordable PCB solution.
The SLG51003V features high PSRR and low noise performance, high peak current capability on all channels, a user pin-selectable I²C slave address, and customizable configurations and controls for advanced scenarios and power sequencing. Easy-to-use free development software via the Go Configure™ Software Hub is also available to provide developers with a fast ramp to high-volume production.
Features
- 3-channel high-performance LDO IC
- Separate input supply and enable for flexible power configurations
- Output current range max 800mA (LDO_LV)
- LDO_LV channel has bypass mode
- High PSRR of 98.5dB at 1kHz and 68dB at 1MHz (LDO_HP)
- Ultra-low output voltage noise of 16µV (LDO_HP)
- Low dropout voltage of 10mV per 100mA of load (LDO_LV)
- Adjustable slew rate and current limit
- Customizable 1.2V to 5V GPIOs/I²C, configurations, controls, and power sequencer
- GreenPAK™ Combo Function and Delay Macrocell resources
- 300nA shutdown mode IQ
- Package: 14-pin TQFN (2.0mm x 2.2mm x 0.55mm)
