Features
- Clock outputs from 10MHz to 133MHz
- Zero input-output delay
- Eight low-skew (< 200 ps) outputs
- Device-to-device skew < 700ps
- Full CMOS outputs with 25mA output drive capability at TTL levels
- 5V tolerant FBIN and CLKIN pins
- Tri-state mode for board-level testing
- Advanced, low-power, sub-micron CMOS process
- Operating voltage of 3.3V
- Industrial temperature range available
- Packaged in 16-pin SOIC and TSSOP packages
- Pb (lead) free package
- Industrial and commercial temp operation

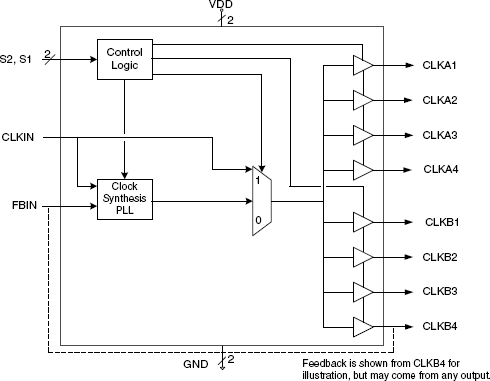

MK2308-1H - Block Diagram
Description
The MK2308-1H is a low phase noise, high-speed PLL-based, 8-output, low skew zero delay buffer. Based on Renesas' proprietary low jitter Phase-Locked Loop (PLL) techniques, the device provides eight low skew outputs at speeds up to 133MHz at 3.3V. The outputs can be generated from the PLL (for zero delay), or directly from the input (for testing), and can be set to tri-state mode or to stop at a low level. For normal operation as a zero delay buffer, any output clock is tied to the FBIN pin.
| Part Number | Status | Samples | Stock | Package | Lead Count (#) | Carrier Type | Moisture Sensitivity Level (MSL) | Qty. per Carrier (#) | Package Area (mm²) | Pitch (mm) | Pkg. Dimensions (mm) | Qty. per Reel (#) | Pb (Lead) Free | Pb Free Category | Temp. Range (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK2308G-1HILF | Obsolete | N/A | Out of Stock | TSSOP | 16# | Tube | 1 | 96# | 22mm² | 0.65mm | 5.0 x 4.4 x 1.0 | 0 | Yes | e3 Sn | -40 to 85°C |
| MK2308G-1HILFTR | Obsolete | N/A | Out of Stock | TSSOP | 16# | Reel | 1 | 0 | 22mm² | 0.65mm | 5.0 x 4.4 x 1.0 | 2500# | Yes | e3 Sn | -40 to 85°C |
| MK2308G-1HLF | Obsolete | N/A | Out of Stock | TSSOP | 16# | Tube | 1 | 96# | 22mm² | 0.65mm | 5.0 x 4.4 x 1.0 | 0 | Yes | e3 Sn | 0 to 70°C |
| MK2308G-1HLFTR | Obsolete | N/A | Out of Stock | TSSOP | 16# | Reel | 1 | 0 | 22mm² | 0.65mm | 5.0 x 4.4 x 1.0 | 2500# | Yes | e3 Sn | 0 to 70°C |
| MK2308S-1HLF | Obsolete | N/A | Out of Stock | SOIC | 16# | Tube | 3 | 48# | 38.6mm² | 1.27mm | 9.9 x 3.9 x 1.5 | 0 | Yes | e3 Sn | 0 to 70°C |
| MK2308S-1HLFTR | Obsolete | N/A | Out of Stock | SOIC | 16# | Reel | 3 | 0 | 38.6mm² | 1.27mm | 9.9 x 3.9 x 1.5 | 2500# | Yes | e3 Sn | 0 to 70°C |
