Features

  • CPU: Arm® Cortex®-R52 x 2, maximum operating frequency 800MHz
  • 3-port Gigabit Ethernet switch with TSN
  • IEEE 1588 UDP/IPv4 1-step E2E TC
  • Trigonometric function accelerator
  • Memory: Tightly coupled memory 576KB (with ECC), internal RAM 2MB (with ECC)
  • Industrial Ethernet: EtherCAT®, PROFINET® RT/IRT, EtherNet/IP™, etc.
  • Encoder interface: 2ch (supports A-format™, EnDat, BiSS®, HIPERFACE® DSL, FA-CODER)
  • Motor current loop < 1µs
  • Octa/Quad SPI w/ On-The-Fly-Decryption (OTFD)
  • PWM: 3-phase complementary PWM output for dual motor control
  • ADC: 12-bit x 2 units
  • ΔΣ I/F: 6ch
  • Package: 320-pin BGA, 225-pin BGA
  • Voltage: Core 1.1V, I/O 3.3/1.8V

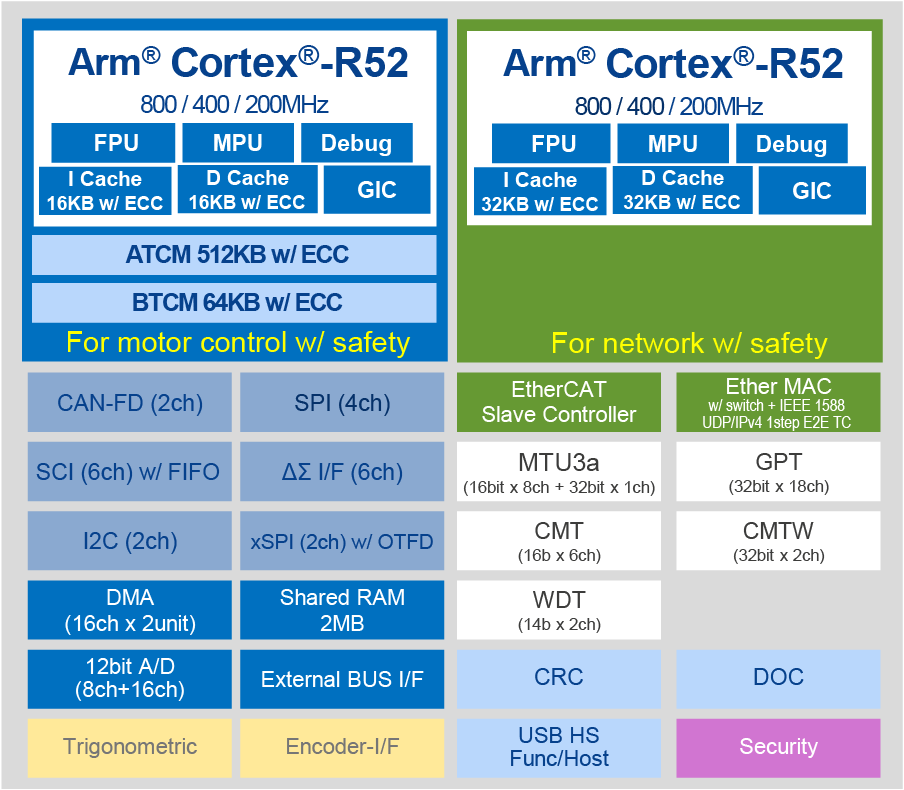

Description

RZ/T2ME is an industry-leading high-performance multi-function MPU that realizes high-speed processing, high precision control industrial equipment such as AC servos and industrial motors. Powered by dual Arm® Cortex®-R52 cores with a maximum frequency of 800MHz for real-time control and embedded with a large tightly coupled memory (576KB) directly connected to the CPU to realize high-performance real-time processing, RZ/T2ME enables low latency access by arranging the peripherals for motor control to the LLPP (Low Latency Peripheral Port) that is directly connected to the CPU. RZ/T2ME has a multi-protocol encoder interface that supports various absolute encoder protocols such as A-format™, EnDat, and BiSS®. Additionally, RZ/T2ME has a 3-port Gigabit Ethernet switch supporting the TSN standard and EtherCAT slave controller. RZ/T2ME realizes high speed and highly precise motor control and industrial Ethernet communication such as EtherCAT, PROFINET RT/IRT and EtherNet/IP on a single chip. It also has enhanced security features, such as On-The-Fly-Decryption (OTFD) support.

Parameters

Attributes Value
CPU Architecture Arm
Main CPU Cortex-R52 x 2
Program Memory (KB) 0
RAM (KB) 2048
Carrier Type Bulk (Tray), Full Carton (Tray)
Supply Voltage (V) 3.135 - 3.465
I/O Ports 135, 194
NPU No
DRAM I/F SDRAM
3D GPU No
Temp. Range (°C) Tj = -40 to +125
Operating Freq (Max) (MHz) 800
Ethernet speed 10M/100M/1G
Ethernet (ch) 3
EtherCat (ch) (#) 1
USB FS (host ch/device ch) ( 1 / 1 )
USB HS (host ch/device ch) ( 1 / 1 )
USB SS (host ch/device ch) ( 0 / 0 )
PCI Express (generation and ch) No
SCI or UART (ch) 6
SPI (ch) 4
I2C (#) 3
CAN (ch) 0
CAN-FD (ch) 2
Wireless No
SDHI (ch) 0
High Resolution Output Timer No
PWM Output (pin#) 25
32-Bit Timer (ch) 20
16-Bit Timer (ch) (#) 14
8-Bit Timer (ch) 0
Standby operable timer No
Asynchronous General Purpose Timer / Interval Timer (ch) 0
16-Bit A/D Converter (ch) 0
14-Bit A/D Converter (ch) 0
12-Bit A/D Converter (ch) 12, 24
10-Bit A/D Converter (ch) 0
24-Bit Sigma-Delta A/D Converter (ch) 0
16-Bit D/A Converter (ch) 0
12-Bit D/A Converter (ch) 0
10-Bit D/A Converter (ch) (#) 0
8-Bit D/A Converter (ch) 0
Capacitive Touch Sensing Unit (ch) 0
Graphics LCD Controller No
MIPI Interfaces (DSI) (ch) 0
MIPI Interfaces (CSI) (ch) 0
Image Codec No
Segment LCD Controller No
Security & Encryption AES, RSA, ECC, Hash, TRNG, Secure boot, OTFD, Unique ID

Package Options

Pkg. Type Pkg. Dimensions (mm) Lead Count (#) Pitch (mm)
LFBGA 13 x 13 x 1.4 225 0.8
LFBGA 17 x 17 x 1.4 320 0.8

Applications

  • AC servo
  • Industrial motor
  • Inverter
  • Robot
  • Motion controller
