Overview
Description

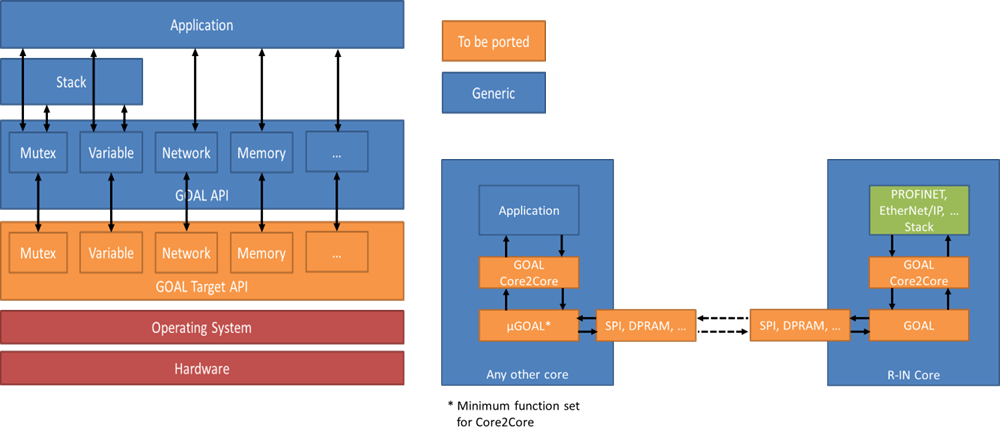

Port’s GOAL (Generic Open Abstraction Layer) technology delivers the perfect way to successfully integrate real-time communication – one hardware, one middleware, enables you to implement communication standards into the customer’s product, unify access to a variety of systems, and reduce porting effort for all applications. GOAL scales perfectly with the available resources ranging from bare metal systems over RTOS like FreeRTOS, up to Linux. Support is available for MCUs/MPUs with EtherMAC and/or EtherCAT slave controller such as the RX72M MCU, RZ/N1, RZ/N2L, RZ/T1, and RZ/T2M MPUs.
Features
- Building block middleware for industrial communication
- Powerful socket for protocols like PROFINET, EtherNet/IP, EtherCAT, Modbus/TCP, CC-Link IE Field Basic, OPC UA, POWERLINK, CC-Link IE TSN
- TSN supported - connector to IoT / Industry 4.0
- Powerful services around networking: timer, memory management, flash handling
- Network management such as IP-Address management and others
- Engineering tools for code generation and master emulation
Comparison
Applications
Related Boards & Kits
CONNECT IT! ETHERNET RZ/N
CONNECT IT! ETHERNET RZ/N is the perfect solution kit for developers new to developing with the RZ/N1. The kit comes with not only an evaluation board but also a JTAG emulator and various sample software. By setting up the board according to the startup manual, you can evaluate Linux OS or...
Renesas Starter Kit+ for RZ/T1
The Renesas Starter Kit+ for RZ/T1 is the perfect starter kit for developers who are new to the RZ/T1. The kit includes an LCD display module, J-LINK Lite debugging emulator, and e2 studio integrated development environment so you can start evaluating the RZ/T1 immediately after opening the box....
Renesas Starter Kit+ for RZ/T2M
Renesas Starter Kit+ for RZ/T2M is an evaluation and development kit for the RZ/T2M MPU. Since it has an on-board emulator, you can start evaluation by simply connecting the bundled cable with your PC. This board includes rich functional ICs such as Gigabit Ethernet PHY and Octal Flash, and you...
Renesas Starter Kit+ for RZ/N2L
Renesas Starter Kit+ for RZ/N2L is for evaluation or development using the RZ/N2L MPU.
With the on-board emulator, you can start evaluation by simply connecting the bundled cable with your PC. This product has rich functional ICs such as Gigabit Ethernet PHY and Octal Flash, you can fully...
CPU Card with RDC-IC for RX72M MCU Group
This product is a CPU card for motor control with RX72M. It can control BLDC motors and stepping motors when used in combination with the corresponding inverter board.
Supported inverter boards (kits)
- Evaluation System for BLDC Motor (P/N: RTK0EMX270S00020BJ)
- Evaluation System for...
