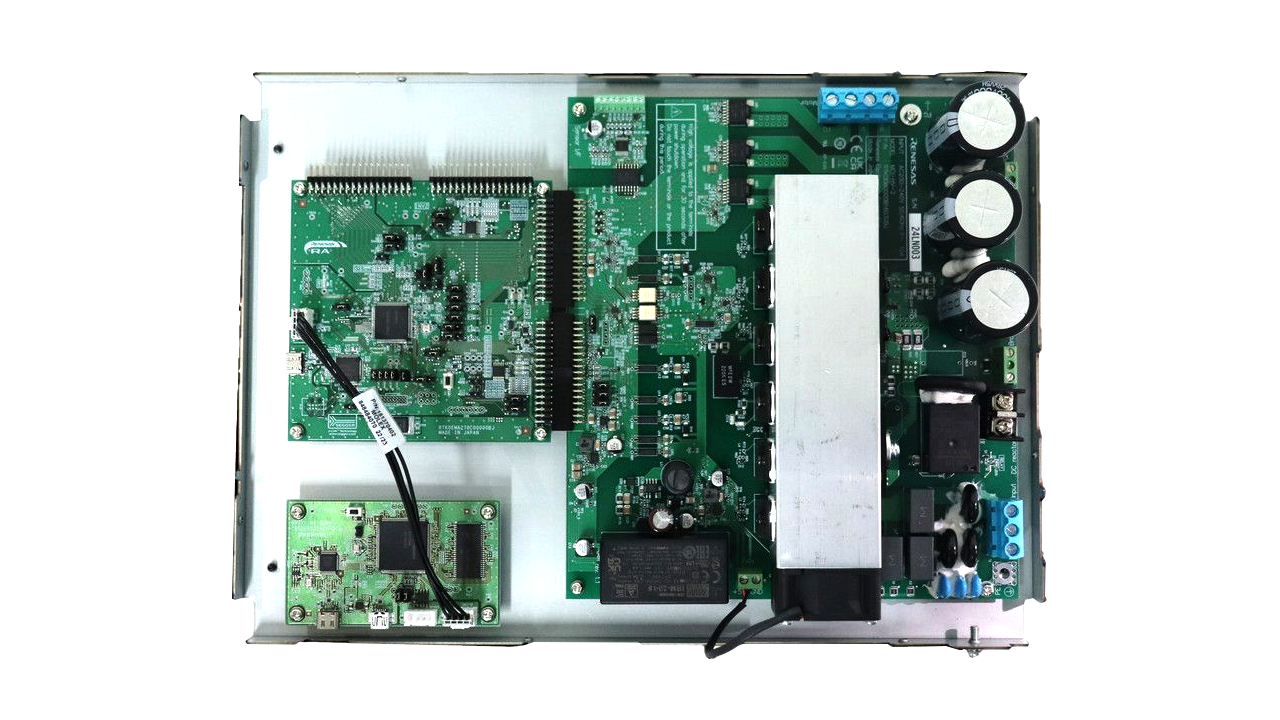

An inverter board that allows users to evaluate motor control using a high-voltage brushless DC (BLDC)/Induction motor at ease. By combining with a compatible CPU board, users can immediately start the evaluation of motor control.
This product supports only 3-phase AC200 - 240V 50Hz/60Hz of input voltage.
Supported CPU board : MCB-RA6T2 included in MCK-RA6T2
Supported communication board: MC-COM
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 1.13 MB 日本語 | |
| Application Note | PDF 2.32 MB 日本語 | |
| Schematic | ZIP 988 KB | |
3 items
|
||
| Software title
|
Software type
|
Company
|
|---|---|---|
| Renesas Motor Workbench Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
|
Solution Toolkit | Renesas |
1 item
|
||
The MCK-RA6T2 is a development kit that enables easy evaluation of motor control using permanent magnet synchronous motors (brushless DC motors). With this product and...
Applied Filters:

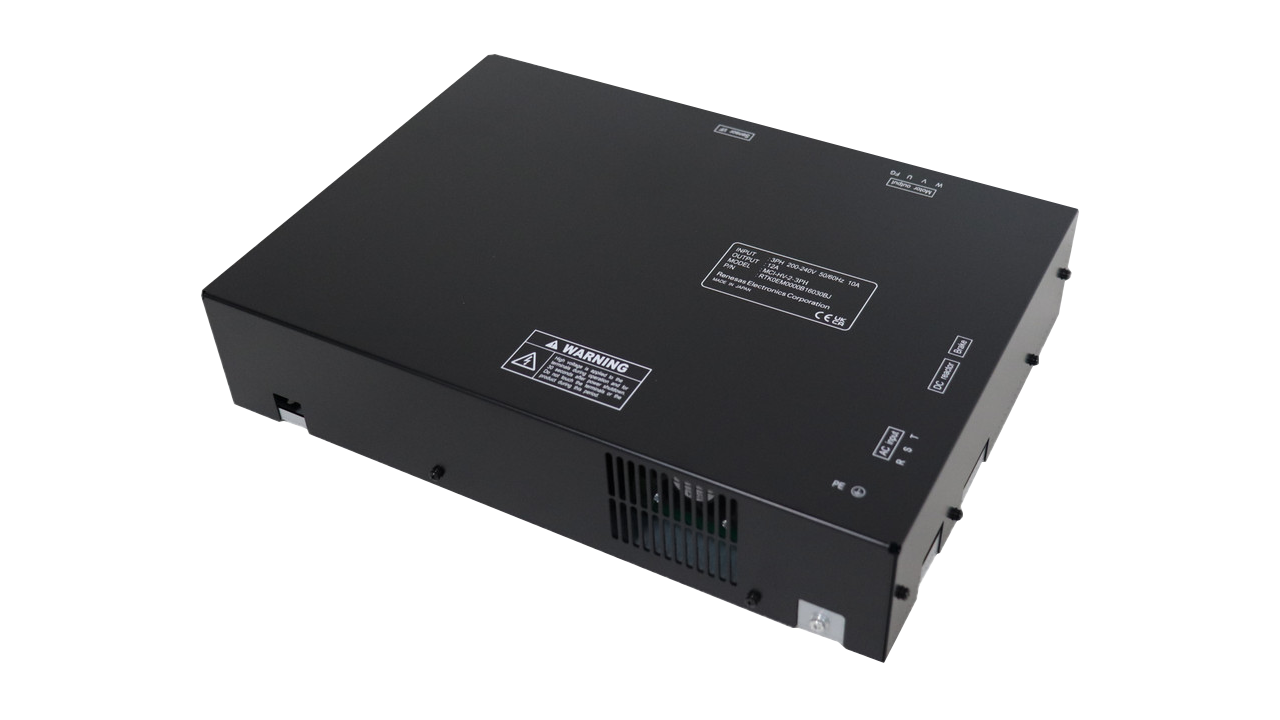

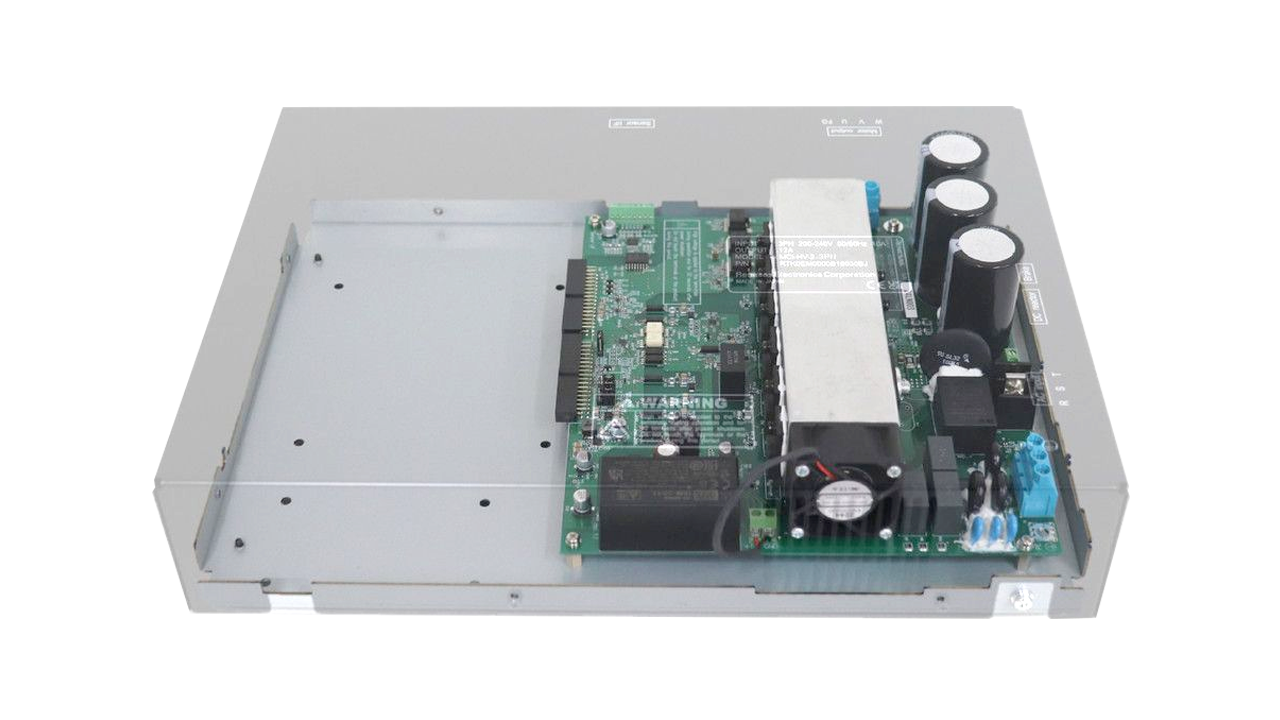

The MCI-HV-2-3PH is an inverter board designed to control industrial three-phase BLDC and induction motors when paired with a compatible CPU board. It features a protective enclosure and a fan, ensuring safe motor control evaluation.
