R-IN32M3 Module Adapter Board
The Renesas R-IN32M3 Module Solution Kit is the perfect “accelerator” for developers who are new to the world of Industrial Ethernet. The certified hardware and...
Featured Documents:
Overview
Description

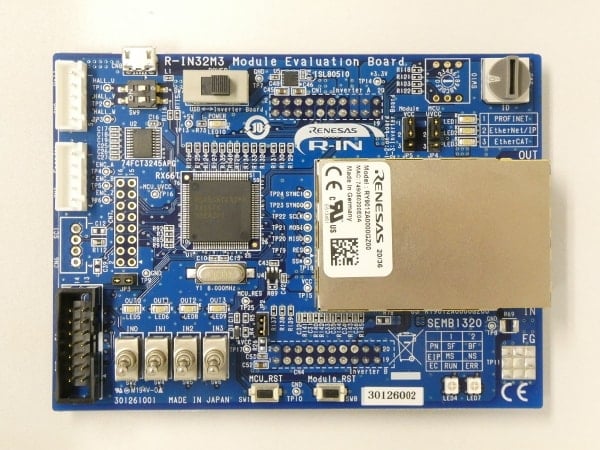

All-in-one evaluation board with R-IN32M3 module and host CPU RX66T. Easy to start the evaluate and application development of industrial Ethernet such as PROFINET, EtherNet/IP, EtherCAT and ModbusTCP.
This evaluation board is compatible with the Renesas CPU card, so it can be connected to the inverter board included in the "24V motor control evaluation system for RX23T" to evaluate motor control via an industrial network.
This product is manufactured by Shimafuji Electric Co., Ltd.
Sample Software
Evaluation sample software for Renesas MCUs: Renesas R-IN32M3 Module Sample Package Rev.1.05 (ZIP | English, 日本語)
Related Products
Adapter board YCONNECT-IT-I-RJ4501 for evaluation by connecting with existing RA and RL family MCU kit.
Features
- Ethernet communication is possible via USB power supply, even for this CPU card alone.
- Equipped with an RX66T as the host CPU
- Equipped with a protocol status LED
- Motor control operation via PROFINET, EtherNet/IPTM communication, including a motor-controlled sample program (sensorless vector control) for RX66T is possible as a host CPU sample application
- This can be connected to the inverter board of the 24V Motor Control Evaluation System for RX23T (*Some functions will not be available.)
Applications
Design & Development
Sample Code
Sample Code
Filters
|
||
|---|---|---|
| Type | Title | Date Date |
| Sample Code |
[Software=RX Driver Package|V1.42;RA Flexible Software Package|v5.3.0],[Toolchains=CC-RX|V3.06.01;GNU Arm Embedded|V13.2;GNURX|V8.3.0.202311;GCC for Renesas RL78|4.9.2.202201]
ZIP
289.57 MB
日本語
Application:
Industrial
Compiler:
CC-RX, GNU ARM Embedded, GNURL78, GNURX
Function:
Application Example, Communication Interface, Evaluation Kit, Protocol, Software Package
IDE:
e2 studio
|
|
| Sample Code |
ZIP
346.51 MB
日本語
Application:
Industrial
Compiler:
CC-RX, GNU
Function:
Communication Interface
IDE:
e2 studio
|
|
2 items
|
||
Related Boards & Kits
24V Motor Control Evaluation System for RX23T
The 24V Motor Control Evaluation System for RX23T offered by Renesas makes it easy for users to evaluate motor solutions.
This product is a discontinued product....
