87001-01

Obsolete

LVCMOS/LVTTL Clock Divider

ICS87001-01 Datasheet

Overview

The ICS87001-01 is a low skew, ÷1, ÷2, ÷3, ÷4, ÷5, ÷6, ÷8, ÷16 LVCMOS/LVTTL Fanout Buffer/Divider. The ICS87001-01 has selectable clock inputs that accept single ended input levels. Output enable pin controls whether the output is in the active or high impedance state. The ICS87001-01 is characterized at 3.3V, 2.5V and mixed 3.3V/2.5V, 3.3V/1.8V, 2.5V/1.8V input/output supply operating modes.Guaranteed part-to-part skew characteristics make the ICS87001-01 ideal for those applications demanding well defined performance and repeatability.
87001-01 - Block Diagram

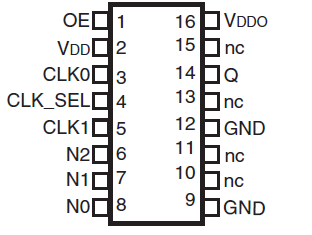

87001-01 - Pinout
87001-01 - Block Diagram
87001-01 - Pinout
  • One LVCMOS / LVTTL output
  • Selectable LVCMOS / LVTTL clock inputs
  • Maximum output frequency: 250MHz
  • Part-to-part skew: 135ps (typical)
  • Power supply modes:
    Core/Output
    3.3V/3.3V
    3.3V/2.5V
    3.3V/1.8V
    2.5V/2.5V
    2.5V/1.8V
  • 0°C to 70°C ambient operating temperature
  • Lead-free (RoHS 6) packaging
