Overview
Description
The 5PB1204 is a high-performance TCXO/LVCMOS clock fanout buffer with individual OE pins for each output. The CLKIN pin can accept either a square wave (LVCMOS) or a clipped sine wave (such as TCXO clipped sine wave output) as input.
The 5PB1204 has industry-leading low jitter and extremely low current consumption, making it ideal for smart mobile devices.
Features
- Extremely low operating and standby current consumption
- Low RMS Additive Phase jitter
- 1.8V power supply voltage
- Four outputs with individual Output Enable pin
- One input
- OE_OSC control pin to enable/disable reference TCXO / XO

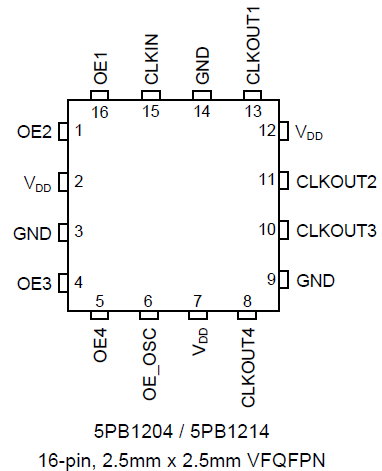

- Small 16-pin VFQFPN package
- Extended temperature range (-40 °C to +105 °C)
Comparison
Applications
- Smart mobile handsets
- RF and baseband peripheral clock distribution
- Automotive
