Features
- Feedback pins for input to output synchronization
- Spread Spectrum tolerant inputs;
- Auto PD when input signal is at a certain logic state

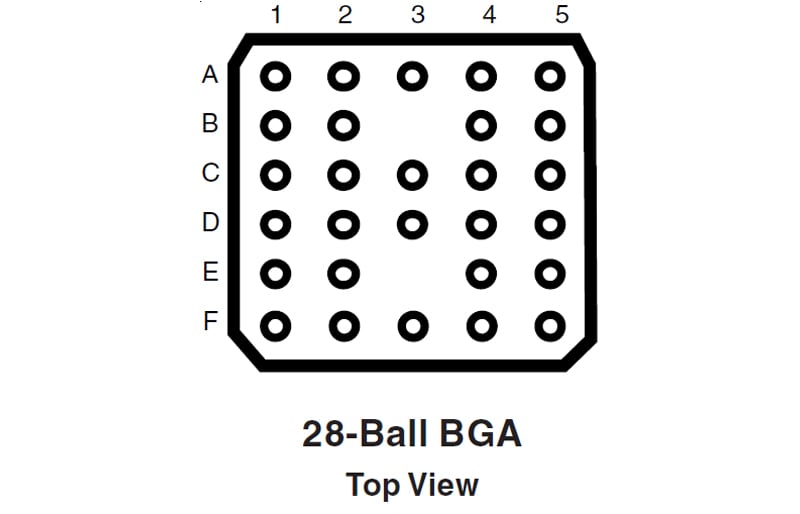

97ULP844A Pin Diagram
Description
Low skew, low jitter PLL clock driver; 1 to 4 differential clock distribution (SSTL_18)
| Part Number | Status | Samples | Stock | Package | Lead Count (#) | Temp. Grade | Pb (Lead) Free | Carrier Type |
|---|---|---|---|---|---|---|---|---|
| 97ULP844AH | Obsolete | N/A | Out of Stock | CABGA | 28# | C | No | Tray |
| 97ULP844AHLF | Obsolete | N/A | Out of Stock | CABGA | 28# | C | Yes | Tray |
| 97ULP844AHLFT | Obsolete | N/A | Out of Stock | CABGA | 28# | C | Yes | Reel |
| 97ULP844AHT | Obsolete | N/A | Out of Stock | CABGA | 28# | C | No | Reel |
Loading
Log in required to subscribe
- End Of Life NoticePDF 592 KB 7WDXRDKU4E7E-5-60947 Aug 25, 2016
- End Of Life NoticePDF 545 KB 7WDXRDKU4E7E-5-56802 Feb 11, 2014
- End Of Life NoticePDF 544 KB 7WDXRDKU4E7E-5-56689 Jan 26, 2014
- Product Change NoticePDF 398 KB 7WDXRDKU4E7E-5-56280 Oct 21, 2013
