Features
- Third generation FemtoClock® technology
- Low phase noise zero delay buffer
- Low skew outputs
- One LVCMOS/LVTTL clock input
- Two LVCMOS/LVTTL outputs
- Phase noise: -125dBc/Hz @1kHz offset
- -130dBc/Hz @100kHz offset
- Cycle-to-cycle jitter: 60ps (maximum)
- 0°C to 70°C ambient operating temperature
- Full 3.3V supply voltage
Description

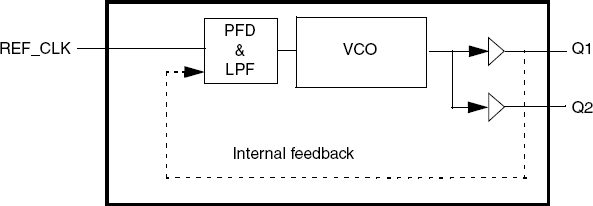

The 87002-05 is a 1:2 LVCMOS/LVTTL low phase noise Zero Delay Buffer and is optimized for audio frequencies. The device uses third generation FemtoClock® Technology for an optimum of high frequency and excellent phase jitter performance, combined with a low power consumption. The device utilizes an internal feedback loop therefore eliminating the complexity of an external feedback loop. The device utilizes a 3.3V supply and is packaged in a small, lead-free (RoHS 6) 8-lead SOIC package.
