Overview

Description

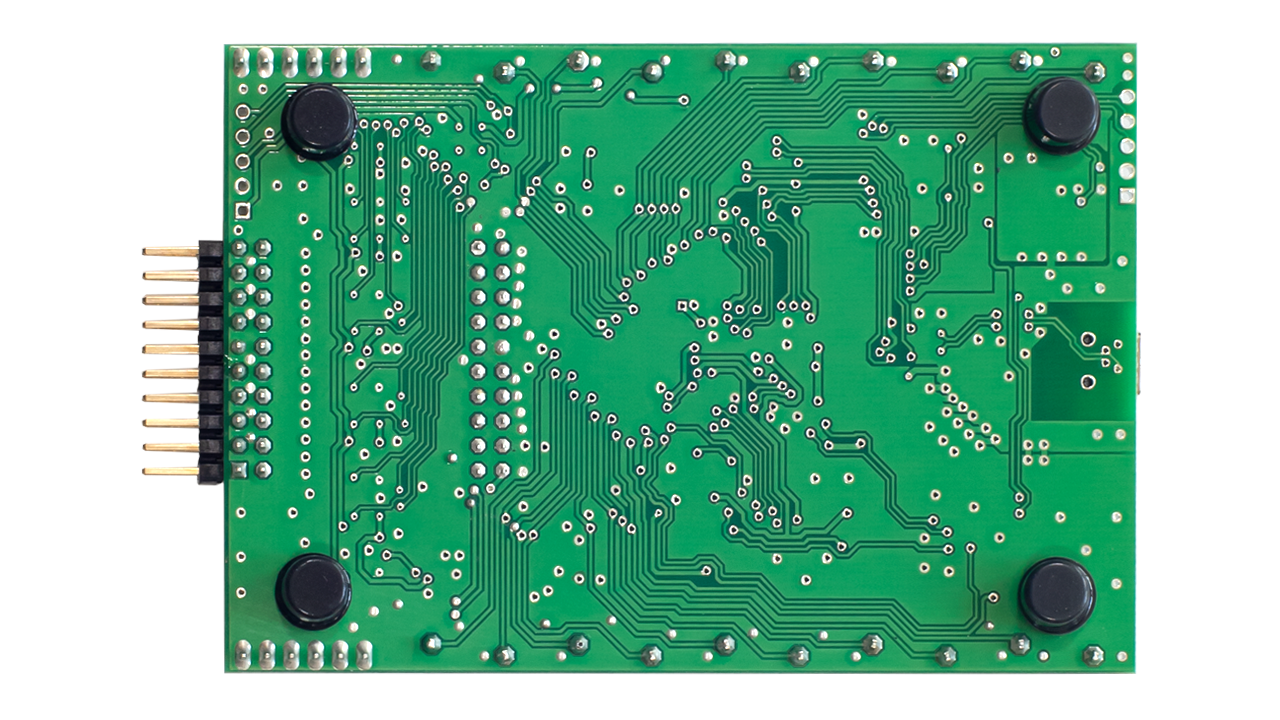

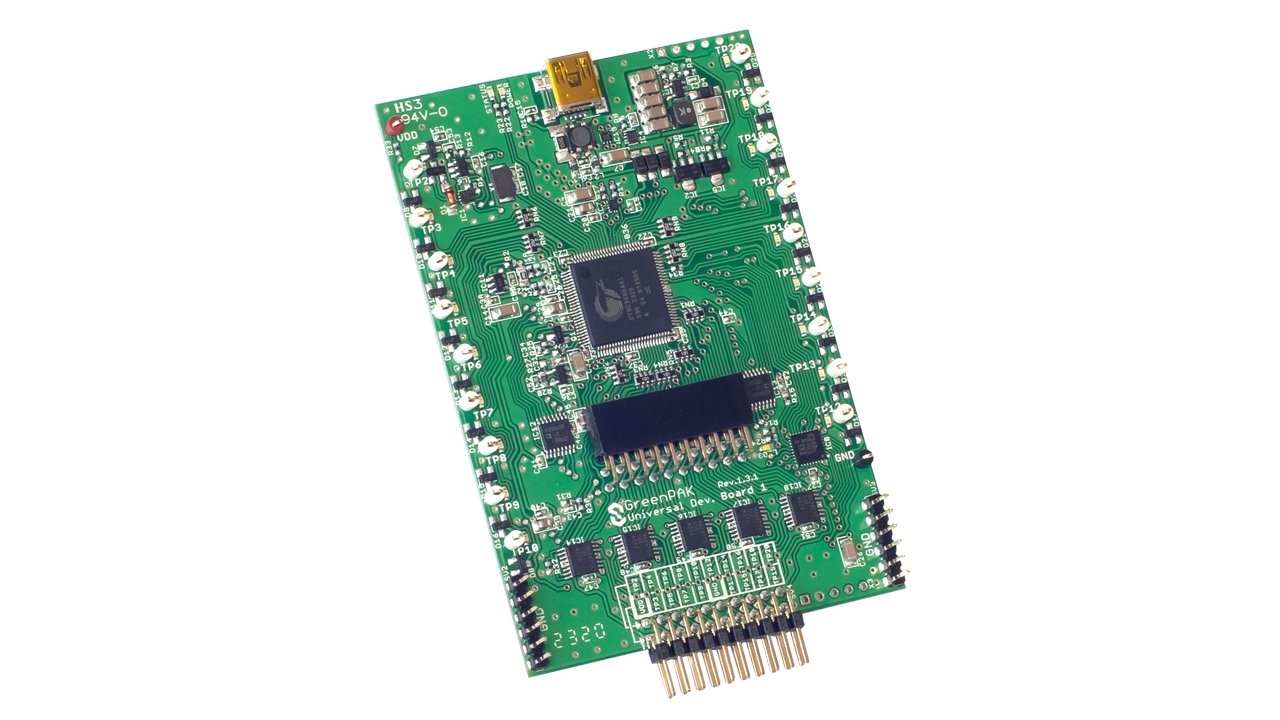

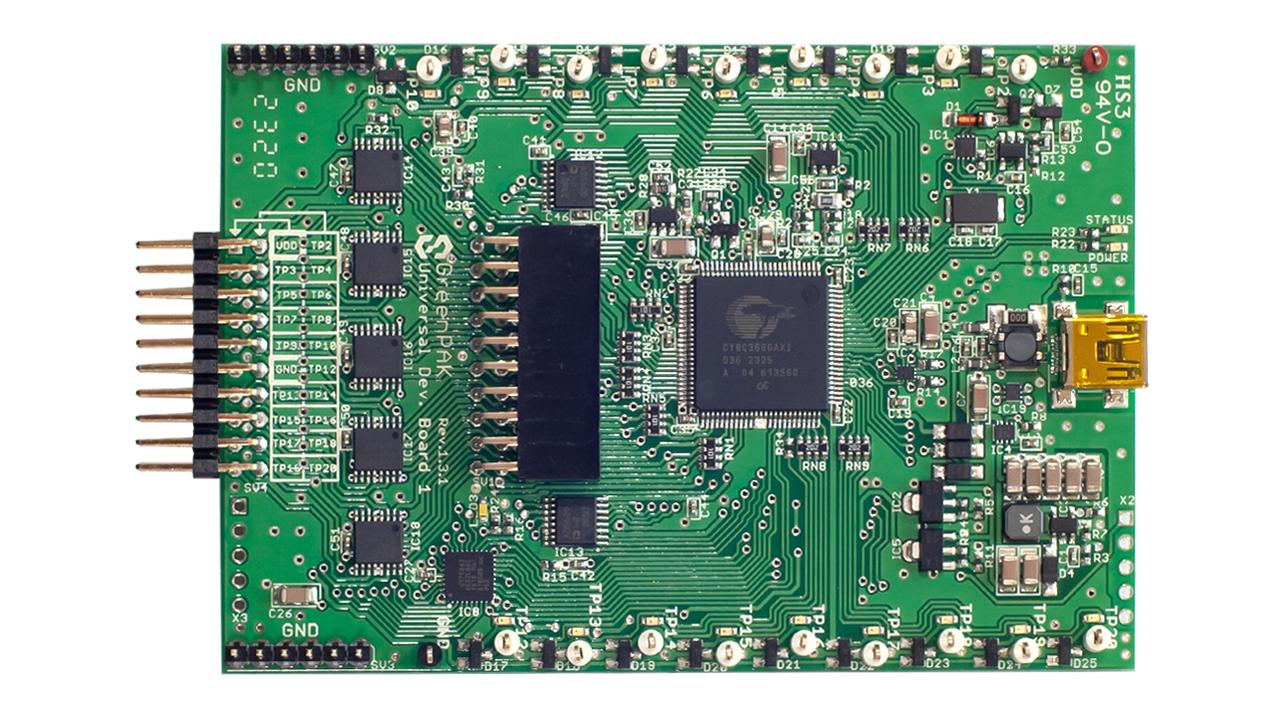

The GreenPAK Advanced Development Board provides full programming, emulation, and testing functions for the GreenPAK programmable mixed-signal devices - for use with SLG46xxxX-SKT/SLG47xxxV-SKT socket kits.

The board works in tandem with the GreenPAK Designer software (built into the Go Configure™ Software Hub), and it allows designers to program custom samples in minutes, test GreenPAK projects in-circuit, and develop using any GreenPAK device.

Please note: Socket Adapters should be ordered separately.

Features

  • USB interface
  • MacOS, Windows, and Linux compatible
  • Programming and emulation
  • Gated expansion header for connection to external test equipment
  • Integrated signal and logic generators
  • LEDs for visual indication

Applications

Documentation

Design & Development

Software & Tools

Related Boards & Kits

Models

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.

Diagram of ECAD Models
