Overview
Description

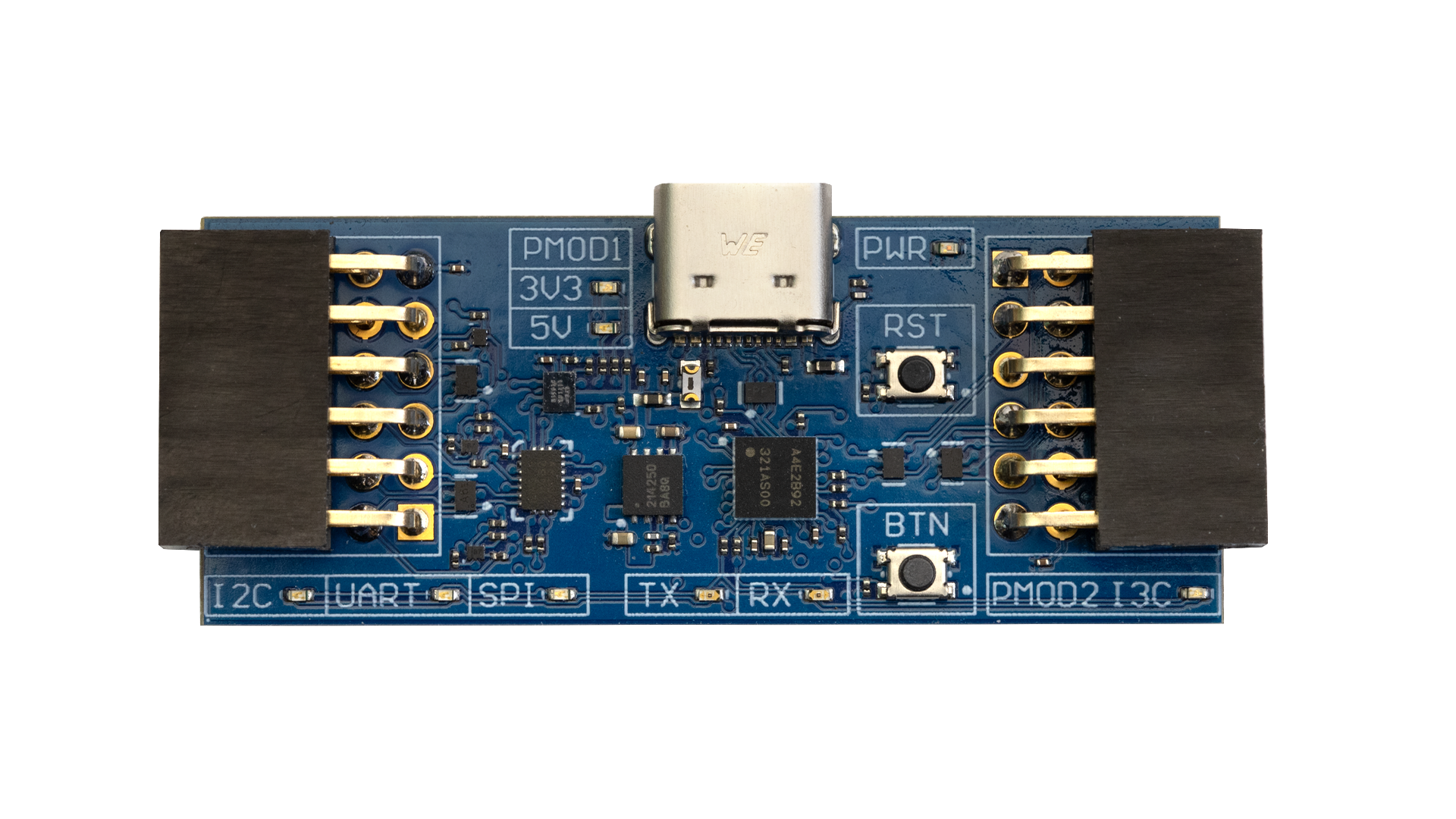

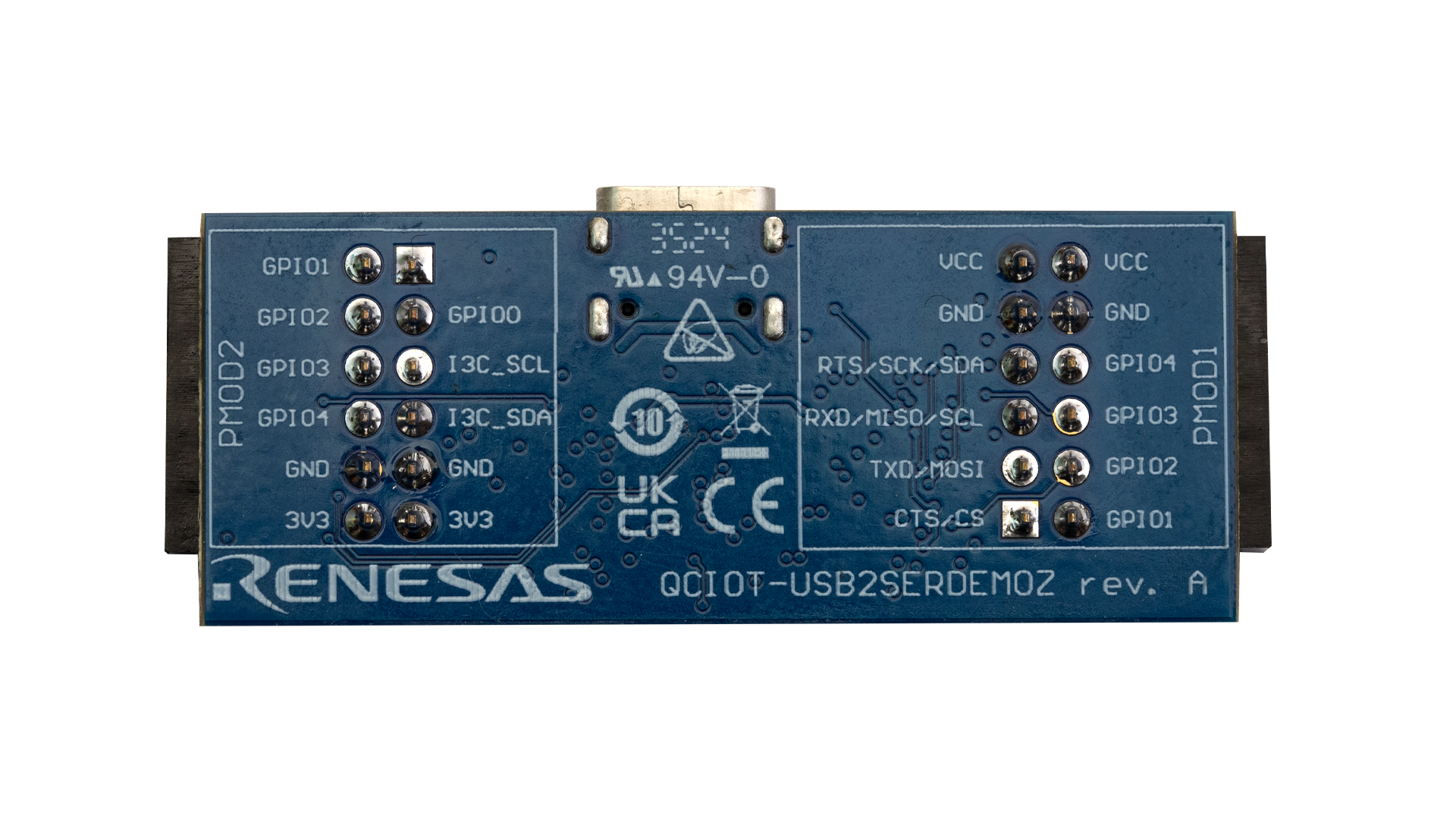

The QCIOT-USB2SERDEMOZ board is a USB-to-serial converter incorporating UART, SPI, I2C, and I3C, giving users the flexibility to connect to the desired serial communication protocol to communicate to the device via a PC using a simple terminal interface. In addition to transparent mode, the UART-USB channel supports an AT commands interface, which enables querying the connectivity status of a sensor with the supported serial communication protocols.
QCIOT-USB2SERDEMOZ is an all-in-one board solution that supports multiple common serial communication protocols, along with the ability to evaluate and quickly prototype a broad portfolio of Pmod™ boards.
Features
- Direct USB-to-UART converter
- SPI, I2C, I3C master and slave operation
- AT command controlled terminal interface
- GreenPAK-based on-the-fly configurable interface MUX
- Integrated level shifter for UART, SPI (master or slave, hereby referred to as controller and target, respectively), I2C controller
- Overcurrent protection
Applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware |
PDF
3.56 MB
The QCIOT-USB2SERDEMOZ board is a USB-to-serial converter that incorporates UART, SPI, I2C, and I3C, giving users the flexibility to connect to the desired serial communication protocol and communicate with the device via a PC using a simple terminal interface. This manual provides information about the demo and board design, schematics, bill of materials, setup and configuration, and more.
|
|
| PCB Design Files | QCIOT-USB2SERDEMOZ Design Files
Design files for the QCIOT-USB2SERDEMOZ Universal USB Converter for USB-UART, USB-I2C, USB-I3C demonstration board include the schematic, BOM, PCB layout files, and fabrication and assembly drawings, essential tools for enabling complete demonstration of the ICs and board functions.
|
|
2 items
|
||
Design & Development
Product Options
| Part Number | Status | Stock | Sampleable |
|---|---|---|---|
| QCIOT-USB2SERDEMOZ | Active | Out of Stock | Available |
