Overview
Description

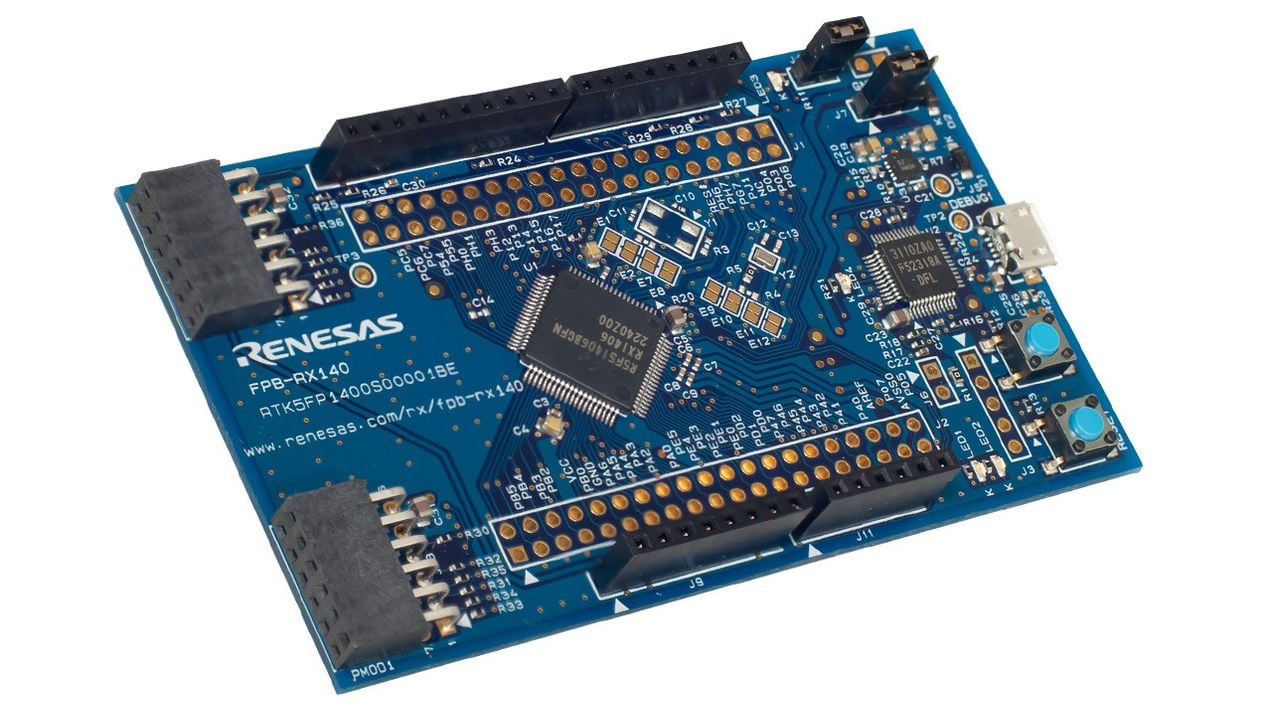

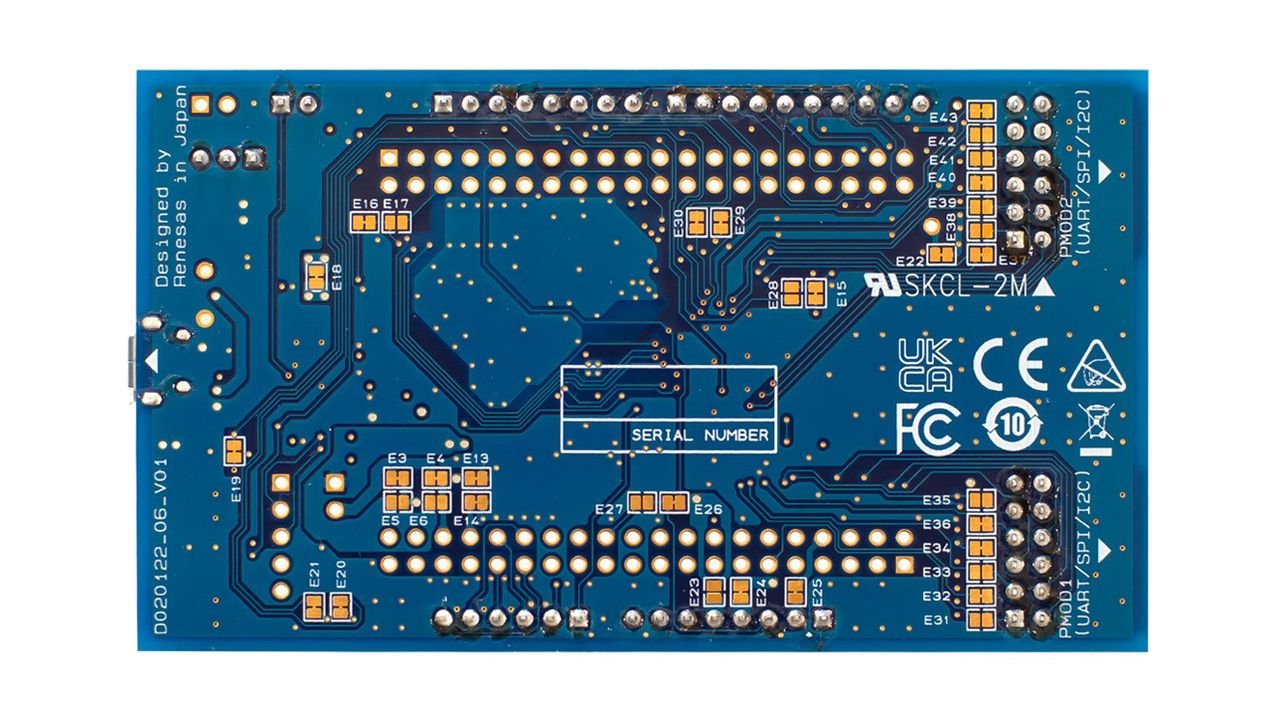

The Fast Prototyping Board for RX140 MCU Group comes equipped with an RX140 MCU (R5F51406BGFN). The board is inexpensive for RX140 evaluation and prototype development of various applications. It has an emulator circuit so you can write/debug programs just by connecting it to a PC with a USB cable. In addition, it has high expandability with Arduino Uno and two Pmod™ connectors as standard, and through-hole access to all pins of the microcontroller.
The QuickConnect Platform, provided by Renesas, makes it easy to connect the FPB-RX140 to various wireless modules and sensor modules, and support prototyping and development rapidly.
Features
- Equipped with RX140 (RXv2 core, 48MHz, 256KB ROM, 64KB RAM, LFQFP 80-pin)
- Supports multi-power supply: USB VBUS (5V) or external power supply (1.8 to 5.5V)
- Equipped with emulator circuit
- Micro-USB Type-B connector
- Through-holes with access to all of the pins of the microcontroller
- Arduino Uno and two Pmod™
- 1 user switch, 1 reset switch
- 2 user LEDs, 1 power LED, 1 debug LED
- Support for various RX140 software and tools
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Quick Start Guide | PDF 373 KB 日本語 | |
| Manual - Development Tools | PDF 1.89 MB 日本語 | |
| Schematic | ZIP 8.41 MB | |
| Application Note | PDF 1.26 MB 日本語 | |
| Application Note | PDF 2.86 MB | |
| Application Note | PDF 1.93 MB | |
| Application Note | PDF 901 KB 日本語 | |
7 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | Renesas |
| QuickConnect Platform QuickConnect platform enables fast prototyping by providing compatible hardware and software building blocks.
|
Software and Hardware Development Tools | Renesas |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | Renesas |
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
|
Solution Toolkit | Renesas |
4 items
|
||
Sample Code
Sample Code
Filters
|
||
|---|---|---|
| Type | Title | Date Date |
| Sample Code | ZIP 26.16 MB | |
| Sample Code |
[Toolchains=CC-RX|V3.06.00;GNURX|8.3.0.202405]
ZIP
30.30 MB
Application:
Consumer Electronics, Industrial
Compiler:
CC-RX
Function:
Communication Interface
IDE:
e2 studio
|
|
| Sample Code |
[Toolchains=CC-RX|V3.06.00]
ZIP
39.71 MB
Application:
Consumer Electronics, Industrial
Compiler:
CC-RX
Function:
Communication Interface
IDE:
e2 studio
|
|
| Sample Code | ZIP 8.48 MB 日本語 | |
4 items
|
||
Related Boards & Kits
Starter
RSK-RX140
Active
Renesas Starter Kit for RX140
The Renesas Starter Kit for RX140 is the perfect starter kit for developers who are new to the RX140 (Code Flash 256KB, Pin Count 80-pin). The kit includes an LCD display module and an on-chip debugging emulator. Download the integrated development environment installer for Renesas Starter Kit...
Evaluation
RTK0EG0039S01001BJ
Active
Capacitive Touch Evaluation System for RX140
The RX140 capacitive touch evaluation system makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box using the board and software included in each kit.
Configuration
- RX140 CPU board
- Touch application board
- Self-capacitance...
Product Options
Applied Filters:
Videos & Training
High Performance and Power Efficient RX140
More than 30 percent better power efficiency and twice the processing performance of RX130 group MCUs. Embedded with advanced capacitive touch IP and security features, RX140 MCUs enable your system to be smarter. Learn more about the key benefits in the video.
