Overview

The RL78/F24 next-generation super low-power automotive microcontrollers are ideal for realizing future highly reliable smart actuators and sensors, as well as low-end body ECUs. As an innovative prolongation of the known RL78/F1x MCUs, the RL78/F24 can cover prospective market requirements. With its increased CPU performance, high-temperature capability, and enhanced peripheral feature set, the RL78/F24 is a perfect fit for various applications.

RL78/F2x products are designed according to ISO 26262 and support functional safety (FuSa) up to ASIL B. They support up to the EVITA-Light security standard or more. An AES crypto module can handle key lengths of up to 256 bits and supports secure boot and authentication. To further boost the calculation performance for BLDC (FOC) motor control and DC/DC control systems, RL78/F2x is equipped with the unique application accelerator IP to offload complex trigonometric and arithmetic processing.

To respond to the new E/E automotive architecture trend, the RL78/F24 is equipped with a CAN FD interface. RL78/F2x MCUs are fully hardware and software compatible with RL78/F1x, enabling software reuse.

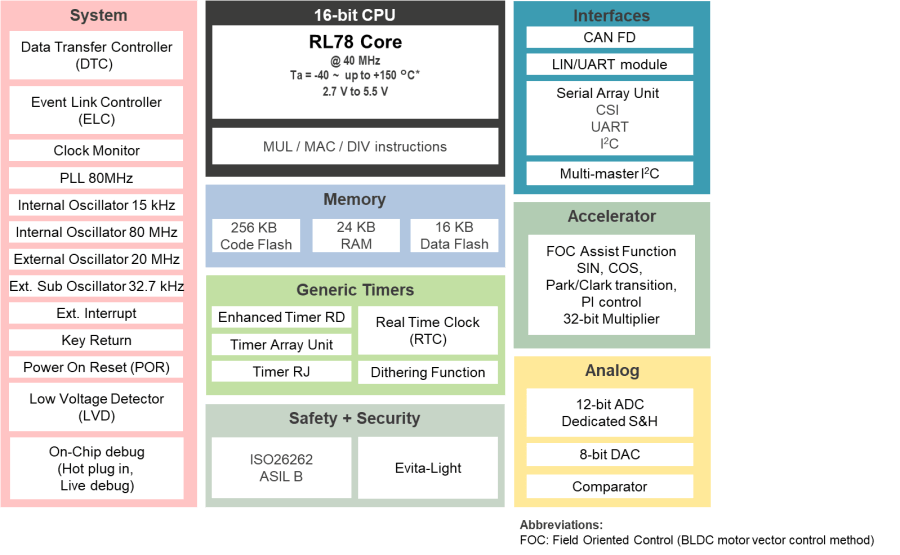

Key Features
- RL78 core, Max. 40MHz
- 256KB Flash
- 24KB RAM
- 12-bit A/D converter
- 8-bit D/A converter
- Comparator with 4-fold multiplexer
- Motor control: DC and BLDC - Field Oriented Control (FOC)
- Application accelerator unit
- Optimized DC/DC converter support
- High temperature support: up to Ta = 150 °C
- Super-low power consumption
State-of-the-Art Interfaces
- CAN FD, LIN, UART, SPI, I²C, SENT
- 20 x PWM output
Support for FuSa and Security
- Security module with EVITA-Light support
- ISO 26262 ASIL B
Extensive ecosystem supporting the latest standards concerning tool, hardware, and software areas

Applications

Smart actuators
Sensors ECUs
Low-end body

Documentation

Title	Type	Date
RL78/F23, F24 User's Manual: Hardware Rev.1.00 PDF28.36 MB日本語	Manual - Hardware	Nov 30, 2022
RL78/F2X Introduction PDF1.94 MB	Presentation	Dec 20, 2021
RL78/F23, F24 DC/DC control using Timer RDe and AAU Rev.1.00 PDF740 KB日本語	Application Note	Jul 30, 2023
RL78/F23, F24 Example of Using Application Accelerator Unit Rev.1.00 PDF510 KB日本語	Application Note	Jul 30, 2023
RL78/F23, F24 Interrupt Source Determination Procedure Rev.1.00 PDF222 KB日本語	Application Note	Jul 30, 2023
RL78/F23, RL78/F24 Porting Guide from RL78/F13, F14 to RL78/F23, F24 Products Rev.1.10 PDF1.32 MB日本語	Application Note	Jul 30, 2023
RL78/F24 Event Link Controller (ELC) Operations Rev.1.00 PDF412 KB日本語	Application Note	Jul 30, 2023
RL78 Family Sensor Control Modules Software Integration System Rev.1.50 PDF1.61 MB	Application Note	Jul 4, 2023
RL78/F24 Sensorless Trapezoidal Control of BLDC Motor by MCU Rev.1.10 PDF912 KB日本語 Related Files: Sample Code	Application Note	Jun 30, 2023
RL78/F24 Single-Shunt Sensorless Vector Control for PMSM by MCU Rev.1.10 PDF1.21 MB日本語 Related Files: Sample Code	Application Note	Jun 30, 2023
RL78/F24 Three-Shunt Sensorless Vector Control for PMSM by MCU Rev.1.10 PDF1.14 MB日本語 Related Files: Sample Code	Application Note	Jun 30, 2023
RL78 Family FFT Library: Deployment Guide Rev.1.08 PDF447 KB日本語 Related Files: Sample Code	Application Note	May 1, 2023
RL78 Family RL78 Digital Signal Controller Library - Filter Rev.2.04 PDF1.03 MB日本語 Related Files: Sample Code	Application Note	Apr 19, 2023
RL78 Family Renesas Flash Driver RL78 Type 02 SC version (Code Flash) Rev.1.00 PDF2.18 MB日本語 Related Files: Sample Code	Application Note	Feb 20, 2023
RL78 Family Renesas Flash Driver RL78 Type 02 SC version (Data Flash) Rev.1.00 PDF1.90 MB日本語 Related Files: Sample Code	Application Note	Feb 20, 2023
RL78 Family Renesas Flash Driver RL78 Type 02 SC version (Extra Area) Rev.1.00 PDF2.10 MB日本語 Related Files: Sample Code	Application Note	Feb 20, 2023
RL78 Family Renesas Flash Driver RL78 Type 02 SC version (Flash Common) Rev.1.00 PDF142 KB日本語 Related Files: Sample Code	Application Note	Feb 20, 2023
RL78/F Series RSA Library Installation Guide Rev.1.01 PDF355 KB	Application Note	Dec 27, 2022
RL78/F23, F24 Hardware Design Guide Rev.1.00 PDF452 KB日本語	Application Note	Nov 30, 2022
RL78/F Series SHA Hash Function Library Installation Guide Rev.1.00 PDF478 KB Related Files: Sample Code	Application Note	Sep 30, 2022
RL78/F13, F14, F15, F23, F24 Setup Procedures for IICA Multi-Master Communication Rev.1.10 PDF661 KB日本語	Application Note	Sep 30, 2022
RL78/F23, F24 List of Special Function Registers Rev.1.00 PDF2.09 MB日本語	Application Note	Sep 30, 2022
RL78/F23, F24 Option Byte Setting Rev.1.00 PDF330 KB日本語	Application Note	Sep 30, 2022
RL78/F23, F24 SENT Communication using Timer Array Unit and DTC Rev.1.00 PDF936 KB日本語	Application Note	Sep 30, 2022
RL78/F23, F24 Safety Function Rev.1.00 PDF1.03 MB日本語	Application Note	Sep 30, 2022
RL78/F23, F24 Setting of port related register when using alternate function Rev.1.00 PDF974 KB日本語	Application Note	Sep 30, 2022
RL78/F23, F24 Setup Procedure for LIN Communication in Master Mode (Guidance) Rev.1.00 PDF812 KB日本語	Application Note	Sep 30, 2022
RL78/F23, F24 Setup Procedure for LIN Communication in Slave Mode (Guidance) Rev.1.00 PDF773 KB日本語	Application Note	Sep 30, 2022
RL78/F23, F24 Standby Function Rev.1.00 PDF445 KB日本語	Application Note	Sep 30, 2022
RL78/F24 RS-CANFD Lite Configuration, Reception and Transmission Rev.1.00 PDF1.88 MB日本語	Application Note	Sep 30, 2022
RL78 Family RL78 Microcontroller (RL78 Protocol D) Serial Programming Guide PDF1.11 MB日本語	Application Note	Aug 10, 2022
e² studio Creating and executing build CMake project PDF1.11 MB日本語	Application Note	Jun 28, 2022
RL78 Family Real-Time-Clock Watch Error Correction function Rev.1.10 PDF711 KB Related Files: Sample Code	Application Note	Jun 24, 2022
How to automate CUnit tests in e² studio and Jenkins PDF2.26 MB日本語	Application Note	Jun 15, 2022
RL78/F24 RS-CANFD lite Module Software Integration System Rev.1.00 PDF478 KB日本語 Related Files: Sample Code	Application Note	Apr 20, 2022
RL78/F2x RLIN3 Module Software Integration System Rev.1.00 PDF1.92 MB日本語 Related Files: Sample Code	Application Note	Apr 20, 2022
RL78 Family Board Support Package Module Using Software Integration System Rev.1.60 PDF756 KB日本語 Related Files: Sample Code	Application Note	Feb 28, 2022
RL78 Family Selection Guide PDF8.04 MB日本語	Brochure	Mar 24, 2023
RL78 Family Microcontrollers Brochure PDF11.44 MB日本語	Flyer	Mar 24, 2023
[Flyer] E2Emulator[RTE0T00020KCE00000R] PDF303 KB日本語, 简体中文	Flyer	Mar 24, 2022
Renesas RL78/F2x Flyer PDF892 KB	Flyer	Mar 7, 2022
Renesas Software and Tools Flash Memory Programmer PG-FP6 PDF417 KB日本語, 简体中文	Flyer	Mar 16, 2020
Semiconductor Reliability Handbook PDF14.70 MB日本語	General Reliability Literature	Jan 30, 2017
RL78 Family Product Part Number Guide PDF188 KB	Guide	Jul 12, 2023
EEPROM Emulation Software RL78 Type 02 User's Manual for RL78/F23 and RL78/F24 PDF2.38 MB日本語	Manual - Development Tools	Apr 20, 2023
Renesas Flash Driver RL78 Type 02 User's Manual for RL78/F23 and RL78/F24 PDF3.34 MB日本語	Manual - Development Tools	Feb 6, 2023
Renesas Flash Driver and EEPROM Emulation Software Target MCU List for RL78 - Automotive PDF173 KB日本語	Manual - Development Tools	Feb 6, 2023
E1/E20/E2 Emulator, E2 Emulator Lite Additional Document for User's Manual (Notes on Connection of RL78) PDF1.13 MB日本語	Manual - Development Tools	Jan 20, 2023
DSPASM FAA/GREEN_DSP Structured Assembler User's Manual PDF1.14 MB日本語	Manual - Development Tools	Dec 1, 2022
RL78 Family User's Manual: Software Rev.2.30 PDF1.30 MB日本語	Manual - Hardware	Apr 22, 2022
RL78 Family DALI-2 Control Gear Library User's Manual: Basic (102) PDF1.14 MB日本語	Manual - Software	Nov 1, 2022
RL78 Family DALI-2 Control Gear Library User's Manual: Colour control (209Tc) PDF878 KB日本語	Manual - Software	Nov 1, 2022
RL78 Family DALI-2 Control Gear Library User's Manual: LED (207) PDF1.21 MB日本語	Manual - Software	Nov 1, 2022
RL78 Family DALI-2 Input Device Library User's Manual: Basic (103) PDF1.35 MB日本語	Manual - Software	Nov 1, 2022
Semiconductor Package Mount Manual PDF10.28 MB日本語, 简体中文	Other	Dec 27, 2018
CS+ Integrated Development Environment Package V8.10.00 PDF193 KB日本語	Release Note	Jul 20, 2023
CS+ for CC V8.10.00 Release Note PDF378 KB日本語	Release Note	Jul 20, 2023
Smart Configurator for RL78 V1.7.0 Release Note PDF1.25 MB日本語	Release Note	Jul 20, 2023
e² studio 2023-07 Release Note PDF2.87 MB	Release Note	Jul 20, 2023
RL78 Compiler CC-RL V1.12.01 Release Note PDF234 KB日本語	Release Note	Jul 1, 2023
e² studio 2023-04 Release Note PDF2.82 MB	Release Note	May 25, 2023
Smart Configurator for RL78 V1.6.0 Release Note PDF1.16 MB日本語	Release Note	Apr 20, 2023
DSPASM Structured Assembler V1.04.02 for the FAA or GREEN_DSP Release Note PDF241 KB日本語	Release Note	Apr 1, 2023
e² studio 2022-01 Release Note PDF2.87 MB	Release Note	Jan 11, 2022
RL78/F12,F13,F14,F15,D1A,F23,F24 Correction for Incorrect Description in the User's Manual Hardware PDF173 KB日本語	Technical Update	Jan 19, 2023

Design & Development

Software & Tools



Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0]	Programmer (Unit/SW)	Renesas
E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX]	Emulator	Renesas
E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX]	Emulator	Renesas
Code Flash Libraries (Flash Self Programming Libraries) Libraries for the reprogramming of code area flash memory, including EEPROM emulation libraries for the code areas of 78K-family products	Self Programming Library (Flash Library)	Renesas
Data Flash Libraries Libraries for the reprogramming of data flash memory, including EEPROM emulation libraries for the data areas of RL78-family products	Self Programming Library (Flash Library)	Renesas
IAR Embedded Workbench for Renesas RL78 IAR Embedded Workbench provides extensive support for RL78 devices. IAR Embedded Workbench is a complete set of development tools with leading optimization technology for creating powerful automotive applications.	IDE and Coding Tool	IAR Systems
Add 9 hidden items 6 items

Sample Code

Title	Type	Date
RL78/F24 Sensorless Trapezoidal Control of BLDC Motor by MCU Rev.1.10 ZIP2.02 MB日本語 Related Files: Application Note Application: Automotive Compiler: CC-RL, ICCRL78 IDE: CS+ for CC, IAR EWRL78	Sample Code	Jun 30, 2023
RL78/F24 Single-Shunt Sensorless Vector Control for PMSM by MCU Rev.1.10 ZIP2.60 MB日本語 Related Files: Application Note Application: Automotive Compiler: CC-RL IDE: CS+ for CC, IAR EWRL78	Sample Code	Jun 30, 2023
RL78/F24 Three-Shunt Sensorless Vector Control for PMSM by MCU Rev.1.10 ZIP2.46 MB日本語 Related Files: Application Note Application: Automotive Compiler: CC-RL, ICCRL78 IDE: CS+ for CC, IAR EWRL78	Sample Code	Jun 30, 2023
RL78 Family FFT Library: Deployment Guide Rev.1.08 - Sample Code [Toolchains=CC-RL\|V1.12.00;LLVM for Renesas RL78\|10.0.0.202207;IAR Compiler for Arm\|v.4.21.1.2409] ZIP7.35 MB Related Files: Application Note Compiler: CC-RL, ICCRL78 IDE: e2 studio, IAR EWRL78	Sample Code	May 1, 2023
RL78 Family RL78 Digital Signal Controller Library - Filter Rev.2.04 - Sample Code [Toolchains=CC-RL\|V1.12.00;LLVM for Renesas RL78\|10.0.0.202207;IAR Compiler for Arm\|v.4.21.1.2409] ZIP6.31 MB Related Files: Application Note Compiler: CC-RL, ICCRL78 IDE: e2 studio, IAR EWRL78	Sample Code	Apr 19, 2023
RL78 Family Renesas Flash Driver RL78 Type 02 SC version (Code Flash) Rev.1.00 - Sample Code [Toolchains=CC-RL\|V1.11.xx;IAR Compiler for RL78\|v4.21.x] ZIP4.93 MB Related Files: Application Note Function: Memory Compiler: CC-RL, ICCRL78 IDE: CS+, e2 studio, IAR EWRL78	Sample Code	Feb 20, 2023
RL78 Family Renesas Flash Driver RL78 Type 02 SC version (Data Flash) Rev.1.00 - Sample Code [Toolchains=CC-RL\|V1.11.xx;IAR Compiler for RL78\|v4.21.x] ZIP3.84 MB Related Files: Application Note Function: Memory Compiler: CC-RL, ICCRL78 IDE: CS+, e2 studio, IAR EWRL78	Sample Code	Feb 20, 2023
RL78 Family Renesas Flash Driver RL78 Type 02 SC version (Extra Area) Rev.1.00 - Sample Code [Toolchains=CC-RL\|V1.11.xx;IAR Compiler for RL78\|v4.21.x] ZIP4.13 MB Related Files: Application Note Function: Memory Compiler: CC-RL, ICCRL78 IDE: CS+, e2 studio, IAR EWRL78	Sample Code	Feb 20, 2023
RL78 Family Renesas Flash Driver RL78 Type 02 SC version (Flash Common) Rev.1.00 - Sample Code [Toolchains=CC-RL\|V1.11.xx;IAR Compiler for RL78\|v4.21.x] ZIP428 KB Related Files: Application Note Function: Memory Compiler: CC-RL, ICCRL78 IDE: CS+, e2 studio, IAR EWRL78	Sample Code	Feb 20, 2023
RL78/F Series SHA Hash Function Library Installation Guide Rev.1.00 ZIP1.35 MB Related Files: Application Note Application: Safety, Surveillance & Security Function: Security Compiler: CC-RL,IAR EWRL78/ICCRL78 IDE: CS+ for CC	Sample Code	Sep 30, 2022
RL78 Family Real-Time-Clock Watch Error Correction function Rev.1.10 ZIP868 KB Related Files: Application Note Application: Consumer Electronics, Industrial, IoT Applications Function: Application Example, Other peripherals Compiler: ICCRL78 IDE: IAR EWRL78	Sample Code	Jun 24, 2022
RL78/F24 RS-CANFD lite Module Software Integration System Rev.1.00 - Sample Code ZIP2.26 MB Related Files: Application Note Application: Industrial Function: BSP, Communication Interface, Software Package Compiler: CC-RL, LLVM, ICCRL78 IDE: CS+, e2 studio, IAR EWRL78	Sample Code	Apr 20, 2022
RL78/F2x RLIN3 Module Software Integration System Rev.1.00 - Sample Code ZIP11.45 MB Related Files: Application Note Application: Industrial Function: BSP, Communication Interface, Software Package Compiler: CC-RL, LLVM, ICCRL78 IDE: CS+, e2 studio, IAR EWRL78	Sample Code	Apr 20, 2022
RL78 Family Board Support Package Module Using Software Integration System Rev.1.60 - Sample Code [Toolchains=CC-RL\|V1.11.0;LLVM for Renesas RL78\|22.10.0.v20220621-1003;GCC for Renesas RL78\|22.10.0.v20220621-1003;IAR Compiler for RL78\|v.4.21.3] ZIP3.46 MB Related Files: Application Note Application: Consumer Electronics, Industrial Function: BSP, Clock, Software Package Compiler: CC-RL, GNURL78, ICCRL78, LLVM IDE: e2 studio, IAR EWRL78	Sample Code	Feb 28, 2022

Boards & Kits

RTK7F124FPC01000BJ

Evaluation

Order Now

RL78/F24 (R7F124FPJ) Target Board

As a CPU board usable in connection with the on-chip debugging emulator E2, E2 Lite, this product achieves simple and easy evaluation of the target MCU. Please contact the distributors or dealers for purchase.

RTK7F124FGS00000BJ

Evaluation

Order Now

12 V Motor Control Evaluation System for RL78/F24

This kit is for motor control evaluation with RL78/F24 (48-pin) product. This kit includes a permanent magnetic synchronous motor (TG-55N-KA 12V; Tsukasa Electric Co., Ltd), allowing users to easily start evaluating the motor after purchase. Please contact the distributors or dealers for purchase.

Y-ASK-RL78F24

Starter

Order Now

RL78/F24 Starter Kit

The RL78/F24 starter kit includes the RL78/F24 target board “RTK7F124FPC01000BJ” and the E2 Lite, a Renesas Electronics on-chip-debug emulator with programming...

RL78/F24 Motor Control IP BlockSet

We are developing a Simulink model of the peripheral functions mounted in the target device.

Target peripherals:

Timer RDe (TRD)
12-bit A/D Convertoer (AD)
Application Accelerator Unit (AAU)

Provide simulation blocks that reproduce hardware for motor/inverter control with high accrracy.

By combining this lockset and user model, it is possible to examine and check the operation an actual system on the model.

For inquires about this item, please contact the distributors or dealers.

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Product Options

Processing table

	PLP	Program Memory (KB)	RAM (KB)	Lead Count (#)	Temp. Range	Security Level	Bit Size	CPU	Data Flash (KB)	Supply Voltage (V)	Operating Freq (Max) (MHz)	RTC	LVD	DMA	I/O Ports	Timer	ADC	DAC	CAN (ch)	Buy / Sample
(28) Active (0) Obsolete / NRND / LTB		256	24	32 48 64 80 100	-40 to 105°C -40 to 125°C -40 to 150°C	Evita-Light	16	RL78		2.7 - 5.5	40	Yes	Yes	Yes	25 38 52 68 86	16-bit x 19-ch	12-bit x 10-ch 12-bit x 19-ch 12-bit x 24-ch 12-bit x 25-ch 12-bit x 31-ch	8-bit x 1-ch	1	Buy / Quote
Part Number	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator	Logical Operator
R7F124FBJ3ANP-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	32	-40 to 105°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	25	16-bit x 19-ch	12-bit x 10-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FBJ4ANP-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	32	-40 to 125°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	25	16-bit x 19-ch	12-bit x 10-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FGJ3AFB-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	48	-40 to 105°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	38	16-bit x 19-ch	12-bit x 19-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FGJ4AFB-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	48	-40 to 125°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	38	16-bit x 19-ch	12-bit x 19-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FGJ5AFB-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	48	-40 to 150°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	38	16-bit x 19-ch	12-bit x 19-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FLJ3AFB-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	64	-40 to 105°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	52	16-bit x 19-ch	12-bit x 24-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FLJ4AFB-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	64	-40 to 125°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	52	16-bit x 19-ch	12-bit x 24-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FLJ5AFB-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	64	-40 to 150°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	52	16-bit x 19-ch	12-bit x 24-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FMJ3AFB-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	80	-40 to 105°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	68	16-bit x 19-ch	12-bit x 25-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FMJ4AFB-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	80	-40 to 125°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	68	16-bit x 19-ch	12-bit x 25-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FMJ5AFB-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	80	-40 to 150°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	68	16-bit x 19-ch	12-bit x 25-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FPJ3AFB-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	100	-40 to 105°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	86	16-bit x 19-ch	12-bit x 31-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FPJ4AFB-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	100	-40 to 125°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	86	16-bit x 19-ch	12-bit x 31-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FPJ5AFB-C#BA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	100	-40 to 150°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	86	16-bit x 19-ch	12-bit x 31-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FBJ3ANP-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	32	-40 to 105°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	25	16-bit x 19-ch	12-bit x 10-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FBJ4ANP-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	32	-40 to 125°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	25	16-bit x 19-ch	12-bit x 10-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FGJ3AFB-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	48	-40 to 105°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	38	16-bit x 19-ch	12-bit x 19-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FGJ4AFB-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	48	-40 to 125°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	38	16-bit x 19-ch	12-bit x 19-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FGJ5AFB-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	48	-40 to 150°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	38	16-bit x 19-ch	12-bit x 19-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FLJ3AFB-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	64	-40 to 105°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	52	16-bit x 19-ch	12-bit x 24-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FLJ4AFB-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	64	-40 to 125°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	52	16-bit x 19-ch	12-bit x 24-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FLJ5AFB-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	64	-40 to 150°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	52	16-bit x 19-ch	12-bit x 24-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FMJ3AFB-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	80	-40 to 105°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	68	16-bit x 19-ch	12-bit x 25-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FMJ4AFB-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	80	-40 to 125°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	68	16-bit x 19-ch	12-bit x 25-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FMJ5AFB-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	80	-40 to 150°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	68	16-bit x 19-ch	12-bit x 25-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FPJ3AFB-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	100	-40 to 105°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	86	16-bit x 19-ch	12-bit x 31-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FPJ4AFB-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	100	-40 to 125°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	86	16-bit x 19-ch	12-bit x 31-ch	8-bit x 1-ch	1	Buy / Quote
R7F124FPJ5AFB-C#HA0 play_circleActive memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	N/A	256	24	100	-40 to 150°C	Evita-Light	16	RL78	16	2.7 - 5.5	40	Yes	Yes	Yes	86	16-bit x 19-ch	12-bit x 31-ch	8-bit x 1-ch	1	Buy / Quote

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product

Support

Contact Technical Support

RL78 Family FAQs

RL78 Forum

MCU / MPU Selection Tool

Contact a Sales Representative

Videos & Training

News & Blog Posts

	First security solutions for automotive 16-bit RL78 MCU make its debut!	Blog Post	Sep 30, 2022
	Release of 12V Motor Control Renesas Solution Starter Kit for RL78/F24	Blog Post	Jul 4, 2022

Microcontrollers & Microprocessors

Applications

Design Resources

Sales & Support

About

Language

Region

Account

Next Gen. Actuator and Sensor Microcontroller

Microcontrollers & Microprocessors

Overview

Applications

Documentation
