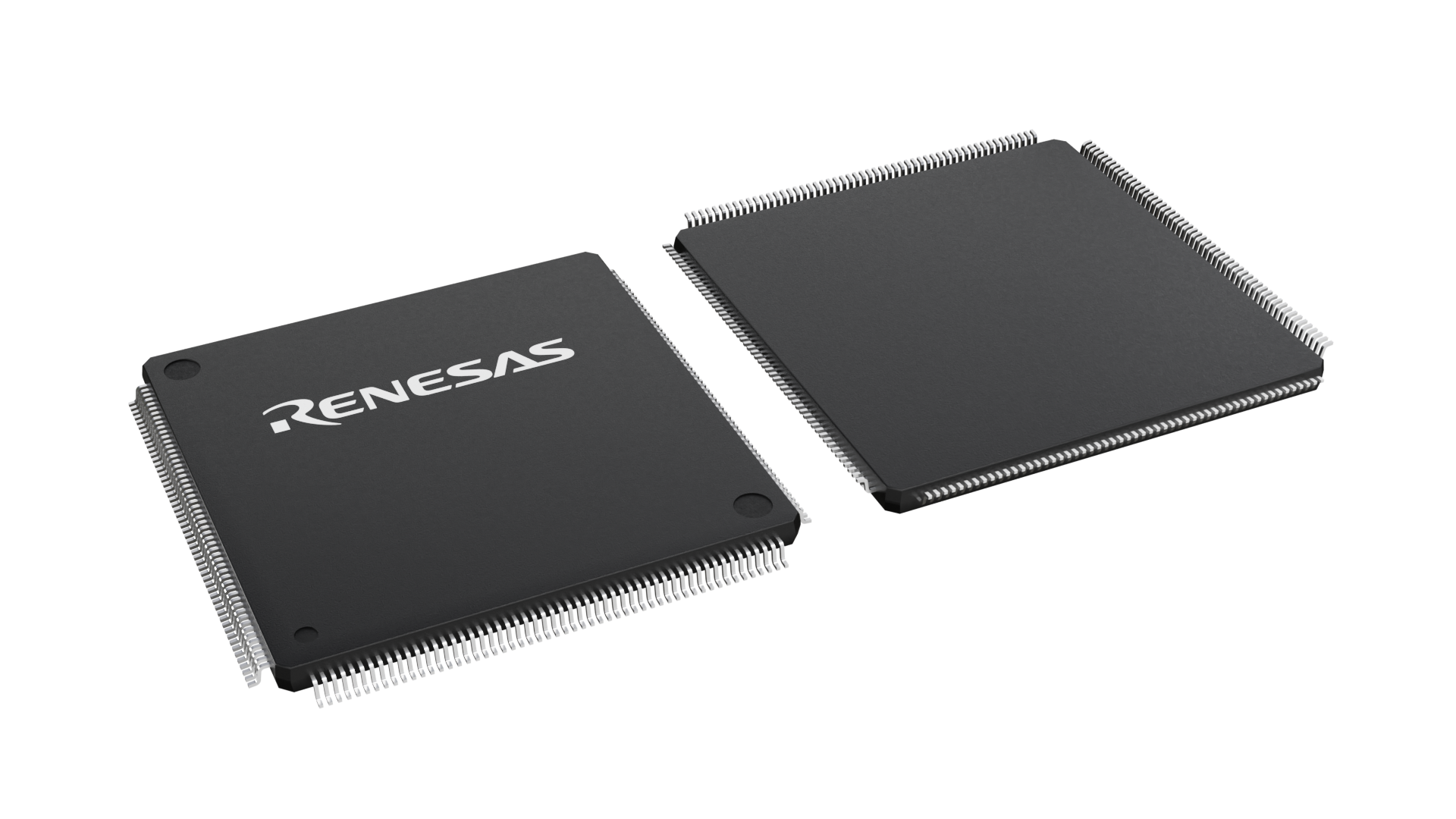

Package Information
| CAD Model: | View CAD Model |
| Pkg. Type: | LQFP |
| Pkg. Code: | QQC |
| Lead Count (#): | 216 |
| Pkg. Dimensions (mm): | 24.00 x 24.00 x 0.00 |
| Pitch (mm): |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN (US) | EAR99 |
| HTS (US) | 8542.39.0090 |
| RoHS (TW8823-LC2-CE) | Download |
Product Attributes
| Lead Count (#) | 216 |
| Carrier Type | Tray |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| Pb Free Category | Pb-Free 100% Matte Tin Plate w/Anneal-e3 |
| Temp. Range (°C) | -40 to +85°C |
| ADC Input Frequency (MHz) | 108 |
| Analog RGB Input | Yes |
| CCFL/LED Controller | CCFL & LED |
| CVBS Input | Yes |
| Color Enhancement | Yes |
| Comb Filter | 3D / 2D |
| De-Interlacer | 2D |
| Digital RGB/Y CbCr Input | 2 Ports |
| Dual View Output | No |
| External OSD | Analog, Digital 18-bit & PIP overlay |
| ISO 26262 (Functional Safety) | QM |
| LVDS Input | No |
| LVDS Output | Yes |
| Length (mm) | 24 |
| MCU/MPU | Integrated |
| MIPI-CSI2 input | No |
| MOQ | 80 |
| Memory Support | DDR |
| OSD Colors | 65K Color/24-Bit Palette |
| OSD Type | Graphic (16 bit) |
| Output Resolution (Max) | WXGA |
| PIP | Yes |
| Pkg. Dimensions (mm) | 24.0 x 24.0 x 0.00 |
| Pkg. Type | LQFP |
| Price (USD) | $28.44 |
| Qualification Level | AEC-Q100 Grade 2 |
| S-Video Input | Yes |
| SCART Input | Yes |
| Secondary Output | No |
| TCON Output | Digital & Analog |
| TTL Output | Yes |
| Touch-screen Controller | Yes |
| Width (mm) | 24 |
| YPbPr Input | Yes |
Resources for TW8823C
Description
The TW8823C incorporates many of the features required to create a multi-purpose in-car LCD display system into a single package. It integrates a high-quality 3D comb NTSC/PAL/SECAM video decoder, triple High-Speed RGB ADCs, high-quality scaler, bit-mapped OSD, triple DACs and image enhancement functions that include features such as Black and White Stretch and favorite color enhancement. It also supports panoramic scaling for conversion to wide screen display format. On the input side, it supports a rich combination of CVBS, S‑video, analog RGB, and digital YCbCr/RGB. On the output side, it supports both digital and analog panel types with its built-in timing controller and analog RGB output.
In addition, the TW8823C supports LVDS type panels. The TW8823C also has two PIP (Picture-in-Picture) engines that can display three display sources simultaneously in a single window. It also has a built-in bit-mapped OSD with 16-bit color depth and an acceleration function. It can also accept 18-bit external OSD inputs. In addition, TW8823C has a built-in high‑performance microcontroller with cache. Its SPI interface supports various serial flash types.
