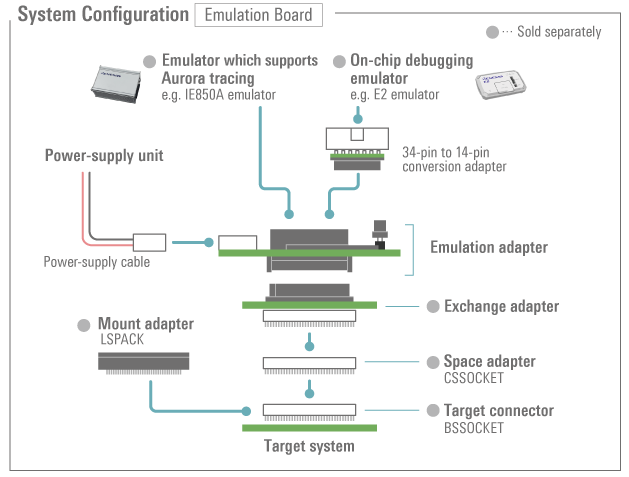

This is an Emulation Adapter for RH850 Family. Using with the separately available exchange adapter, it enables emulation of the target MCU you are using.
|Emulator supported||E2、IE850A、various emulators from Renesas Partners|
|Target MCUs||RH850/E2UH, RH850/E2H|
|User system connection||Connected to the connecter mounted on the foot pattern of the MCU via an adapter.|
|External dimensions||Emulation adapter：47mm×51mm|
|Conformance with overseas standards||EU：EN55032 Class A, EN55024|
USA：FCC part 15 Class A
When designing a user system refer to the following descriptions in the Emulation Adapter for the RH850/E2UH and E2H Groups User's Manual (PDF | English, 日本語) Emulation Adapter for the RH850/E2UH and E2H Groups.
For other optional products than the emulation adapter, refer to the users manual.
