PMOD Expansion Board for RYZ024A
The PMOD Expansion Board for RYZ024A provides an entry point for the evaluation and development of the RYZ024A. The PMOD Expansion Board is an easy connection to...
LTE Cat-M1 Cellular IoT Module for Global Deployment
Jump to Page Section:
Overview
Description

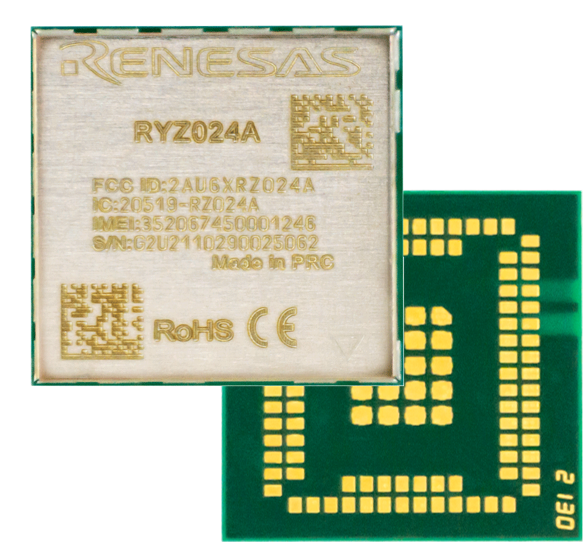

The Renesas RYZ024A module is an all-in-one LTE module supporting category M1 which is upgradable to NB1/NB2 with worldwide deployment and roaming capability.
The module comprises an LTE Cat-M1/NB1/NB2 platform and all other elements necessary for a complete LTE modem system. These include an LTE-optimized transceiver, a single complete RF front-end to support LTE Cat-M1/NB bands worldwide, and key interfaces, all in a single compact LGA package. The RYZ024A module includes a carrier-proven LTE Cat-M1 protocol stack and a comprehensive software infrastructure.
Features
- Integrated cellular IoT module for LTE Cat-M1
- 3GPP Release 14 (upgradable to release 15)
- Proven LTE Cat-M1 software stack
- AT command interface
- LGA package with 120 pads
- 16.3 mm x 17 mm x 1.85 mm
- uSIM Interface
- Secure enclave & iUICC/ieUICC
- EAL5+ Secure Element (SE) capable
- Voltage RF compliance: 2.5 V to 5.5 V
- Functional voltage range: 2.2 V to 5.5 V
- RoHS-compliant, halogen-free
- Supports power class 3 (+23dBm)
Comparison
| RYZ024A | RYZ014A | |
| Device Functions | Dual band RF front end, Memory, SQN3430 Cat-M1/NB1/NB2 baseband | Dual band RF front end, Memory, SQN3330 Cat-M1 baseband |
| Input Supply Range | 2.2 - 5.5 | 3.1 - 5.5 |
| Comm. Interface | Dual (U) SIM, RING, UART(4x High-Speed with flow control), WAKE | 32 kHz, GPIO, JTAG, RING, UART (x3, including one reserved), USIM, WAKE |
| Pkg. Dimensions (mm) | 17.0 x 16.3 x 1.85 | 21.35 x 20.25 x 1.69 |
| Pkg. Type | MODULE | MODULE |
| Temp. Range | -40 to 85°C | -40 to 85°C |
| View Product |
Applications
Applications
- Metering (Electricity/Gas/Water, Automated Meter Reading)
- Smart Home (HVAC, Thermostats)
- Infrastructure (Charge Poles, Parking Systems)
- Industry (Pumps)
- Agriculture
- Wearables & Trackers
Documentation
|
|
Date | |
|---|---|---|
| PDF 2.35 MB | Datasheet | |
| PDF 2.85 MB 日本語 | Application Note | |
| PDF 1.86 MB 日本語 | Application Note | |
| PDF 4.33 MB | Manual - Hardware | |
| PDF 1.36 MB 日本語 | Application Note | |
| PDF 589 KB | Quick Start Guide | |
| PDF 597 KB | Quick Start Guide | |
| PDF 720 KB | Quick Start Guide | |
| PDF 801 KB | Quick Start Guide | |
| PDF 1.45 MB | Application Note | |
| PDF 3.68 MB | Application Note | |
| PDF 362 KB | List | |
| PDF 2.06 MB | Application Note | |
| PDF 1.50 MB | Application Note | |
| ZIP 2.17 MB | Other | |
| PDF 1.92 MB | Application Note | |
16 items
|
||
