PMOD Expansion Board for RYZ014A
Jump to Page Section:
Overview
Description

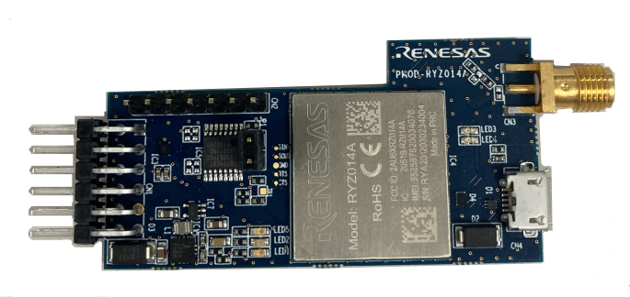

The PMOD Expansion Board for RYZ014A provides an entry point to evaluation and developing for the RYZ014A. The PMOD Expansion Board is easy connection to Renesas MCU kits via PMOD interface. And the PMOD Expansion Board can be controlled through UART interface.
Product Contents

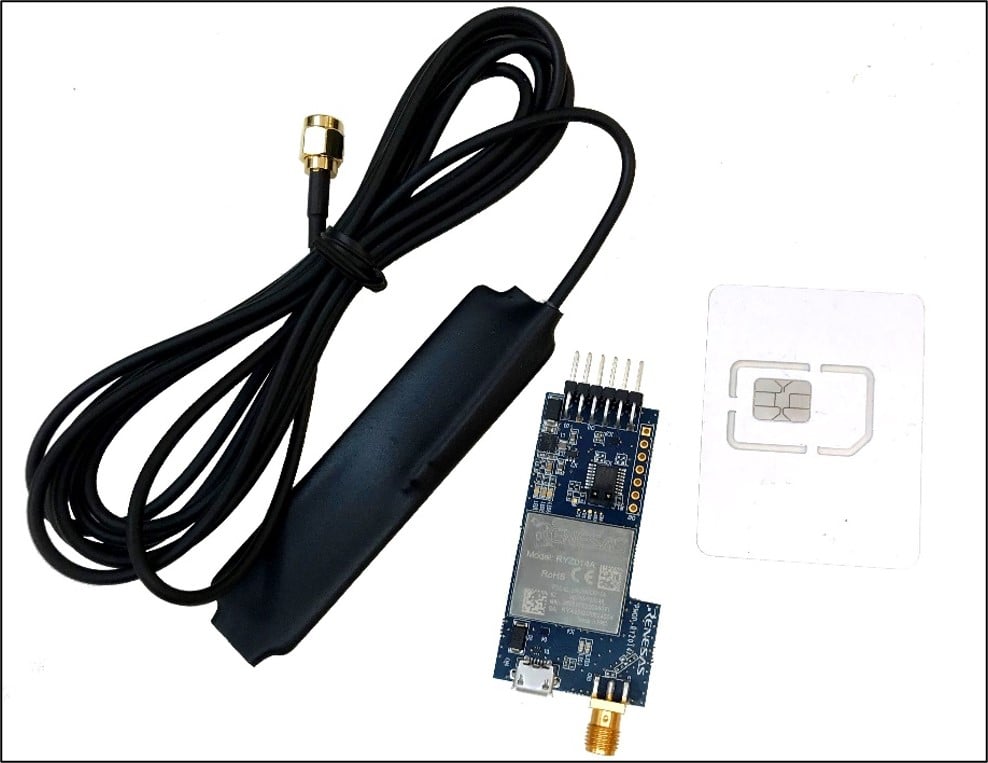

The following components are included.
- PMOD™ Expansion Board for RYZ014A
- LTE Antenna ( Taoglas: GSA.8830.A.201111) (SMA Male termination)
- MVNO SIM Card
Countries supported by the included SIM card
Austria, Belgium, Canada, Denmark, Finland, France, Germany, Japan, Liechtenstein, Luxembourg, Mexico, Netherlands, Norway, Poland, Portugal, Romania, Spain, Sweden, Switzerland, United Kingdom, United States
APN setting information by the included SIM card
| Item | Value |
|---|---|
| APN (Access point name) | iot.truphone.com |
| User ID (Access point login ID) | - (Null) |
| Password (Access point password) | - (Null) |
| SIM card PIN code | - (Null) |
| Authentication protocol type | PAP |
SIM card plans
First 90-days/50MB free
Certifications
The RYZ014A evaluation kit meets multiple regional regulatory requirements. Individual certificates are available below. Refer to the RYZ014A evaluation kit documentation for disclaimer, precautions and more details on the certifications.
Japan radio/terminal equipment based on type certification
Implemented RYZ014A has obtained certified construction type certification (certification number: 003-200328).
Note
Certifications are only for the products and jurisdictions indicated in the certification and should not be construed as a certification for any other jurisdiction or different product.
| Title | Date |
|---|---|
| RTKRYZ014AB00000BE - CE Declaration of Conformity (PDF) | Mar 8, 2022 |
| RTKRYZ014AB00000BE - UKCA Declaration of Conformity (PDF) | Mar 8, 2022 |
Features
- Wireless module
- LTE Cat-M1 Cellular IoT Module RYZ014A (RYZ014A000FZ00#HD0)
- PMOD™ interface
- Easy connection to Renesas MCU kits via PMOD (UART)
- USB interface
- Can be used for various interfaces
- Antenna interface
- Can be used for various external antennas
- Control software
- Supported by the RA MCU family’s Flexible Software Package (FSP)
- Driver for RX MCUs available
Documentation
|
|
Date | |
|---|---|---|
| PDF 214 KB | Quick Start Guide | |
| PDF 3.00 MB | Manual - Hardware | |
| PDF 1.14 MB | Application Note | |
| PDF 800 KB | Quick Start Guide | |
| PDF 843 KB | Quick Start Guide | |
| PDF 1005 KB | Quick Start Guide | |
| PDF 839 KB | Quick Start Guide | |
| PDF 1.15 MB | Quick Start Guide | |
| PDF 1010 KB | Quick Start Guide | |
| PDF 433 KB | Quick Start Guide | |
| PDF 274 KB | Manual - Hardware | |
| PDF 232 KB | Certificate | |
| PDF 235 KB | Certificate | |
