Overview

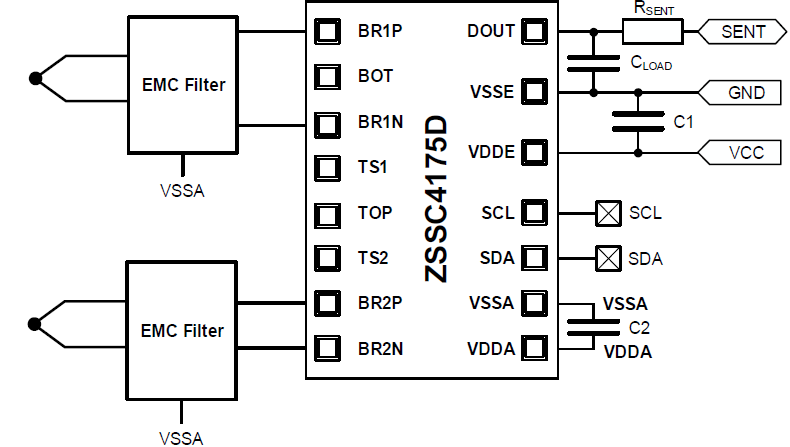

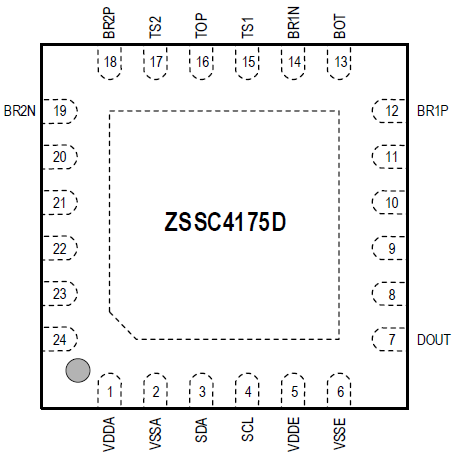

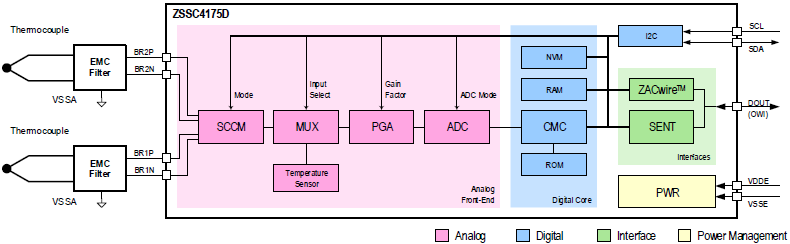

The ZSSC4175 is a member of IDT’s family of CMOS integrated circuits for highly accurate amplification and sensor-specific correction of two signals from thermocouple elements. Digital compensation of offset, sensitivity, temperature drift, and nonlinearity is accomplished via a 16-bit RISC microcontroller. Calibration coefficients and configuration data are stored in the ZSSC4175 non-volatile memory (NVM), which is reliable in automotive applications.

Measured values are provided via a digital SENT interface. The SENT interface enables transmission of conditioned thermocouple data via its Fast Channel as well as transmission of supplementary data via its Serial Data Message (SDM) Channel (also referred to as the “slow” channel) using only oneoutput pin. End-of-line calibration is also supported through this output pin via a One-Wire Interface (OWI). The ZSSC4175 and the calibration equipment communicate digitally, so the noise sensitivity is greatly reduced. Digital calibration helps keep assembly cost low as no trimming by external devices or lasers is needed.

The ZSSC4175 is optimized for automotive environments by over-voltage and reverse-polarity protection circuitry, excellent electromagnetic compatibility, and multiple diagnostic features.

  • Two differential thermocouple element inputs and an on-chip temperature sensor, available for cold-junction compensation and temperature output
  • Operating temperature range: -40°C to 150°C
  • Accuracy: up to 5K at 1000°C hot junction
  • Supports N-type thermocouples
  • NVM memory for configuration, calibration data, and configurable measurement and conditioning functionality
  • SENT output compliant to SAE J2716 JAN2010 (SENT Rev.3) and APR2016 (SENT Rev.4) standard
  • Supports output of one or more thermocouple signals and product identification via a single SENT interface connection
  • End-of-line calibration process minimizes production costs
  • No external trimming or components required
  • Qualified according to AEC-Q100 Grade 0
  • Enhanced diagnostic features for sensor module

Documentation

Title Type Date
PDF801 KB
Application Note
PDF167 KB
Datasheet - Short-form
7Z1.21 MB
Guide
ZIP1.52 MB
Guide
PDF2.39 MB
Manual - Software
PDF253 KB
White Paper

Design & Development

Software Downloads

Title Type Date
ZIP10.94 MB
Software & Tools - Evaluation Software
ZIP10.92 MB
Software & Tools - Evaluation Software

Boards & Kits

Support

Videos & Training

ZSSC416x/7x Sensor Signal Conditioners Automotive Overview

Modern vehicles are filled with complex sensor systems to achieve optimal performance and lower emissions. IDT's ZSSC416x and ZSSC417x family of sensor signal conditioner ICs are ideal for use in the engine and exhaust system. Sensing differential pressure at the mass airflow intake using a single IC attached to two sensors lowers power consumption and improves accuracy compared to traditional sensing systems. Manifold pressure and temperature sensing also benefits from the use of a dual input IC, with higher accuracy measurements resulting in a more optimal fuel mix.

The IDT ZSSC416x and ZSSC417x family of sensor signal conditioners provide a platform for measurement systems with improved accuracy, reliability, and performance with lower power consumption. The family of devices provides highly accurate amplification with integrated compensation, correction, and calibration, while also sharing a common four-millimeter by four-millimeter QFN package and tool set to reduce development and assembly costs.

For more information about IDT's sensor signal conditioner ICs visit www.IDT.com/products/sensor-products/sensor-signal-conditioners.

TRANSCRIPT

Modern vehicles are filled with complex sensor systems to achieve optimal performance and lower emissions. IDT's ZSSC416x and ZSSC417x family of sensor signal conditioner ICs are ideal for use in the engine and exhaust system. Sensing differential pressure at the mass airflow intake using a single IC attached to two sensors lowers power consumption and improves accuracy compared to traditional sensing systems. Manifold pressure and temperature sensing also benefits from the use of a dual input IC, with higher accuracy measurements resulting in a more optimal fuel mix.

High temperature sensing across the turbo-charger benefits from a simpler design and lower cost with both thermocouples connecting to the same IC. At the diesel particulate filter, IDT products enable more accurate measurements of filter saturation, resulting in less fuel waste for filter purging. Selective catalytic reduction adds urea to the exhaust to reduce harmful emissions. Improved measurement accuracy leads to better control of urea dosing, reducing urea overuse and refilling costs for the vehicle owner. By more accurately measuring temperature and pressure in the fuel line, the control unit can provide the best fuel/air mix, lowering emissions and improving engine performance.

Compared to traditional anemometers, the sensors used with IDT sensor signal conditioner products are more durable in the harsh environment of exhaust mass airflow measurements, leading to a more reliable, lower power solution. The IDT ZSSC416x and ZSSC417x family of sensor signal conditioners provide a platform for measurement systems with improved accuracy, reliability, and performance with lower power consumption. The family of devices provides highly accurate amplification with integrated compensation, correction, and calibration, while also sharing a common four-millimeter by four-millimeter QFN package and tool set to reduce development and assembly costs. For more information on IDT's ZSSC416x and ZSSC417x sensor signal conditioners, visit idt.com
