Flexible Single Ended Current Mode PWM Controller
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description
The ISL6721 is a low power, single-ended Pulse Width Modulating (PWM) current mode controller designed for a wide range of DC/DC conversion applications including Boost, Flyback and isolated output configurations. Peak current mode control effectively handles power transients and provides inherent overcurrent protection. Other features include a low power mode where the supply current drops to less than 200μA during overvoltage and overcurrent shutdown faults. This advanced BiCMOS design features low operating current, adjustable operating frequency up to 1MHz, adjustable soft-start, and a bidirectional SYNC signal that allows the oscillator to be locked to an external clock for noise sensitive applications.
Features
- 1A MOSFET gate driver
- 100μA start-up current
- Fast transient response with peak current mode control
- Adjustable switching frequency up to 1MHz
- Bidirectional synchronization
- Low power disable mode
- Delayed restart from OV and OC shutdown faults
- Adjustable slope compensation
- Adjustable soft-start
- Adjustable overcurrent shutdown threshold
- Adjustable UV and OV monitors
- Leading edge blanking
- Integrated thermal shutdown
- 1% tolerance voltage reference
- Pb-free available (RoHS compliant)
Applications
Applications
- Telecom and Datacom Power
- Wireless Base Station Power
- File Server Power
- Industrial Power Systems
- Isolated Buck and Flyback Regulators
- Boost Regulators
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF1.11 MB
|
Datasheet
|
||
PDF509 KB
|
Application Note
|
||
PDF397 KB
|
Application Note
|
||
PDF603 KB
|
End Of Life Notice
|
||
PDF200 KB
|
End Of Life Notice
|
||
PDF124 KB
|
End Of Life Notice
|
||
PDF131 KB
|
Product Change Notice
|
||
PDF266 KB
|
Product Change Notice
|
||
PDF218 KB
|
Product Change Notice
|
||
PDF398 KB
|
Product Change Notice
|
||
PDF223 KB
|
Product Change Notice
|
||
PDF77 KB
|
Product Change Notice
|
||
PDF98 KB
|
Product Change Notice
|
||
PDF108 KB
|
Product Change Notice
|
Design & Development
Software & Tools
Software & Tools
| iSim:PE Offline Simulation TooliSim Personal Edition (iSim:PE) speeds the design cycle and reduces risk early in any project, identifying parts that can be used in current as well as next-generation designs.Downloads: | Simulator | Renesas |
Boards & Kits
Boards & Kits

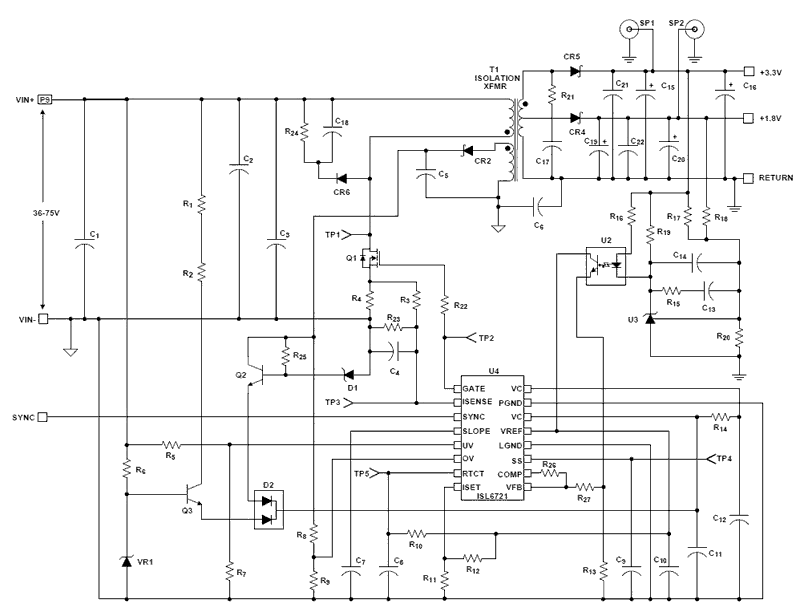

Resonant Reset Forward Converters for Low Power Applications Evaluation Board
The ISL6721EVAL3Z evaluation board serves as a reference design for a single switch resonant reset forward converter with multiple outputs for typical industry...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| SOICN | Reel | 2500 | ||
| TSSOP | Tube | 960 | Get Samples, | |
| TSSOP | Reel | 2500 |
