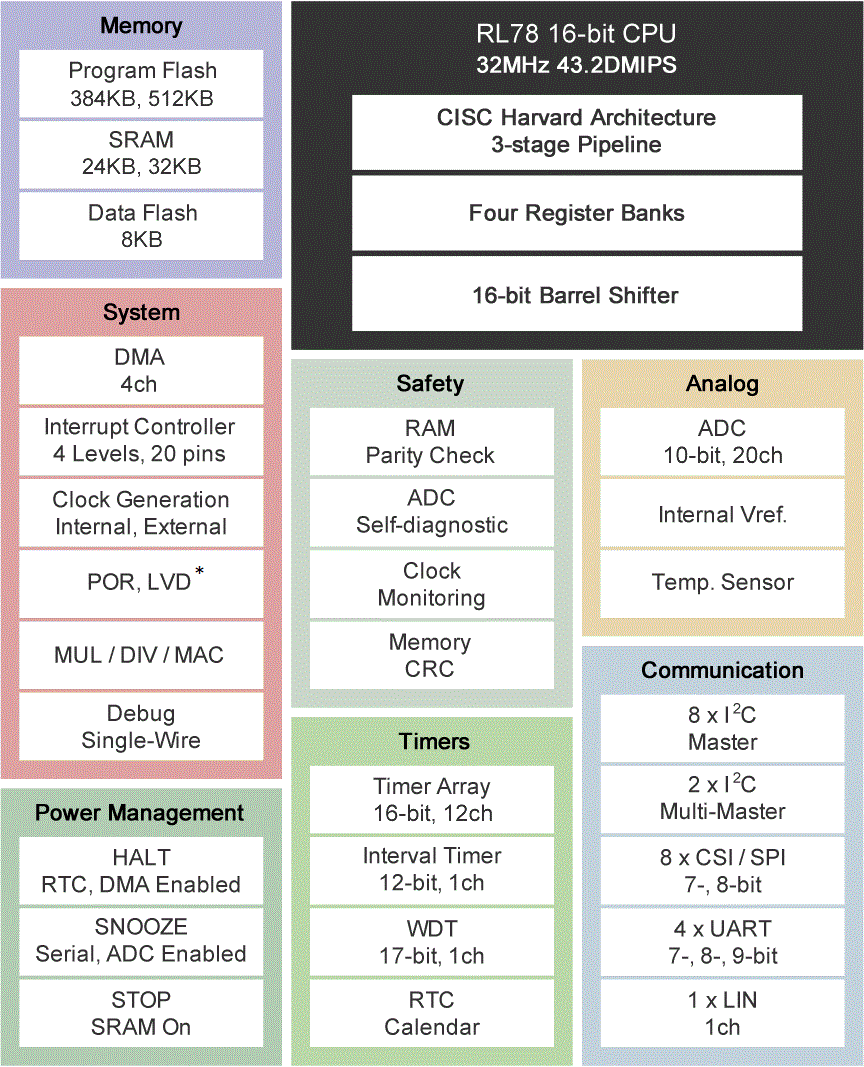

Overview

The General-purpose microcomputer with lower operating current than RL78/G13.

CPU: RL78 core, Max. 32MHz
Voltage: 1.6V to 5.5V
Package: 48 to 100-pin LFQFP, 44-pin LQFP
Memory: SRAM Max. 32KB, Program Flash Max. 512KB
Timer: 16-bit Timer (ch) x 8, Watchdog Timer (ch) x 1, 12-bit Interval Timer x 1 ch
PWM: PWM Output x 7
On-chip Oscillator Freq. (MHz): High-Speed: 32, 24, 16, 12, 8, 4, 1MHz Low-speed: 15kHz
Others: RTC, Power-On Reset, Low Voltage Detection

Applications

Office Automation
Home Appliance
Healthcare
Security
