Overview
Description

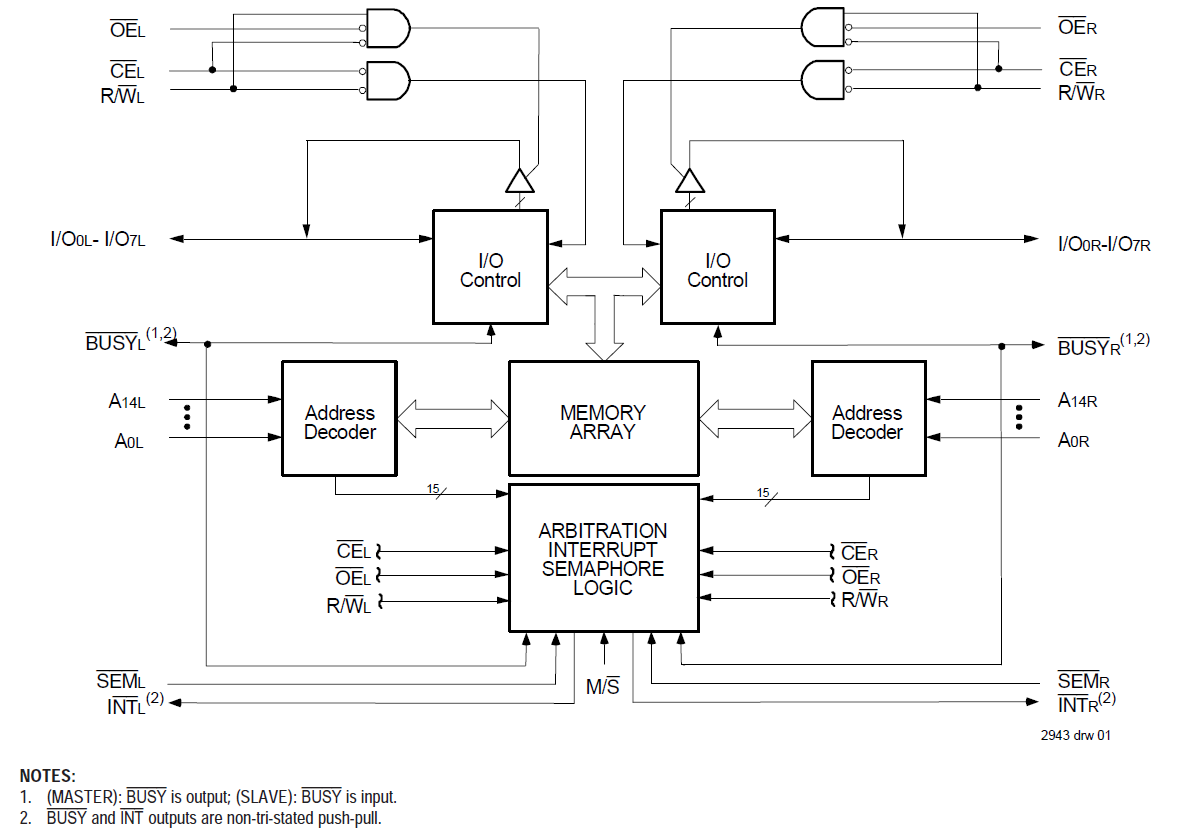

The 70V07 is a high-speed 32K x 8 Dual-Port Static RAM designed to be used as a stand-alone 256K-bit Dual-Port SRAM or as a combination MASTER/SLAVE Dual-Port SRAM for 16-bit-or-more word systems which results in full speed, error-free operation without the need for additional discrete logic. An automatic power down feature controlled by CE permits the on-chip circuitry of each port to enter a very low standby power mode.
Features
- True Dual-Ported memory cells which allow simultaneous reads of the same memory location
- 70V07 easily expands data bus width to 16 bits or more
- Interrupt Flag
- On-chip port arbitration logic
- Full on-chip hardware support of semaphore signaling between ports
- Fully asynchronous operation from either port
- TTL-compatible, single 3.3V (±0.3V) power supply
- Available in 68-pin PGA and PLCC, and 80-pin TQFP packages
- Industrial temperature range (-40C to +85C) is available
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF436 KB
|
Datasheet
|
||
PDF129 KB
|
Application Note
|
||
PDF197 KB
|
Application Note
|
||
PDF198 KB
|
Application Note
|
||
PDF156 KB
|
Application Note
|
||
PDF183 KB
|
Application Note
|
||
PDF97 KB
|
Application Note
|
||
PDF1.29 MB
|
End Of Life Notice
|
||
PDF938 KB
|
End Of Life Notice
|
||
PDF909 KB
|
End Of Life Notice
|
||
PDF645 KB
|
End Of Life Notice
|
||
PDF123 KB
|
Guide
|
||
PDF567 KB
|
Product Change Notice
|
||
PDF24 KB
|
Product Change Notice
|
||
PDF223 KB
|
Product Change Notice
|
||
PDF164 KB
|
Product Change Notice
|
||
PDF729 KB
|
Product Change Notice
|
||
PDF290 KB
|
Product Change Notice
|
||
PDF80 KB
|
Product Change Notice
|
||
PDF44 KB
|
Product Change Notice
|
||
PDF38 KB
|
Product Change Notice
|
||
PDF26 KB
|
Product Change Notice
|
||
PDF134 KB
|
Product Change Notice
|
||
PDF150 KB
|
Product Change Notice
|
||
PDF65 KB
|
Product Change Notice
|
||
PDF150 KB
|
Product Change Notice
|
||
PDF48 KB
|
Product Change Notice
|
||
PDF40 KB
|
Product Change Notice
|
||
PDF47 KB
|
Product Change Notice
|
||
PDF274 KB
|
Product Change Notice
|
||
PDF19 KB
|
Product Change Notice
|
||
PDF44 KB
|
Product Change Notice
|
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
Buy / Sample |
|---|---|---|---|---|---|---|
| TQFP | 80 | I | Yes | Tray | Get Samples, | |
| TQFP | 80 | I | Yes | Reel |
