Evaluation Kit for 9FGV1002 Programmable PhiClock™ Generator
This is the evaluation board for the 9FGV1002 programmable PhiClockTM generator. It provides a convenient way of configuring and programming the blank parts for the...
Programmable PhiClock™ Generator
Jump to Page Section:
Overview
Description

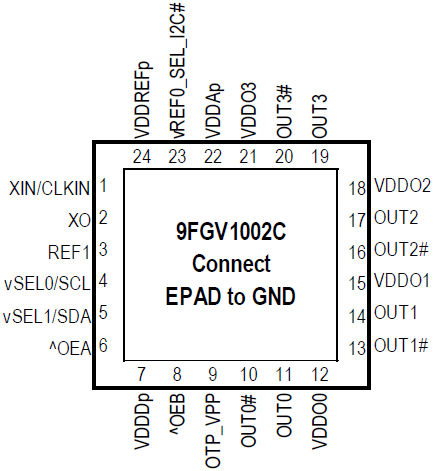

The 9FGV1002 is a member of Renesas' PhiClock™ programmable clock generator family. The 9FGV1002 provides four spread-spectrum copies of a single output frequency and two copies of the crystal reference input. Two select pins allow for hardware selection of the desired configuration, or two I²C bits all easy software selection of the desired configuration. The user may configure any one of the four OTP configurations as the default when operating in I²C mode. Four unique I²C addresses are available, allowing easy I²C access to multiple components.
Features
-
PCIe Gen1–6 compliant
-
PCIe Gen6 Common Clock jitter < 50fs RMS
-
276fs RMS typical phase jitter at 156.25MHz (12kHz–20MHz)
-
4 programmable output pairs plus 2 LVCMOS REF outputs
-
1 integer, fractional or spread-spectrum output frequency per configuration
-
1MHz–325MHz output frequency (LVDS or LP-HCSL)
-
1MHz–200MHz output frequency (LVCMOS)
- 1.8V to 3.3V core VDD
-
Individual 1.8V, 2.5V or 3.3V VDDO for each programmable output pair
-
Supports HCSL, LVDS and LVCMOS I/O standards
-
Supports AC-coupled LVPECL and CML logic – see AN-891
-
4 × 4 mm 24-VFQFPN and 24-LGA packages with 50MHz integrated crystal option
-
Supported by Timing Commander™ software
