2-Output 1.8 V PCIe Gen1-4 Clock Generator with Zo=100 ohms
Jump to Page Section:
Overview
Description

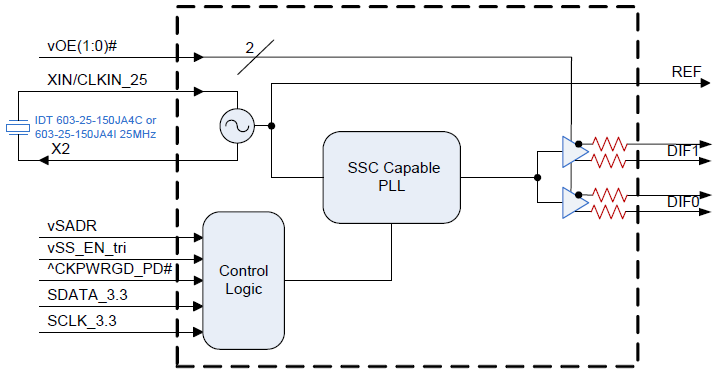

The 9FGV0241 is a 2-output very low power frequency generator for PCIe Gen1–4 applications with integrated output terminations providing Zo=100 Ω. The device has 2 output enables for clock management and supports 2 different spread spectrum levels in addition to spread off.
Features
- PCIe Gen1–4 compliant
- Integrated terminations provide 100 Ω differential Zo: reduced component count and board space
- 1.8 V operation: reduced power consumption
- OE# pins: support DIF power management
- LP-HCSL differential clock outputs: reduced power and board space
- Programmable slew rate for each output: allows tuning for various line lengths
- Programmable output amplitude: allows tuning for various application environments
- DIF outputs blocked until PLL is locked: clean system start-up
- Selectable 0%, -0.25% or -0.5% spread on DIF outputs: reduces EMI
- External 25 MHz crystal; supports tight ppm with 0 ppm synthesis error
- Configuration can be accomplished with strapping pins: SMBus interface not required for device control
- 3.3 V tolerant SMBus interface works with legacy controllers
- Space-saving 4x4 mm 24-pin VFQFPN; minimal board space
Applications
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 316 KB | Datasheet | ||
| PDF 91 KB | Application Note | ||
| PDF 1.99 MB | Application Note | ||
| PDF 255 KB | Application Note | ||
| PDF 307 KB | Application Note | ||
| PDF 480 KB | Application Note | ||
| PDF 235 KB | Application Note | ||
| PDF 1.90 MB | Application Note | ||
| PDF 495 KB | Application Note | ||
| PDF 442 KB | Application Note | ||
| PDF 233 KB | Application Note | ||
| PDF 160 KB | Application Note | ||
| PDF 120 KB | Application Note | ||
| PDF 565 KB | Application Note | ||
| PDF 136 KB | Application Note | ||
| PDF 321 KB 简体中文 | Guide | ||
| PDF 2.40 MB | Overview | ||
| PDF 1.83 MB | Overview | ||
| PDF 734 KB | Product Change Notice | ||
| PDF 728 KB | Product Change Notice | ||
| PDF 726 KB | Product Change Notice | ||
| PDF 2.97 MB | Product Change Notice | ||
| PDF 5.71 MB | Product Change Notice | ||
| PDF 5.61 MB | Product Change Notice | ||
| PDF 983 KB | Product Change Notice | ||
| PDF 583 KB | Product Change Notice | ||
| PDF 361 KB | Product Change Notice | ||
| PDF 27 KB | Schematic | ||
28 items
|
|||
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| VFQFPN | 24 | I | Yes | Tray | Get Samples, | |
| VFQFPN | 24 | I | Yes | Reel | ||
| VFQFPN | 24 | C | Yes | Tray | Get Samples, | |
| VFQFPN | 24 | C | Yes | Reel |
