The P9415 is a highly-integrated single-chip wireless power receiver targeted for 30W applications. The device can be configured to receive or transmit an AC power signal through magnetic induction. When the device is configured as a wireless power transmitter, it uses an on-chip full/half-bridge inverter, a PWM generator, and a modulator/demodulator for communication, and a micro-controller to produce an AC power signal to drive external L-C tank to Wattshare. As a receiver, the P9415 receives an AC power signal from a wireless transmitter and converts it into rectified output voltage, which can be then used to power devices or supply the charger input in mobile applications.

The P9415 feature Multiple-time programmable (MTP) non-volatile memory to easily update control firmware and device functions. The P9415 receiver accommodates up to 20V out of the on-board LDO with the ultra-accurate current sense capability necessary for high power applications. It is footprint compatible with Renesas' existing P9382A 15V receiver to provide a compelling upgrade option delivering even faster charging times.

The device includes over-temperature and robust over voltage protection. Fault conditions associated with power transfer are managed by an industry-leading 32-bit ARM® Cortex®-M0 processor offering a high level of programmability while consuming extremely low standby power. The processor can also control GPIOs to indicate operating and fault modes. The P9415 is available in an ultra-small WLCSP-53 package.

For information regarding evaluation boards and material, please contact your local Renesas sales representative.

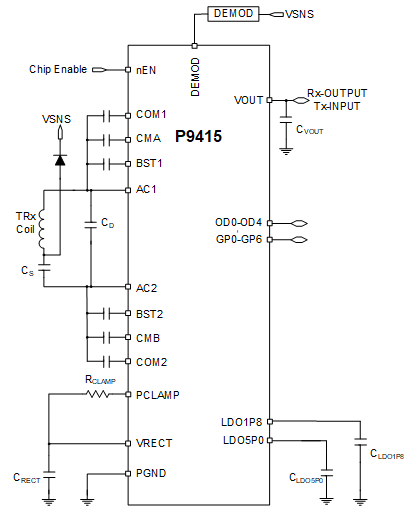

Features

  • Delivers up to 30W as a receiver
  • Wattshare up to 10W in Transmit mode
  • Footprint compatible with Renesas' existing P9382A 15V receiver
  • WPC 1.2.4 compatible
  • Supports proprietary fast charging modes with authentication
  • Single chip medium power wireless sSolution with 24kB Multiple-time programmable (MTP) non-volatile memory
  • Full synchronous rectifier with low resistance switches
  • High performance LDO
  • Embedded 32-bit ARM Cortex-M0 processor
  • Reliable over-voltage clamping
  • Best-in-class EMI
  • Proprietary Rx-to-Tx modulation/demodulation for Bi-Directional communication
  • Supports I2C 400kHz standard interface and GPIOs
  • Package: 6 × 9 ball array, 2.82 × 4.22 mm, 53-WLCSP package with 0.4mm ball pitch

descriptionDocumentation

Title language Type Format File Size Date
star P9415 Datasheet Datasheet PDF 581 KB
Wireless Power Transmission Resonance LC Calculations Application Note PDF 3.74 MB
IDT WLCSP Implementation Guidelines Application Note PDF 662 KB
P9415 Multi-time Programmable (MTP) Programming Guide Guide PDF 261 KB
PCN# : 200008 Add Alternate Foundry and Bump Locations on WLCSP-53 and WLCSP-54 Product Change Notice PDF 1.95 MB
PCN# : WP1909-01 Die Revision Change from Rev E to Rev F Product Change Notice PDF 111 KB
Wireless Power LDO Droop Tech Note Technical Brief PDF 559 KB
Tuning Qi and AirFuel / PMA Inductive Resonance Circuits for Optimal Efficiency White Paper PDF 627 KB
