Buck and Synchronous Rectifier Pulse-Width Modulator (PWM) Controller
NOTICE - The following device(s) are recommended alternatives:
Jump to Page Section:
Overview
Description

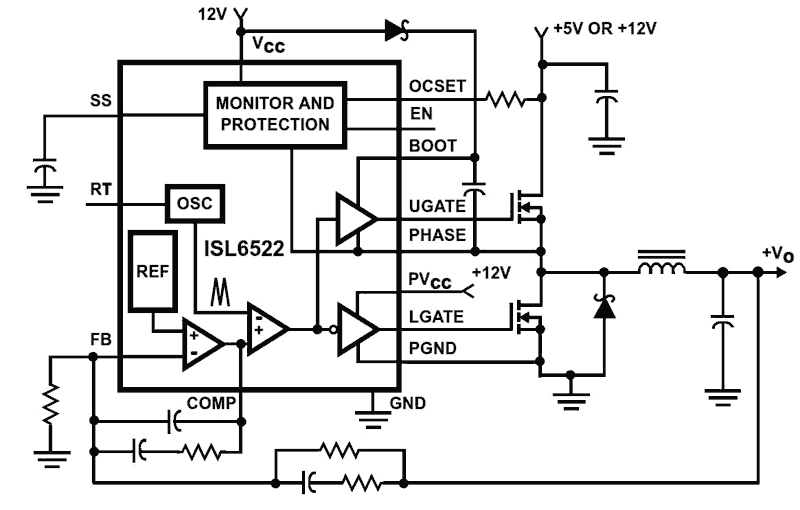

The ISL6522 provides complete control and protection for a DC-DC converter optimized for high-performance microprocessor applications. It is designed to drive two N-Channel MOSFETs in a synchronous rectified buck topology. The ISL6522 integrates all of the control, output adjustment, monitoring and protection functions into a single package. The output voltage of the converter can be precisely regulated to as low as 0.8V, with a maximum tolerance of ±1% over temperature and line voltage variations. The ISL6522 provides simple, single feedback loop, voltage-mode control with fast transient response. It includes a 200kHz free-running triangle-wave oscillator that is adjustable from below 50kHz to over 1MHz. The error amplifier features a 15MHz gain-bandwidth product and 6V/µs slew rate which enables high converter bandwidth for fast transient performance. The resulting PWM duty ratio ranges from 0-100%. The ISL6522 protects against overcurrent conditions by inhibiting PWM operation. The ISL6522 monitors the current by using the rDS(ON) of the upper MOSFET which eliminates the need for a current sensing resistor.
Features
- Drives two N-Channel MOSFETs
- Operates from +5V or +12V input
- Simple single-loop control design
- Voltage-mode PWM control
- Fast transient response
- High-bandwidth error amplifier
- Full 0-100% duty ratio
- Excellent output voltage regulation
- 0.8V internal reference
- ±1% over line voltage and temperature
- Overcurrent fault monitor
- Does not require extra current sensing element
- Uses MOSFETs rDS(ON)
- Converter can source and sink current
- Small converter size
- Constant frequency operation
- 200kHz free-running oscillator programmable from 50kHz to over 1MHz
- 14-lead SOIC and TSSOP package and 16-lead 5x5mm QFN Package
- QFN Package
- Compliant to JEDEC PUB95 MO-220 QFN-Quad Flat No Leads-Product Outline.
- Near Chip-Scale Package Footprint; Improves PCB Efficiency and Thinner in Profile
- Pb-Free Available (RoHS Compliant)
Applications
Applications
- Power supply for Pentium®, Pentium Pro, PowerPC® and AlphaPC microprocessors
- High-power 5V to 3xV DC-DC regulators
- Low-voltage distributed power supplies
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 818 KB | Datasheet | ||
| PDF 509 KB | Application Note | ||
| PDF 397 KB | Application Note | ||
| PDF 320 KB | End Of Life Notice | ||
| PDF 562 KB | Other | ||
| PDF 169 KB | Product Change Notice | ||
| PDF 108 KB | Product Change Notice | ||
| PDF 152 KB | Product Change Notice | ||
