Renesas' high-speed, low-power, digital-to-analog data converters (DACs) are ideal for communication systems, medical/test instrumentation and equipment, and video applications.
Renesas' high-speed, low-power, digital-to-analog data converters (DACs) are ideal for communication systems, medical/test instrumentation and equipment, and video applications.

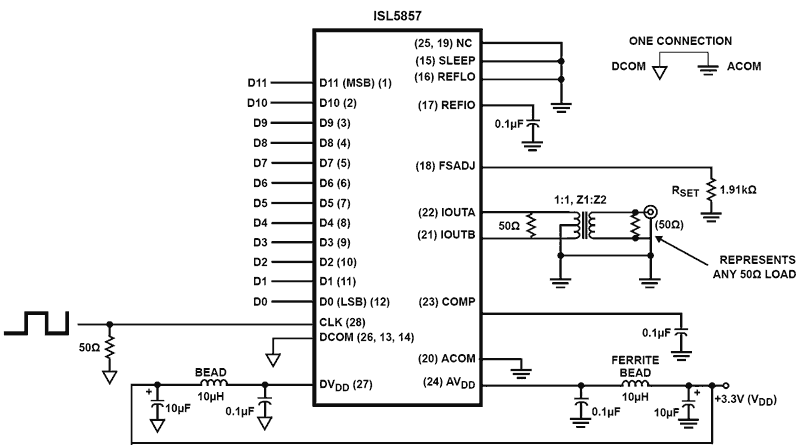

Title | Other Languages | Type | Format | File Size | Date | |
---|---|---|---|---|---|---|
Application Notes & White Papers | ||||||
AN9816: High Frequency AGC Has Digital Control | – | Application Note | 238 KB | |||
AN9619: Optimizing Setup Conditions for High Accuracy Measurements of the HI5741 | – | Application Note | 654 KB | |||
AN9629: Multi-Tone Performance of the HI5741 | – | Application Note | 480 KB | |||
AN9641: High-Frequency VGA Has Digital Control | – | Application Note | 207 KB | |||
AN9675: A Tutorial in Coherent and Windowed Sampling with A/D Converters | – | Application Note | 503 KB | |||
AN9654: Use of Life Tested Parts | – | Application Note | 224 KB | |||
AN002: Principles of Data Acquisition and Conversion | – | Application Note | 1.08 MB | |||
AN9705: A Theoretical View of Coherent Sampling | – | Application Note | 287 KB | |||
Other | ||||||
Analog ICs Brochure | – | Brochure | 4.19 MB |
Resolution (bits) | Conversion Rate (Max) (kSPS) | Output I/V | Supply Voltage Vs Range | Integral NonLinearity LSB | Differential NonLinearity LSB | SFDR (Typical) to Nyquist | Power (text) | VREF | Icc (Typical) (mA) | Io (mA) | Output Voltage (V) | Application | Remarks | VS (Min) (V) | VS (Max) (V) | Qualification Level | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8-Bit, 125/60MSPS, High Speed D/A Converter | 8 | 60000, 125000 | I | 3 to 5 | 0.5 | 0.5 | 61dBc 10.1MHz@125Msps | 27mW at 100Msps (3V) | Int | 3 V | 5 V | Standard | |||||
12-Bit, 100 MSPS, High Speed D/A Converter | 12 | 100000 | I | -5.2, 5 | 1.5 | 1 | 69dBc 2MHz@100Msps | 650mW at 100Msps | Int/Ext | Standard | |||||||
10-Bit, 125/60MSPS, High Speed D/A Converter | 10 | 60000, 125000 | I | 3 to 5 | 1 | 0.5 | 68dBc 5MHz@100Msps | 27mW at 100Msps (3V) | Int/Ext | 3 V | 5 V | Standard | |||||
12-Bit, 130 MSPS, High Speed D/A Converter | 12 | 130000 | I | 3 to 5 | 2 | 1 | 76dBc 2.5MHz@50Msps | 32mW at 100Msps (3V) | Int/Ext | 3 V | 5 V | Standard | |||||
14-Bit, 130MSPS, CommLink™ High Speed D/A Converter | 14 | 130000 | I | 3 to 5 | 5 | 3 | 77dBc 2.5MHz@50Msps | 84mW at 130Msps (3V) | Int/Ext | 3 V | 5 V | Standard | |||||
12-bit, +3.3V, 260MSPS, High Speed D/A Converter | 12 | 260000 | I | 3.3 | 1.25 | 1 | 73dBc 10MHz@130Msps | 157mW at 260Msps | Int/Ext | 3.3 V | 3.3 V | Standard | |||||
12-Bit, +3.3V, 210/130MSPS, CommLink High Speed D/A Converter | 12 | 130000, 210000 | I | 2.7 to 3.6 | 1.25 | 1 | 73dBc 10MHz@130Msps | 110mW at 200Msps | Int/Ext | 2.7 V | 3.6 V | Standard | |||||
14-Bit, +3.3V, 260MSPS, High Speed D/A Converter | 14 | 260000 | I | 2.7 to 3.6 | 5 | 3 | 75dBc 10MHz@130Msps | 157mW at 260Msps | Int/Ext | 2.7 V | 3.6 V | Standard | |||||
14-Bit, +3.3V, 210/130MSPS, CommLink High Speed D/A Converter | 14 | 130000, 210000 | I | 2.7 to 3.6 | 5 | 3 | 75dBc 10MHz@130Msps | 110mW at 200Msps | Int/Ext | 2.7 V | 3.6 V | Standard | |||||
8-bit I/O Expander for I²C BUS (Corresponds to Fast mode) | 8 | V | 3 to 5 | 0.05 | 4 | MCU/MPU's I/O Expander | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 2ch D/A Converter with Buffer Amplifiers for I²C BUS (Corresponds to Fast mode) | 8 | V | 3 to 5 | 0.5 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 4ch D/A Converter with Buffer Amplifiers for I²C BUS (Corresponds to Fast mode) | 8 | V | 3 to 5 | 0.8 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 8ch D/A Converter with Buffer Amplifiers for I²C BUS (Corresponds to Fast mode) | 8 | V | 3 to 5 | 0.4 | 2 | D/A Converter | 2.7 to 5.5V | ||||||||||
8-bit 2ch D/A Converter with Buffer | 8 | V | 3 to 5 | 0.7 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 2ch D/A Converter with Buffer | 8 | V | 3 to 5 | 0.7 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 2ch D/A Converter with Buffer | 8 | V | 3 to 5 | 0.7 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 4ch D/A Converter with Buffer Amplifiers | 8 | V | 3 to 5 | 0.3 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 4ch D/A Converter with Buffer Amplifiers | 8 | V | 3 to 5 | 0.3 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 6ch D/A Converter with Buffer Amplifiers | 8 | V | 3 to 5 | 0.35 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 8ch D/A Converter with Buffer Amplifiers | 8 | V | 3 to 5 | 0.4 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 8ch D/A Converter with Buffer Amplifiers | 8 | V | 3 to 5 | 0.4 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 8ch D/A Converter with Buffer Amplifiers | 8 | V | 3 to 5 | 0.4 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 12ch D/A Converter with Buffer Amplifiers | 8 | V | 3 to 5 | 0.6 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 12ch D/A Converter with Buffer Amplifiers | 8 | V | 3 to 5 | 0.6 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 12ch D/A Converter with Buffer Amplifiers | 8 | V | 3 to 5 | 0.6 | 2 | D/A Converter | 2.7 to 5.5V Builtin Power On Reset | ||||||||||
8-bit 8ch Multiplying D/A Converter with Buffer Amplifiers | 8 | V | 3 to 5 | 1.5 | 2 | D/A Converter | 2.7 to 5.5V |
