Highly Integrated Advanced Bluetooth® 5.2 SoC
Jump to Page Section:
Overview
Description

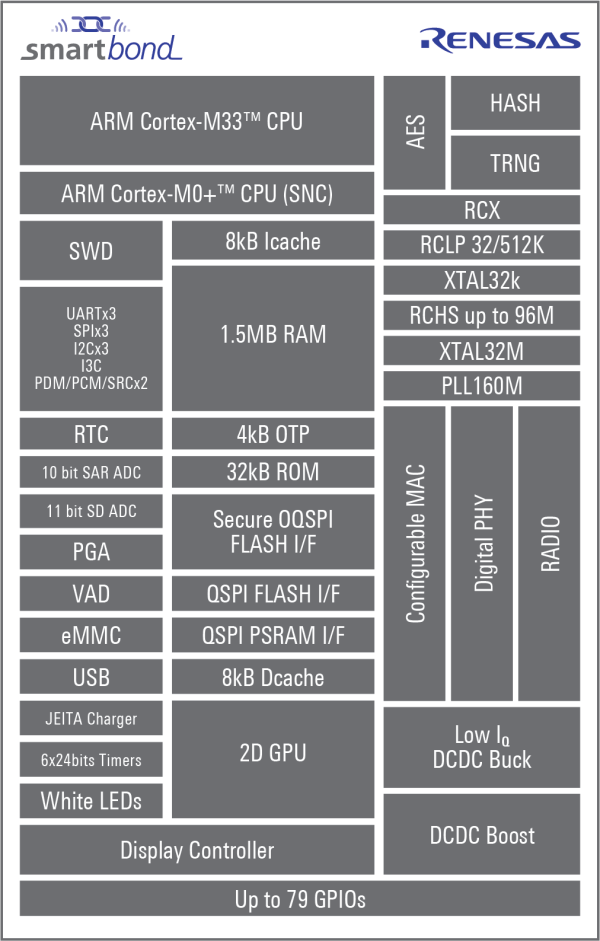

DA14706 builds off the successes of Renesas’ SmartBond™ line, with Arm Cortex®-M33F at 160 MHz as integrated application processors, 2D graphics processor, Voice Activity Detector (VAD) and Power Management Unit (PMU). With its ultra-low-power radio transceiver offering +6 dBm output power, and -97 dBm sensitivity combined with its software-configurable and upgradeable protocol engine (MAC), the DA14706 is capable of supporting Bluetooth® low energy as well as multiple other 2.4GHz protocols. These unique features make the DA14706 the first product in the wireless SoC space to offer this level of integration.
Features
- Multi-core system – CM33F as main application core and CM0+ as sensor node controller
- Dedicated 2D GPU & display controller supporting DPI, JDI parallel, DBI and Single/Dual/Quad SPI interfaces
- Integrated charger and system Power Management Unit (PMU)
- Configurable MAC supporting Bluetooth® LE 5.2 and proprietary 2.4 GHz protocols.
- State of the art low power Bluetooth® LE radio matched to 50 ohms with a link budget of 103 dB optimizing battery life, system cost and connectivity over the air
- Ultra-low power Voice Activity Detector (VAD)
- Advanced security with state-of-the-art crypto accelerators, secure boot and key storage and handling
Applications
Applications
- Fitness trackers
- Sports watches
- Medical devices (e.g. glucose monitoring readers)
- Smart home devices and appliances (e.g. thermostat, white goods, etc.)
- Industrial automation and security systems (e.g. mobile POS, HMI terminals, etc.)
- Smart consoles (e.g. e-bike, exercise equipment, gaming consoles, etc.)
- Toys
