概要

The ZSPM8001-KIT supports evaluation of DC/DC point-of-load (POL) applications. The kit incorporates the ZSPM1005 digital PWM controller IC and the ZSPM9060 DrMOS power output stage to form a "smart" buck converter (a.k.a. step-down DC-to-DC converter). The ZSPM8001-KIT Evaluation Kit hardware functions with the Pink Power Designer™ Graphical User Interface (GUI), which is used for communication and programming of the ZSPM1005. The GUI requires the MATLAB® runtime environment. The GUI software and runtime environment are available for download.

The kit includes the PMBus™ Communication Interface, which provides the interface between the ZSPM8001 Evaluation Kit and the user's computer.

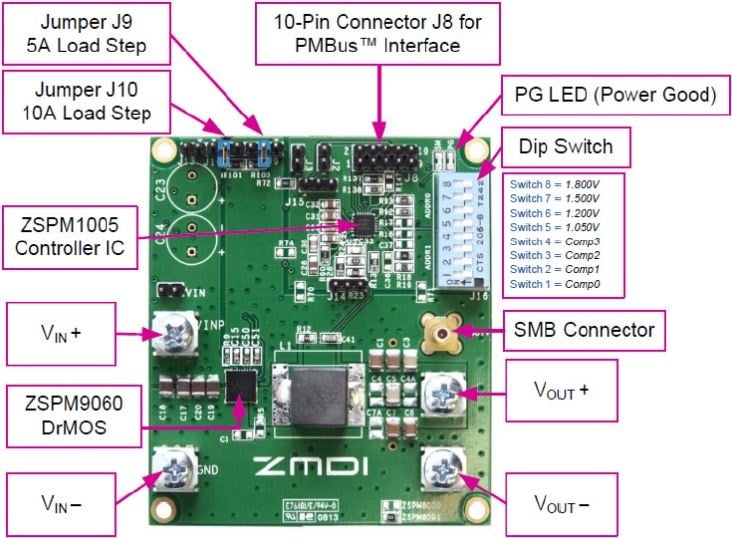

ZSPM8001KIT - Evaluation Kit (Top View)
ZSPM8001KIT - Evaluation Kit (Top View)
  • ZSPM8001 Evaluation Board with one ZSPM1005 sample and one ZSPM9060 sample mounted
  • PMBus™ Communication Interface
  • USB Cable
タイトル カテゴリ ご購入/サンプル
ZSPM1005
True Digital PWM Controller (Single-Phase, Single-Rail)
 General Parts ご購入/お見積
ZSPM9060
Ultra-Compact, High-Performance, High-Frequency DrMOS Device
 General Parts ご購入/お見積

ドキュメント

タイトル 分類 日付
ZSPM8001-KIT Evaluation Kit Description
PDF1.98 MB
マニュアル－開発ツール
ZSPM8001-KIT Start-up Guide
PDF459 KB
マニュアル－開発ツール
ZSPM1005 Pink Power Designer User Manual
PDF1.29 MB
マニュアル－開発ツール

設計・開発

ソフトウェアダウンロード

タイトル 分類 日付
ZSPM1005 GUI Environment
ZIP167.31 MB
ソフトウェア／ツール－その他
ZSPM1005 Pink Power Designer™ GUI Rev. 0.9.4
ZIP16.97 MB
ソフトウェア／ツール－その他

ボード＆キット

ZSPM8xxx-COMM - Communication Interface

ZSPM8xxx-COMM

Evaluation
ご購入

Communication Interface for ZSPM2000 and Select ZSPM8xxx Evaluation Kits

The PMBus™ Communication Interface (CI) provides the interface between the Evaluation Board and the user's computer for the ZSPM2000 Evaluation Kit and select ZSPM8xxx...

製品選択
