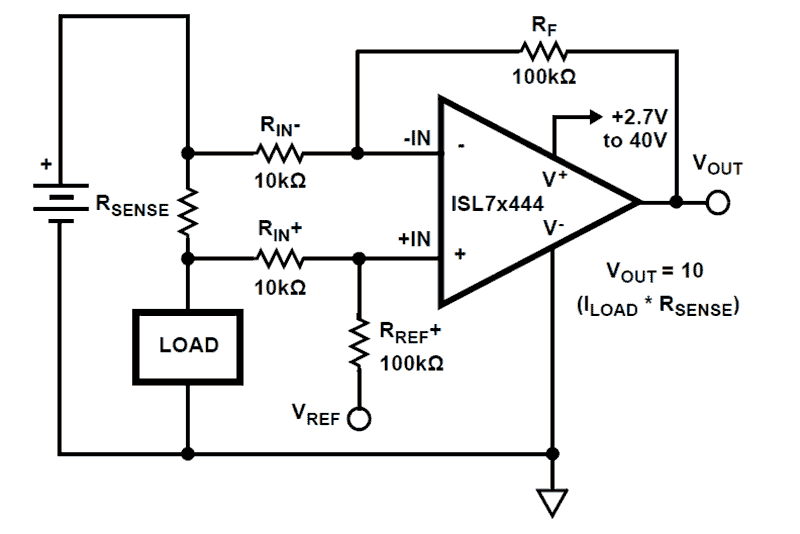

The ISL70444SEH features four low-power amplifiers optimized to provide maximum dynamic range. This operational amplifier (op amps) features a unique combination of rail-to-rail operation on the input and output as well as a slew enhanced front-end that provides ultra fast slew rates positively proportional to a given step size, thereby increasing accuracy under transient conditions, whether it's periodic or momentary. The ISL70444SEH also offers low power, low offset voltage, and low-temperature drift, making it ideal for applications requiring both high DC accuracy and AC performance. With <5µs recovery for Single Event Transients (SET) (LETTH = 86. 4MeV•cm2/mg), the number of filtering components needed is drastically reduced. The ISL70444SEH is also immune to single event latch-up because it is fabricated using the Renesas proprietary PR40 Silicon On Insulator (SOI) process. The amplifier is designed to operate over a single supply range of 2. 7V to 40V or a split supply voltage range of ±1. 35V to ±20V. Applications for this amplifier include precision instrumentation, data acquisition, precision power supply controls, and process controls. The ISL70444SEH are available in a 14 Ld hermetic ceramic flatpack and die forms that operate across the temperature range of -55°C to +125°C.
特長
- Electrically screened to DLA SMD# 5962-13214
- Acceptance tested to 50krad(Si) (LDR) wafer-by-wafer
- <5µs recovery from SEE (LETTH = 86.4MeV•cm2/mg)
- Unity gain stable
- Rail-to-rail input and output
- Wide gain·bandwidth product: 19MHz
- Wide single and dual supply range: 2.7V to 40V max
- Low input offset voltage: 400µV
- Low current consumption (per amplifier): 1.1mA, typ
- No phase reversal with input overdrive
- Slew rate - Large signal: 60V/µs
- Operating temperature range: -55°C to +125°C
- Radiation acceptance (see TID report)
- High dose rate (50-300rad(Si)/s): 300krad(Si) (ISL70444SEH only)
- Low dose rate (0.01rad(Si)/s): 50krad(Si)
- SEE hardness (see SEE report for details)
- SEB LETTH (VS = ±21V): 86.4MeV•cm2/mg
- SEL immune (SOI Process)
製品比較
アプリケーション
設計・開発
ソフトウェア／ツール
ボード＆キット
Evaluation
ISL70444SEHEVAL1Z
アクティブ
Rad Hard 40V Quad Op Amp Evaluation Board
The ISL70444SEHEVAL1Z evaluation platform is designed to evaluate the ISL70444SEH 19MHz radiation hardened 40V quad rail-to-rail input-output (RRIO), low power operational amplifier. The ISL70444SEH contains four high-speed, low power op amps designed to take advantage of its full dynamic input...
Recommended Documents:
Evaluation
ISL73141BMREFEVKITxZ
アクティブ
バッテリーモニター評価キット
ISL73141BMREFEVKIT1Z評価キットは、8セルのバッテリ電圧監視アプリケーションで ISL73141SEH ビットSAR ADCの評価を行います。 リチウム電池セル電圧の監視は、電池を低電圧および過電圧状態から保護するために重要です。
ISL73141BMREFEV1Z 8セル・バッテリ・モニタ・メイン・ボードは、アナログ・デバイセズの耐放射線性ISL70444SEHクワッド40Vレール・ツー・レール・オペアンプ、ISL71830SEH 16チャネル・マルチプレクサ、ISL73141SEH 14ビット1000ksps SAR...
Recommended Documents:
モデル
ECADモデル
SamacSysの回路図シンボル、PCBフットプリント、および3D CADモデルは、製品オプションテーブルのCADモデルリンクをクリックすることで参照できます。シンボルまたはモデルが対応していない場合は、SamacSysに直接リクエスト可能です。
