Overview
Description

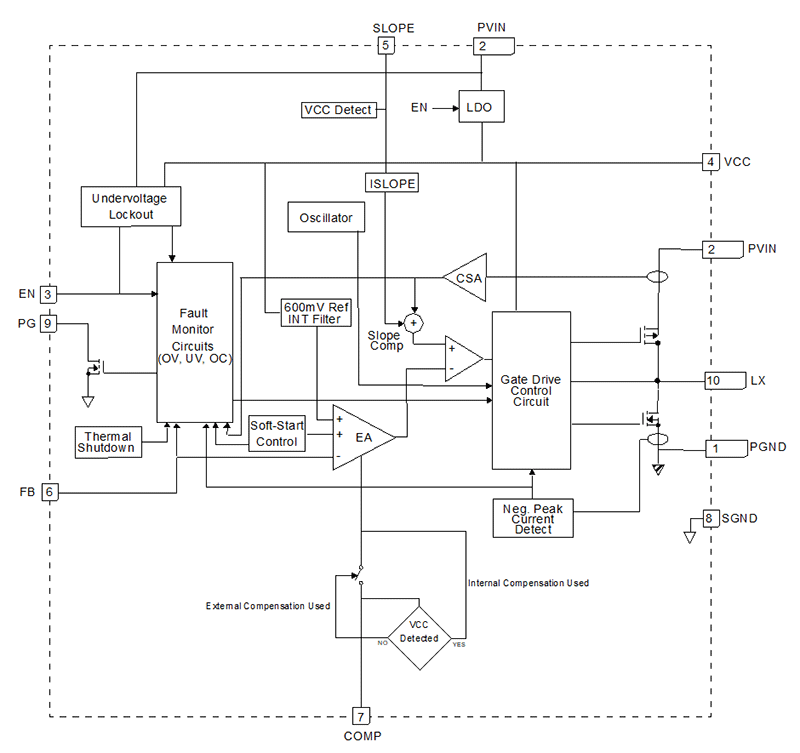

The ISL73006SLH is a radiation hardened point-of-load (POL) buck regulator that provides up to 1A of output current capability with an input voltage ranging from 3V to 18V. The device uses constant frequency peak current mode control architecture for fast loop transient response. The device uses internal compensation or an external Type-II compensation to optimize performance and stabilize the loop. The ISL73006SLH has a default switching frequency of 500kHz.
The ISL73006SLH integrates high-side (P-channel) and low-side (N-channel) power FETs. There are options for external or internal compensation and slope control that can be implemented with a minimum of external components reducing the BOM count and design complexity.
The ISL73006SLH includes a comprehensive suite of operational features and protections, including preset undervoltage, overvoltage, overcurrent protections, power-good, soft-start, and over-temperature.
The ISL73006SLH operates across the temperature range of -55 °C to +125 °C and is available in a 10-lead ceramic dual in-line flat package (CDFP) and die form.
Features
- Qualified to Renesas Rad Hard QML-V Equivalent Screening and QCI Flow (R34TB0001EU)
- All screening and QCI is in accordance with MIL-PRF-38535 Class-V
- Input bias voltage
- 3V to 18V
- Internal or external loop compensation
- 1% reference voltage over-temperature and radiation
- Soft-start, positive and negative overcurrent, over/undervoltage, and over-temperature protections
- High efficiency ~95% from 0.4A to 1A
- Adjustable slope compensation
- TID Rad Hard Assurance (RHA) testing
- LDR (0.01rad(Si)/s): 75krad(Si)
- SEE Characterization
- No DSEE for VIN = 16.5 and 86MeV•cm2/mg
- SEFI <10μm2 at 86MeV•cm2/mg
- SEFI <2.5μm2 on VOUT at 86MeV•cm2/mg
Comparison
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 998 KB | |
| Technical Brief | PDF 340 KB | |
| Report | PDF 920 KB | |
| Report | PDF 704 KB | |
| Report | PDF 952 KB | |
| Application Note | PDF 224 KB | |
6 items
|
||
Design & Development
Software & Tools
Boards & Kits
Evaluation
ISL73006SLHEV1Z
Active
12VIN to 3.3VOUT Radiation Hardened Point-of-Load Regulator Evaluation Board
The ISL73006SLHEV1Z evaluation board provides a quick and easy method to evaluate the ISL73006SLH radiation hardened point-of-load (POL) buck regulator in an internal or external compensation configuration.
The ISL73006SLH buck regulator IC is a small footprint radiation hardened POL designed for...
Recommended Documents:
Demonstration
ISL73006SLHDEMO1Z
Active
5VIN to 1.2VOUT Radiation Hardened Point-of-Load Regulator Mini Demonstration Board
The ISL73006SLHDEMO1Z demonstration board provides a quick and easy method for evaluating the ISL73006SLH radiation hardened point-of-load (POL) buck regulator in the internal compensation configuration.
The ISL73006SLH buck regulator is a small footprint radiation hardened POL designed for...
Recommended Documents:
Demonstration
ISL73006SLHDEMO2Z
Active
12VIN to 3.3VOUT Radiation Hardened Point-of-Load Regulator Mini Demonstration Board
The ISL73006SLHDEMO2Z demonstration board provides a quick and easy method for evaluating the ISL73006SLH radiation hardened point-of-load (POL) buck regulator in the external compensation and slope configuration.
The ISL73006SLH buck regulator is a small footprint radiation hardened POL designed...
Recommended Documents:
Demonstration
ISL73006SLHDEMO3Z
Active
5VIN to -5VOUT Radiation Hardened Point-of-Load Regulator Mini Demonstration Board
The ISL73006SLHDEMO3Z demonstration board provides a quick and easy method for evaluating the ISL73006SLH radiation hardened point-of-load (POL) buck regulator outputting -5V and using the internal compensation and slope configuration.
The ISL73006SLH buck regulator is a small footprint radiation...
Recommended Documents:
