HS-OP470ARHEV1Z

Active

Radiation Hardened, Very Low Noise Quad Operational Amplifier Evaluation Board

Order Now
HS-OP470ARHEV1Z User Guide

Overview

The HS-OP470ARHEV1Z evaluation platform is designed to evaluate the HS-OP470ARH. The evaluation board contains all the circuitry needed to critique the performance of the HS-OP470ARH amplifier. The HS-OP470ARH is a radiation hardened, monolithic quad operational amplifier that provides highly reliable performance in harsh radiation environments. Its excellent noise characteristics coupled with a unique array of dynamic specifications make this amplifier well-suited for a variety of satellite system applications. Dielectrically isolated, bipolar process makes this device immune to single event latch-up.

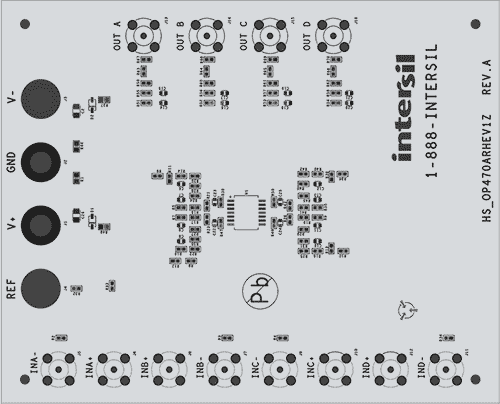

HS-OP470ARHEV1Z Rad Hard Quad Op Amp Eval Board
  • Dual supply operation: ±5V to ±15V
  • Singled-ended or differential input operation with gain (G = 10V/V)
  • External VREF input
  • Banana jack connectors for power supply and VREF inputs
  • BNC connectors for op amp input and output terminals
  • Convenient PCB pads for op amp input/output impedance loading
