Overview
Description

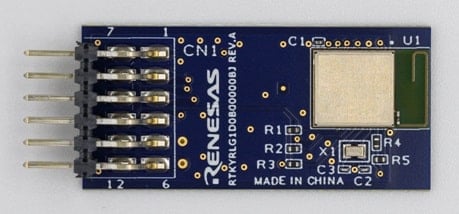

The RL78/G1D BLE Module Expansion Board (RTKYRLG1D0B00000BJ) is an evaluation board with a PmodTM interface that incorporates the RL78/G1D module (RY7011A0000DZ00) for Bluetooth® Low Energy (BLE). It can connect to the RL78/G14 Fast Prototyping Board (RTK5RLG140C00000BJ) and can be used to evaluate BLE functions. Additionally, customers can use the RL78/G1D evaluation board to develop new BLE applications with a BLE system employing the RL78/G1D 16-bit microcontroller (MCU). Use the expansion board together with sensor devices to easily evaluate and develop IoT applications.
Configuration
- RL78/G1D evaluation board and BLE control (GUI) tool
- BLE protocol stack
- Bluetooth Developer Studio (BDS) plugin
- GATTBrowser smartphone app for BLE operation confirmation
Learn more about Renesas' Bluetooth Low Energy solutions.
Features
- Incorporates the RL78/G1D module (RY7011A0000DZ00) for Bluetooth Low Energy
- A small module (8.95 mm x 13.35 mm x 1.7 mm) mounted with the RL78/G1D microcontroller for Bluetooth Low Energy with the lowest level of current consumption in the industry, a 32-MHz crystal resonator for the RF chip, and an antenna
- The module has obtained certificates of compliance with Japan’s Radio Law, the FCC’s module-related standards, IC regulations, CE mark requirements, and Bluetooth SIG certification
Applications
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| QuickConnect Platform QuickConnect platform enables fast prototyping by providing compatible hardware and software building blocks.
|
Software and Hardware Development Tools | Renesas |
1 item
|
||
Sample Code
Sample Code
Filters
|
||
|---|---|---|
| Type | Title | Date Date |
| Sample Code |
ZIP
2.06 MB
日本語
Application:
Consumer Electronics, Industrial
Compiler:
CA78K0R, CC-RL
Function:
Communication Interface
IDE:
CS+ for CA, CX, CS+ for CC, e2 studio
|
|
| Sample Code |
ZIP
16.22 MB
日本語
Application:
Consumer Electronics, Industrial
Compiler:
CC-RX
Function:
Communication Interface
IDE:
e2 studio
|
|
| Sample Code |
ZIP
2.71 MB
日本語
Application:
Consumer Electronics, Industrial
Compiler:
CA78K0R, CC-RL
Function:
Communication Interface
IDE:
CS+ for CA, CX, CS+ for CC, e2 studio
|
|
| Sample Code |
ZIP
1.39 MB
日本語
Application:
Consumer Electronics, Industrial
Compiler:
CC-RL
Function:
Communication Interface
IDE:
e2 studio
|
|
| Sample Code |
ZIP
3.32 MB
日本語
Application:
Consumer Electronics, Industrial
Compiler:
CC-RL
Function:
Communication Interface
IDE:
e2 studio
|
|
| Sample Code |
[Software=Bluetooth® low energy Protocol Stack|Ver.1.21],[Toolchains=CC-RL|V1.03.00]
ZIP
5.55 MB
日本語
Application:
Consumer Electronics, Industrial
Compiler:
CC-RL
Function:
Communication Interface
IDE:
CS+ for CC, e2 studio
|
|
| Sample Code | ZIP 2.97 MB Compiler: CC-RL IDE: CS+, e2 studio | |
7 items
|
||
Related Boards & Kits
RL78/G14 Fast Prototyping Board (RL78/G14 FPB)
The RL78/G14 Fast Prototyping Board comes equipped with a high-performance RL78/G14 microcontroller and is an evaluation board specialized for prototype development for a variety of applications. It has a built-in emulator circuit that is equivalent to an E2 emulator Lite so you can write/debug...
