843081I-01

Obsolete

FemtoClock Crystal-to-3.3V,2.5V LVPECL Clock Multiplier

843081I-01 Datasheet
NOTICE - The following device(s) are recommended alternatives:
843071I - FemtoClock Crystal-to-3.3V,2.5V LVPECL Clock Generator

Overview

The 843081I-01 is an Ethernet clock multiplier. The 843081I-01 accepts a crystal reference of 19.6MHz - 28MHz. The 843081I-01 has excellent 1ps or lower phase jitter performance, over the 1.875MHz - 20MHz integration range. The 843081I-01 is packaged in a small 8-pin TSSOP, making it ideal for use in systems with limited board space.

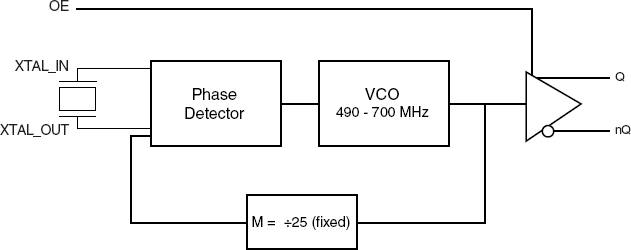

843081I-01 - Block Diagram
843081I-01 - Pinout
843081I-01 - Block Diagram
843081I-01 - Pinout
  • One differential LVPECL output
  • One crystal oscillator interface: 19.6MHz - 28MHz
  • Output frequency range: 490MHz - 700MHz
  • VCO range: 490MHz - 700MHz
  • RMS phase jitter @ 625MHz using a 25MHz reference (1.875MHz - 20MHz): 0.32ps (typical)
  • 3.3V or 2.5V operating supply
  • -40°C to 85°C ambient operating temperature
  • Available in lead-free RoHS compliant package

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.

Explore ECAD Models
Diagram of ECAD Models

Models
Type Title Date
Model - IBIS
843081I_01 IBIS Model
ZIP 54 KB
