High-Efficiency, High-Performance, High-Power NFC WLC Frontend Solution with Multi-Protocol Reader Function
Jump to Page Section:
Overview
Description
The PTX130W is a powerful and efficient NFC transmitter system-on-chip for NFC wireless charging applications alongside data communication. PTX130W features improved key performance parameters such as output power and RX sensitivity (-80dBc ). While eliminating EMC filter and matching components the PTX130W enables simple integration and compact design without the complexity associated with existing solutions (dual resonating circuits composed by EMC filter and antenna). The superior RF performance of PTX130W enables small antenna design, fast charging and allows flexible placement of Poller and Listener antennas.
Features
- Allows harvesting up to 1W on the NFC WLC Listener
- No EMC filter requirement due to sinewave output driver and Direct Antenna Connection (DiRAC)
- Automated Power Control Loop for system efficiency optimization
- Output power regulation with 1% step
- NFC Forum WLC Poller functionalities
- NFC Data exchange with
- Impedance change detection for FOD
- On-Chip processing of time critical commands
Applications
Applications
- Smart rings
- Smart glasses
- Fitness trackers
- Smart watches
- Medical devices
- Headsets
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 691 KB | Datasheet | ||
| PDF 622 KB | Product Brief | ||
| PDF 7.04 MB | Application Note | ||
| PDF 1.64 MB | Application Note | ||
| PDF 2.85 MB | Application Note | ||
| PDF 1.19 MB | Application Note | ||
| PDF 1.43 MB | Manual - Development Tools | ||
| PDF 1.50 MB | Overview | ||
| PDF 330 KB | Overview | ||
| PDF 6.55 MB | Quick Start Guide | ||
10 items
|
|||
Design & Development
Boards & Kits
Boards & Kits

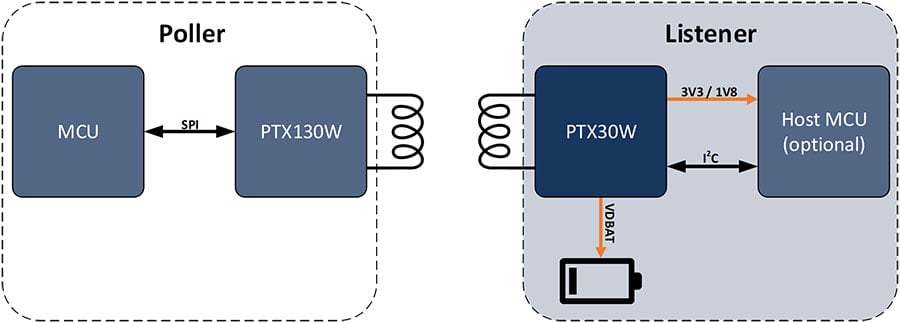

PTX130W/30W NFC Wireless Charging (WLC) Evaluation Kit
The PTX130W-30W-EVK wireless charging (WLC) evaluation kit combines the high-efficiency, high-power PTX130W NFC WLC IC with the PTX30W fully integrated, high-power...
