Mass Flow Sensor Evaluation Kit
The FS2012-EVK mass flow sensor evaluation kit, featuring the FS2012 high performance and fully calibrated mass flow rate module for non-corrosive gas or liquid flow....
Gas or Liquid Flow Sensor Module
Jump to Page Section:
Overview
Description

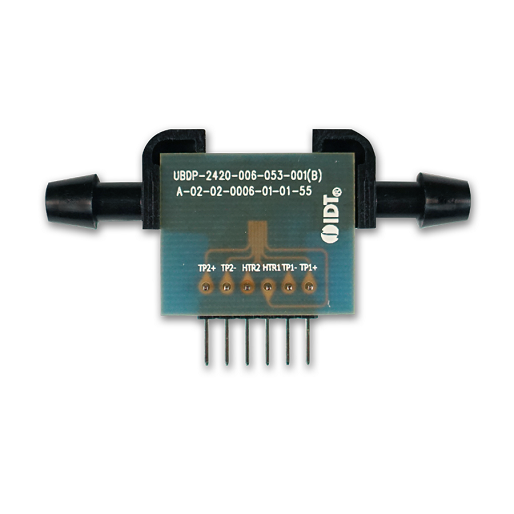

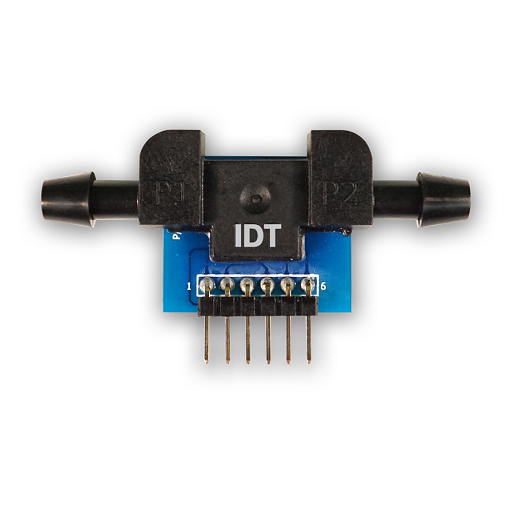

The FS1012 comprise a MEMS flow sensor mounted on a circuit board with a flow housing. It features a 6-pin standard header connected directly to the MEMS flow sensor.
The FS1012 is capable of measuring a non-corrosive gas or liquid medium. The sensor utilizes thermopile sensing, which provides an excellent signal-to-noise ratio and is ideal for applications requiring low power. It is highly sensitive at low flow rates with a very fast response time.

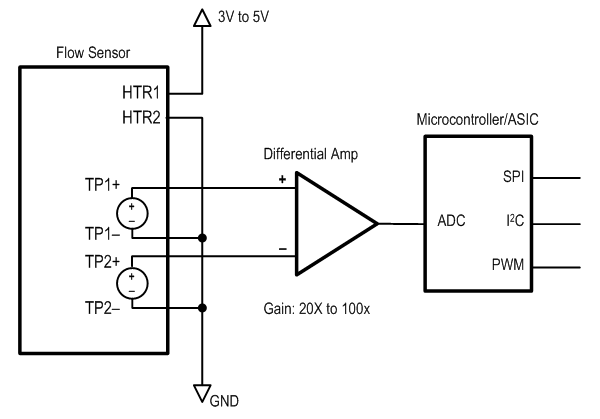

The set of upstream and downstream thermopiles can be used independently in a single-ended circuit or connected together in a differential configuration.
Features
- Measures gas or liquid mediums
- Robust solid isolation technology
- No cavity in MEMS sensor to cause clogging
- Resistant to vibration and pressure shock
- Low power application
- Fast response time
- Millivolt output
- Heater supply voltage: 3V to 5V DC
- Operating temperature range: 0°C to +85°C
Applications
Documentation
|
|
Date | |
|---|---|---|
| PDF 174 KB | Datasheet | |
| PDF 135 KB | Application Note | |
| PDF 1.29 MB | End Of Life Notice | |
| PDF 148 KB | Product Change Notice | |
| PDF 236 KB | Product Brief | |
| PDF 478 KB | White Paper | |
6 items
|
||
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| Liquid, 0 to 0.5 SLPM | 0 to 85°C | ||
| Liquid, 0 to 1.0 SLPM | 0 to 85°C | ||
| Gas, 0 to 2 SLPM | 0 to 85°C | ||
| Gas, 0 to 10 SLPM | 0 to 85°C |
